1. Introduction
This F@ST 3284u Cable Gateway is an Embedded Media Terminal Adapter (EMTA) which is CableLabs DOCSIS 3.0 and
PacketCable 1.5 compliant. It provides high-speed Internet access as well as cost-effective, toll-quality telephone voice and
fax/modem services over residential, commercial, and education subscribers on public and private networks via an existing
CATV infrastructure. F@ST 3284u offers high-speed LAN connectivity with 4 Gigabit Ethernet ports and one integrated
Wireless LAN access point compatible with IEEE 802.11a/b/g/n. The Wireless access point is operating on 2.4GHz band.
Package Contents
F@S T3284u Gateway
Ethernet Cable (RJ45)
Phone Cable (RJ11)
Quick Start Guide
Power Supply Unit

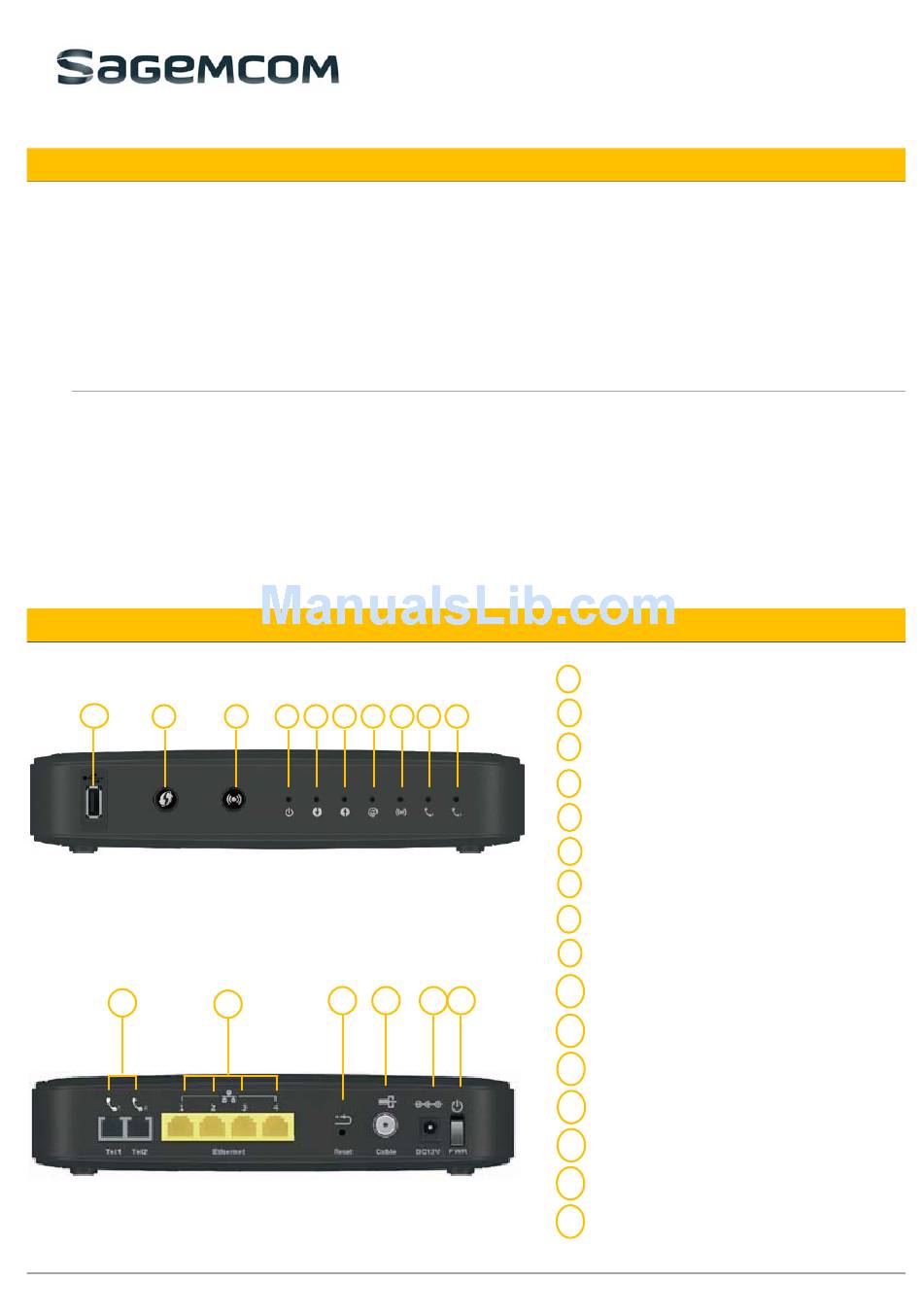

2. Hardware Connection
16
8
10
9
1 2
3
4
12
13
11
F
@
S
T
3
2
8
F
@
S
T
3
2
8
x1
x1
x1
x1
x1
1
2
5 6
7
3
4
5
6
7
8
9
10
14 15
11
12
13
14
15
16
Page 1
4
u
4
User Manual
LED Power ON/OFF
LED Downstream - indicate receiving RF DS traffic
LED Upstream - indicate receiving RF US traffic
LED Internet ON/OFF
LED WiFi ON/OFF
LED Telephone Line 1
LED Telephone Line 2
WPS button with Blue LED.
Wireless ON/OFF button
RJ-11 Telephone port lines 1 and 2
Ethernet 10/100/1000 BaseT RJ-45 connector
Restore To Factory Defaults button
RF coaxial F-connector
Power plug
Power switch ON/OFF
USB port
Advertisement
Table of Contents
Related Manuals for SAGEMCOM F@ST 3284u
Summary of Contents for SAGEMCOM F@ST 3284u
- Page 1 User Manual 1. Introduction This F@ST 3284u Cable Gateway is an Embedded Media Terminal Adapter (EMTA) which is CableLabs DOCSIS 3.0 and PacketCable 1.5 compliant. It provides high-speed Internet access as well as cost-effective, toll-quality telephone voice and fax/modem services over residential, commercial, and education subscribers on public and private networks via an existing CATV infrastructure.
-
Page 2: Wall Mounting
Wall Mounting The number of the screw: 2 pcs Direction for wall mounting: LED panel upward. Dimension for the screw: 5~7.5 mm There are 2 slots on the underside of the modem that can be used for wall mounting. You will need 2 suitable screws which screw diameter would be 5~7.5 mm to wall mount the Cable Gateway. Note: When wall mounting the unit, ensure that it is within reach of the power outlet. - Page 3 3. Connecting the F@ST3284 Gateway to Your Computer Installation Procedure for Ethernet Interface Follow the steps below for proper installation: Make sure your computer meets the system requirements. Connect a coaxial cable to the wall plug Connect a coaxial cable to the CABLE connector on the F@ST3284u and screw it at the bottom manually (do not force). Note: To speed up the registration process of F@ST3284u , the coaxial cable should be connected to the gateway prior to the power connector.
- Page 4 4. Wireless Connection Step 1 Step 3 • Under the gateway, on the o In this new Window, search for the SSID value and select label, note the reference of SSID and WPA wireless it by double clicking on it. password.
- Page 5 6. Precautions and Warnings Before connecting and disconnecting cables, stop using the F@ST3284u, and then disconnect it from t h e power supply. Ensure that your hands are dry during operation. Keep the F@ST3284u far from sources of heat and fire, such as a heater or a candle. Do not block the openings on the F@ST3284u with any object.
- Page 6 Safety and Certifications Important Information about the Sagemcom F@ST3284u: Installation and Safe Usage Instructions: 1. Place the router in a horizontal orientation on a flat surface. 2. Connect the manufacturer supplied AC to DC power adapter. The F@ST3284u requires the use of a 12 VDC, 2000 mA power adapter.
- Page 7 Modifications: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC Responsible Party: Sagemcom USA 14651 N. Dallas Parkway Suite 900 Dallas, TX 75254 Phone: 972-674-4100...
- Page 8 This device produces radio frequency energy in the 2.4GHz spectrum. The antenna must be positioned to keep a minimum distance of 20cm (0.65ft) from the radiating element to any nearby person. Issued by Sagemcom Broadband SAS Sagemcom 250, route de l'Empereur - 92500 RUEIL MALMAISON FRANCE ©...
- Page 9 Safety and Certifications Wall Mounting (Optional) While many users place their F@ST3284u product on their desk, it can be optionally wall mounted. The number of the screw: 2 pcs. Direction for wall mounting: LED panel upward. Dimension for the screw: 5~7.5 mm. There are 2 slots on the underside of the modem that can be used for wall mounting.
- Page 10 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 11 Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Note: The country code selection is for non-US model only and is not available to all US model.
