INSTALLATION MANUAL
Sundirect Infrared panel heaters
Model: BC004/BC005

Ceiling mounting installation manual for PE-Plus series

Note: The kit supplied in the package is designed for mounting on a solid ceiling. If mounted onto other types of
ceilings, you will need appropriate fixings (not supplied). Please make sure the ceiling is safe to mount. We highly
recommend to have the panel installed by a qualified electrician or installer authorized by Sundirect.
BC004 is designed for model: PE350-Plus/PE540-Plus/PE700-Plus/PE1000-Plus
BC005 is designed for model: PE380-Plus
1
Ceiling
2
Ceiling
4
Ceiling
Sundirect Technology Ltd.
info@sundirect-heater.com
www.sundirect-heater.com
3
Ceiling
5
Ceiling
Sundirect and the Sundirect Logo are registered Trademarks of Sundirect Technology Ltd.
© Sundirect Technology Ltd. All rights reserved.

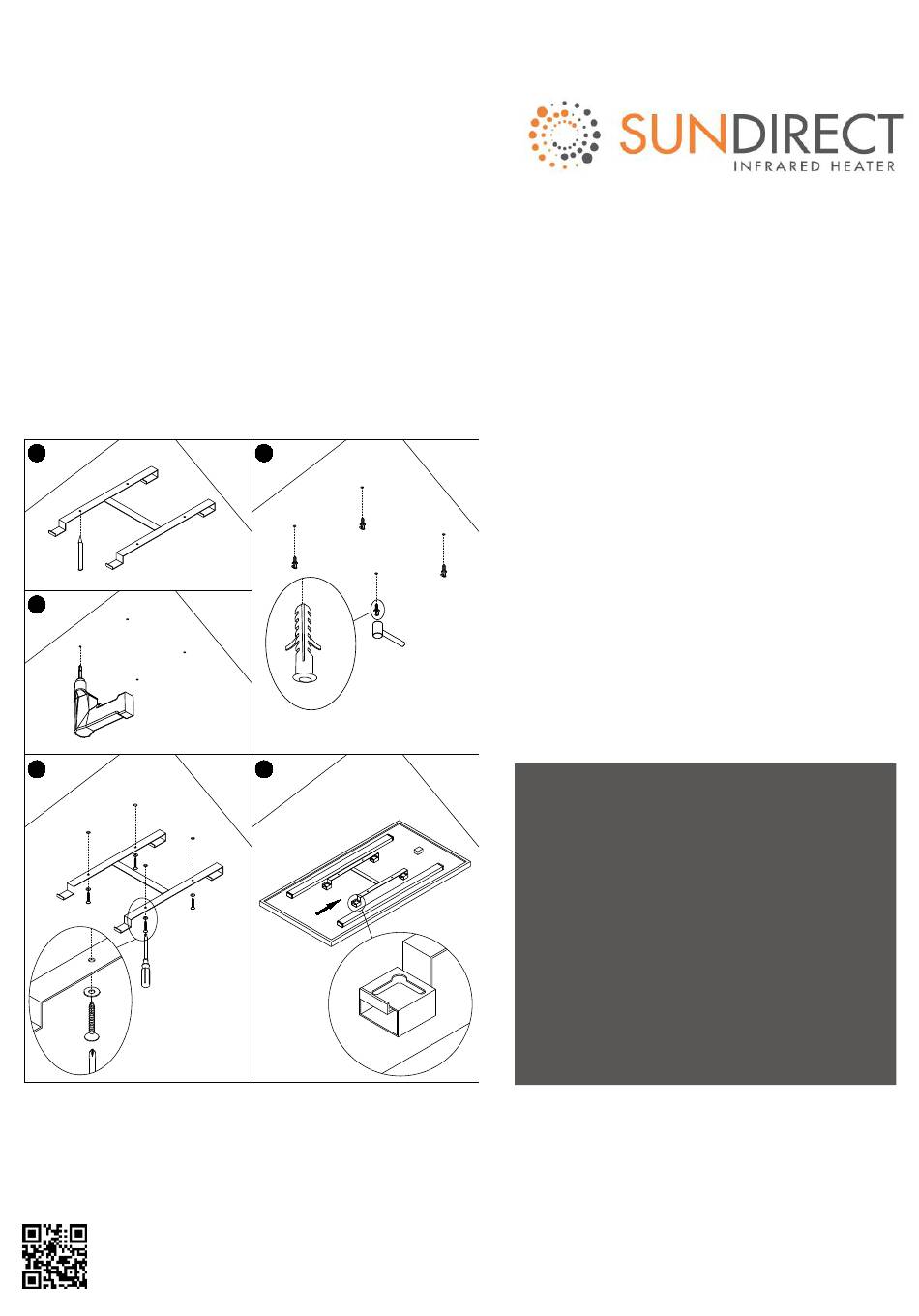

Step1. Use the "H" shape bracket to mark the
holes on the ceiling.
Step2. Drill holes using a 8mm drill.
Step3. Insert the dowels into the holes.
Step4. Screw the screws into the dowels
through the holes on the "H" shape bracket.
Step5. Mount the panel on the bracket, make
sure it's secured.
