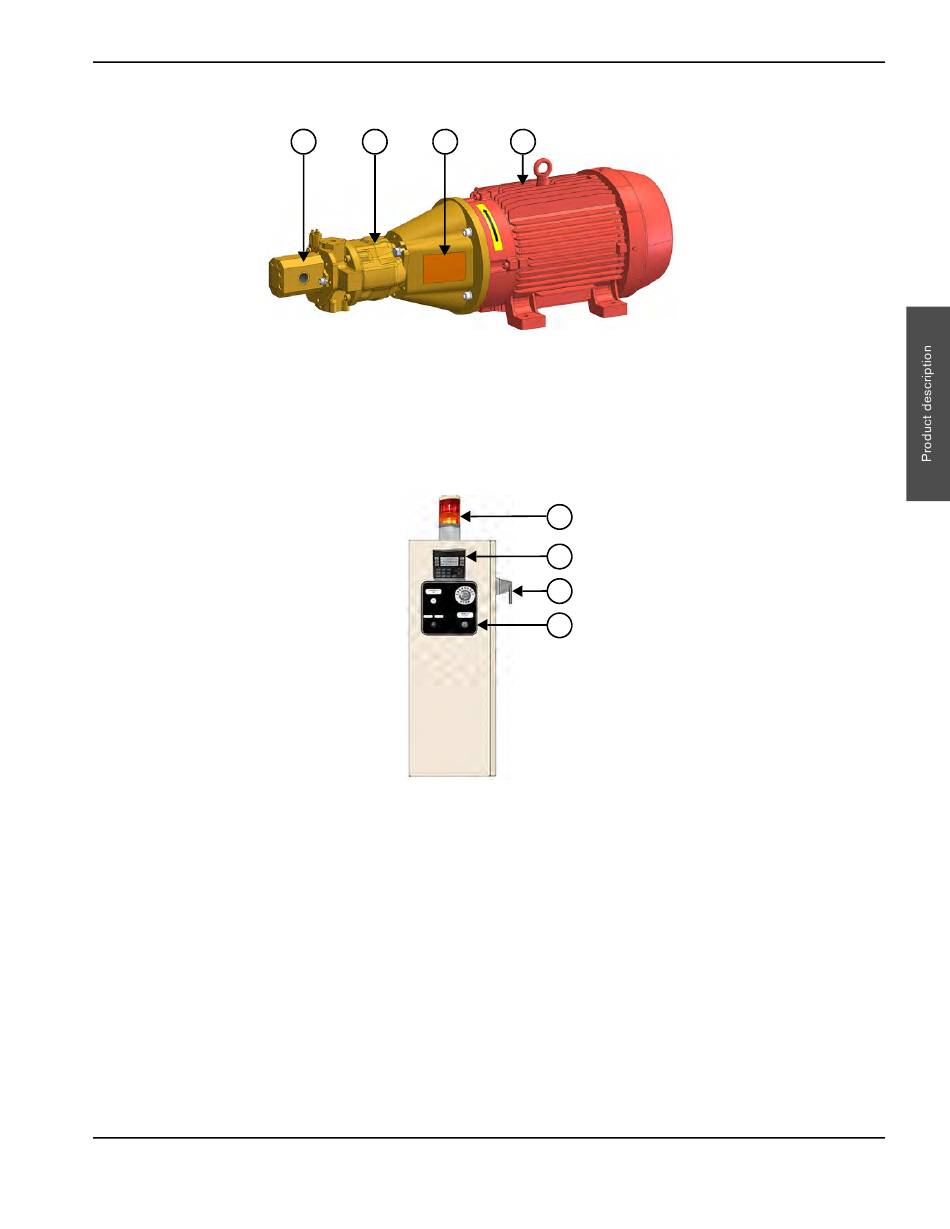

Primary motor
1 Gear pump
2 Primary hydraulic pump
The primary motor drives the primary hydraulic pump that moves hydraulic fluid through the intensifier and a gear pump
that moves hydraulic fluid through the cooling loop.
Electrical enclosure
1 Stack light
2 Operator interface
Status indicators, pump control parts, and the primary breaker disconnect lever are on the outside of the electrical
enclosure. The motor starter, the thermal overload relay, and the system breakers are inside the enclosure.
The stack light illuminates when the system detects a warning or fault condition.
The operator interface is a programmable controller for the pump and the intensifier. A series of screens permits the
operator to turn the pump on and off and to change some pump settings. The primary screen shows information about
warnings and faults.
The primary breaker disconnect lever disconnects electricity to the pump motor and controls.
The operation panel turns the control circuit inside the pump on and off and switches between local and remote pump
operation.
