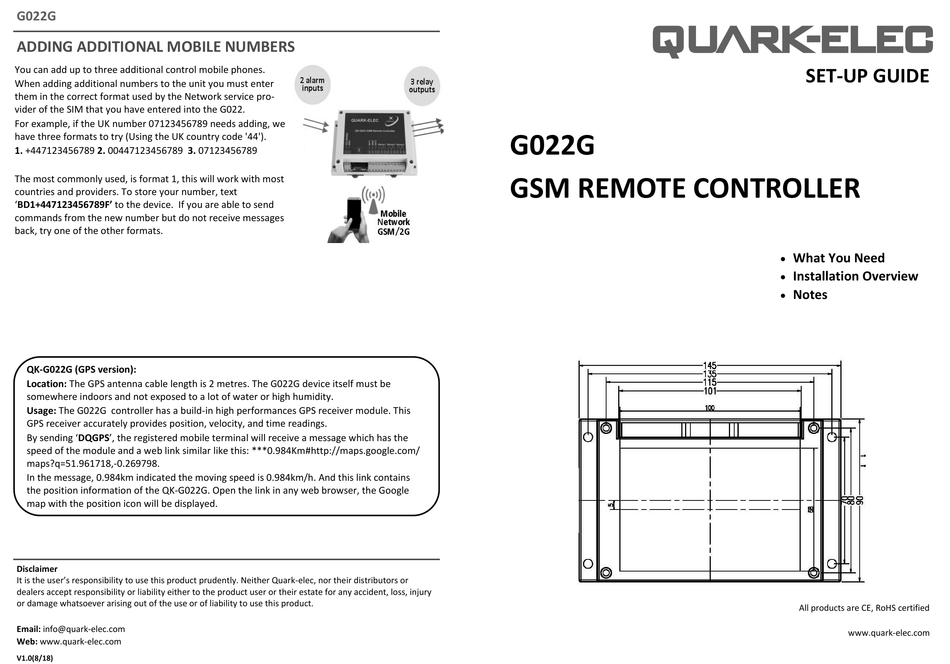

Quark-Elec G022G Setup Manual

G022G
ADDING ADDITIONAL MOBILE NUMBERS
You can add up to three additional control mobile phones.
When adding additional numbers to the unit you must enter
them in the correct format used by the Network service pro-
vider of the SIM that you have entered into the G022.
For example, if the UK number 07123456789 needs adding, we
have three formats to try (Using the UK country code '44').
1. +447123456789 2. 00447123456789 3. 07123456789
The most commonly used, is format 1, this will work with most
countries and providers. To store your number, text
'BD1+447123456789F' to the device. If you are able to send
commands from the new number but do not receive messages
back, try one of the other formats.
QK-G022G (GPS version):
Location: The GPS antenna cable length is 2 metres. The G022G device itself must be
somewhere indoors and not exposed to a lot of water or high humidity.
Usage: The G022G controller has a build-in high performances GPS receiver module. This
GPS receiver accurately provides position, velocity, and time readings.
By sending 'DQGPS', the registered mobile terminal will receive a message which has the
speed of the module and a web link similar like this: ***0.984Km#http://maps.google.com/
maps?q=51.961718,-0.269798.
In the message, 0.984km indicated the moving speed is 0.984km/h. And this link contains
the position information of the QK-G022G. Open the link in any web browser, the Google
map with the position icon will be displayed.
Disclaimer
It is the user's responsibility to use this product prudently. Neither Quark-elec, nor their distributors or
dealers accept responsibility or liability either to the product user or their estate for any accident, loss, injury
or damage whatsoever arising out of the use or of liability to use this product.
Email: info@quark-elec.com
Web: www.quark-elec.com
V1.0(8/18)
G022G
GSM REMOTE CONTROLLER
SET-UP GUIDE

What You Need

Installation Overview

Notes
All products are CE, RoHS certified
