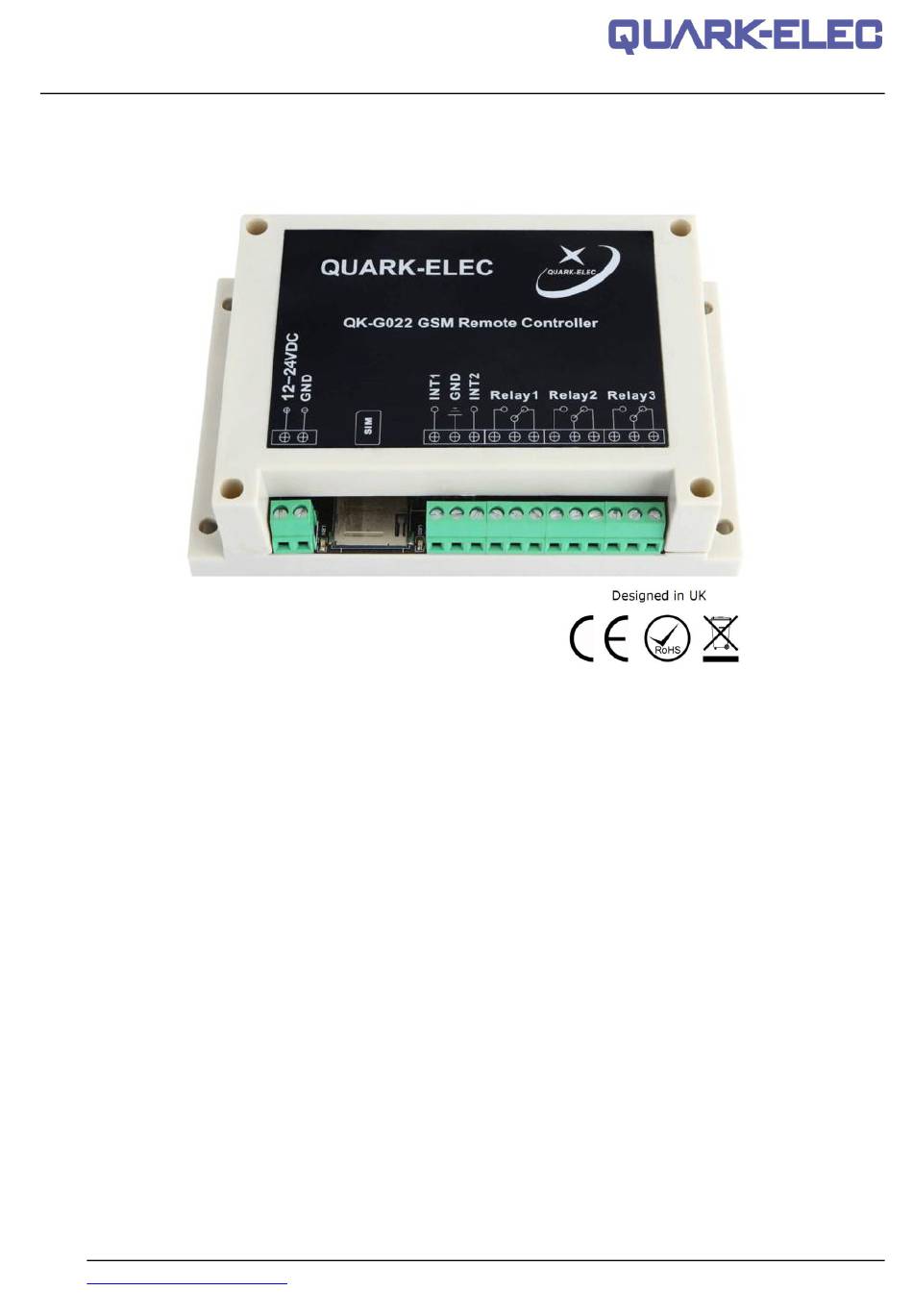

Quark-elec Manual

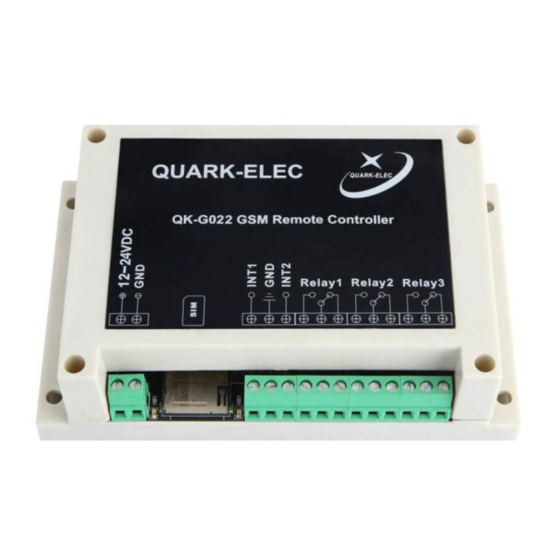

QK-G021/22 GSM Remote Controller Manual
Features
Remote monitoring and control by mobile phone GSM SMS message
Connects to up to 2 alarm inputs and 3 Relay outputs
Automatic alarm by SMS message when alarm input is triggered
Status request and response by SMS
Remote control of 3 Relay outputs by SMS message
Automated control of 2 Relay outputs by SMS message (activated by alarm input)
Scheduled control of 2 Relay outputs by SMS message
Remote manual override
Android and iOS APP interface
Monitor and Control through text message input or phone APP
Up to 4 mobile phones can monitor and control through each unit
In-built clock for programming the switch state
Easy to install and configure via SMS or APP (no PC required)
Compatible with all major 2G SIM networks (Tri-band GSM for use in Europe & USA)
Other specialized units available:
G022G also includes GPS receiver allowing you to track the location of the unit
G022P also includes wireless passive infrared (PIR) motion detector as an additional alarm input
https://www.quark-elec.com
V2
1 of 31
2018
Advertisement
Table of Contents
Related Manuals for Quark-Elec QK-G022
Summary of Contents for Quark-Elec QK-G022
- Page 1 Quark-elec Manual QK-G021/22 GSM Remote Controller Manual Features Remote monitoring and control by mobile phone GSM SMS message Connects to up to 2 alarm inputs and 3 Relay outputs Automatic alarm by SMS message when alarm input is triggered ...
-
Page 2: Table Of Contents
Quark-elec Manual Contents Set up overview..................................3 Introduction....................................4 Hardware....................................5 Enclosure....................................6 Preparing SIM card................................. 7 5.1. Insert SIM into the SIM card slot..........................7 Configuration....................................8 Status LED’s.....................................8 Alarm function and digital connection..........................9 Relay working modes................................10 9.1. Normal open/ normal closed wiring options......................10 9.2. -
Page 3: Set Up Overview
(you can check by putting the SIM card in a mobile phone) Installation: 1. Download and install the app for mobile phones. https://www.quark-elec.com/downloads/apps/ 2. Select G021/22 location: location must be indoors and not exposed to water or high humidity. -
Page 4: Introduction
Quark-elec Manual Introduction The G021/22 series remote controller is a versatile device which can be connected to many electronic devices in homes, offices, factories or wherever required. The standard G021/22 includes two digital alarm inputs, three independent relay switches. It allows operators to control and monitor remote equipment or machines using SMS (Short Message Service) via the GSM network. -
Page 5: Hardware
Quark-elec Manual Hardware Figure 2: General view of the control module (V1.9) Figure 3: G021 mechanical drawing (V1.5) 5 of 31 https://www.quark-elec.com 2018... -
Page 6: Enclosure
Quark-elec Manual Enclosure The enclosure is made of IP56 Insulation Class 2 plastic. External dimensions: 145 x 90 x 41 Figure 4: GK-G022 (with enclosure) Figure 5: Enclosure drawing. Measurements in mm 6 of 31 https://www.quark-elec.com 2018... -
Page 7: Preparing Sim Card
Quark-elec Manual Preparing SIM card Please ensure: The SIM must operate on the GSM (2G) network. Most network providers provide 2G cover, check with your supplier. There is credit on the SIM (we recommend automatic top-ups) The SIM is not PIN protected The SIM is set to disable voicemail ... -
Page 8: Configuration
Quark-elec Manual Configuration The following steps are required to configure G021/22 for first time use: Insert the SIM card into controller box Power up Send ‘888888’ as SMS to the G021/22 controller. If successful, the user will receive the message ‘Your phone has been registered’. -
Page 9: Alarm Function And Digital Connection
Quark-elec Manual Alarm function and digital connection G021/22 has two external alarm input connectors and various inputs can be connected to them. For example, door/windows sensors, smoke alarms, carbon dioxide detectors, motion sensors, thermostats, temperature/wind detectors, and moisture detectors. Using these sensors/detectors, G021/22 can be set up as a protection/alarm and response system. -
Page 10: Relay Working Modes
Quark-elec Manual Relay working modes 9.1. Normal open/ normal closed wiring options The G021/22 is equipped with three digital output relays for connection to equipment to be controlled. The relays can be set up in normal open and normal closed positions. This gives the customer the advantage of having it set as a failsafe if there is a power loss or for timing the relay to open or close with delays. -
Page 11: Self-Lock Vs. Latching Mode
Quark-elec Manual 9.3. Self-lock vs. latching mode The G021/22 allows for two different working modes; self-lock control and latching control. Self-lock allows for the usual function of the relay where a command from the operator or the device to change is needed. If input from an alarm then the relay will stay locked on until the command “EXTRT”... -
Page 12: Delay Time Setting On Latching Mode
Quark-elec Manual 9.4. Delay time setting on latching mode Working in latching mode, operators can configure G021/22 with different delay times for Relay 1 and Relay 2 by setting the delay time jumpers. Delay time settings for Relay 1 and Relay 2... -
Page 13: App
Quark-elec Manual 10. APP The G021/22 APP provides a touch sensitive, user friendly interface. The app will write the text messages for you and send them from your mobile for operators to control G021/22. The app also allows for up to two G021/22 devices to be controlled from a single mobile operator. -
Page 14: Setup
Quark-elec Manual 10.1. Setup After installation, on opening the APP for the first time, users will see the following page for the login process. This login page allows for users to input up to two devices and control them separately:... -
Page 15: Set Qk Controller Sim Number
Quark-elec Manual 10.2. Set QK controller SIM number Input the number of the SIM card which is inserted in G021/22. All command SMS messages will be sent to this number via the APP. Figure 13: Login details successful Once the SIM card number has been stored, the APP will reply with a successful message shown below the login button. -
Page 16: Register Sim Cards
Quark-elec Manual 10.3. Register SIM cards G021/22 allows one mobile phone to function as the main terminal and up to 3 additional phones to function as control terminals. The following interface allows the operator to register, delete and check the SIM card numbers:... -
Page 17: Setting The Clock On The Qk Controller
Quark-elec Manual 10.4. Setting the clock on the QK controller G021/22 can automatically execute actions at the time set by the operator. To do this, the real time clock on the QK controller should be set. This page allows the operator to check and set the time on G021/22. When using this function, the CR2032 battery should be used on the module. -
Page 18: Check Relay Working Mode
Quark-elec Manual 10.5. Check relay working mode G021/22 has three individual relays which support two working modes, namely self-lock and latching control. When working in latching mode, the relay takes active action for a few seconds (depending on the time setting on the jumpers on the board.) and then reverts to normal status. - Page 19 Quark-elec Manual G021/22 can also report the relay working status via SMS to the operators. Figure 19: Check relay working status 19 of 31 https://www.quark-elec.com 2018...
-
Page 20: Rename Control Terminals
Quark-elec Manual 10.6. Rename control terminals The control terminals can be renamed as a meaningful name in APP. Figure 20: Rename control terminals 20 of 31 https://www.quark-elec.com 2018... -
Page 21: Control Panel
Quark-elec Manual 10.7. Control panel The control panel provides the main operating interface for turning relays on and off and setting timers. Figure 21: Control panel interface for relay The Radio frequency side is for the radio frequency plugs. This page allows them to be turned on and off via the app (RF plug sockets have been discontinued). -
Page 22: Track And Trace
Quark-elec Manual 10.8. Track and trace The track and trace function allows for the G022G device to be located using Google maps. The speed and the position information can also be checked on APP for G022G variant (with GPS receiver). -
Page 23: Command And Response Sms
Quark-elec Manual 11. Command and response SMS Remember that all SMS text commands must always be sent using CAPITAL letters. Do not add spaces or any other characters. Function Command Note Register SIM cards Register main SIM card 888888 Register the main mobile terminal with G021 module by sending ‘888888’... - Page 24 Quark-elec Manual RMODE Check relay working G021/22 will reply with the relay working mode mode information in the following format: ‘MMMM1MMMM2’, where MMMM could be INCH or SELF. INCH refers to Latching control mode (relay will act for 3 seconds and then revert to the normal position), and SELF refers to Self-lock mode.
- Page 25 Quark-elec Manual hhmmss is the Switch OFF reply to operator if the setting successful. time. Check the current setting RELAYnTIMER For example, by sending “RELAY2TIMER”, of the timer n=1, Relay 1 the timer setting on reply 2 will be reply to n=2, Relay 2 operator.
-
Page 26: Specification
9 V - 245 V Rated voltage on relay < 2000 W RF main socket power rating For more technical information and enquiries please go to the Quark-elec forum: https://quark-elec.com/forum/ info@quark-elec.com For sales and purchasing information, please email us at: 26 of 31 https://www.quark-elec.com... -
Page 27: Specialized Units
Quark-elec Manual 13. Specialized units 13.1. Wireless PIR detector (G022P variant) G022P series controller has a 433 MHz RF receiver module. It can pair with one wireless PIR (passive Infrared sensor motion detector, also called a PIR sensor). Please note that G022P cannot pair with any RF mains sockets. -
Page 28: Gps Receiver (G022G Variant)
Quark-elec Manual To confirm this, restart G022P and hold the wireless PIR detector in the hand (facing the sensor side to the operator’s body). After about 10 seconds, a click sound from G022P will be heard. This comes from the Relay3 action triggered by the PIR detector. - Page 29 Quark-elec Manual For more technical information and enquiries please go to the Quark-elec forum: https://quark-elec.com/forum/for info@quark-elec.com sales and purchasing information, please email us at: 29 of 31 https://www.quark-elec.com 2018...
-
Page 30: Order Options
15. Limited warranty and notices Quark-elec warrants this product to be free from defects in materials and manufacture for one year from the date of purchase. Quark-elec will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and labour. - Page 31 Quark-elec Manual For more technical information and enquiries please go to the Quark-elec forum: https://quark-elec.com/forum/ For sales and purchasing information, please email us at: info@quark-elec.com 31 of 31 https://www.quark-elec.com 2018...
