Quark-Elec QK-G033 Manual

Gsm/3g sms remote controller
Hide thumbs Also See for QK-G033:
Table of Contents

Advertisement

Quick Links

Download this manual

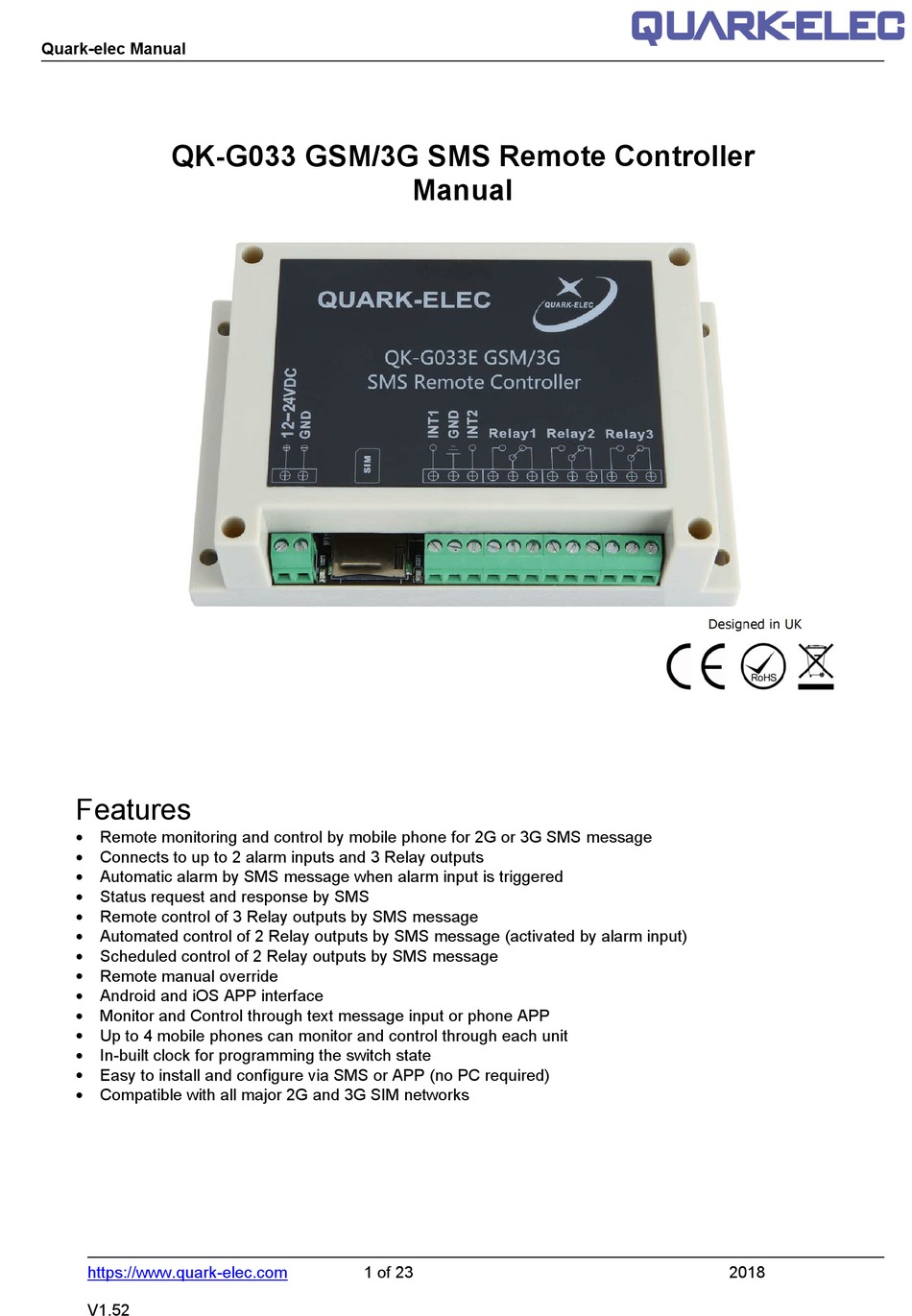

Quark-elec Manual
QK-G033 GSM/3G SMS Remote Controller
Features
 Remote monitoring and control by mobile phone for 2G or 3G SMS message
 Connects to up to 2 alarm inputs and 3 Relay outputs
 Automatic alarm by SMS message when alarm input is triggered
 Status request and response by SMS
 Remote control of 3 Relay outputs by SMS message
 Automated control of 2 Relay outputs by SMS message (activated by alarm input)
 Scheduled control of 2 Relay outputs by SMS message
 Remote manual override
 Android and iOS APP interface
 Monitor and Control through text message input or phone APP
 Up to 4 mobile phones can monitor and control through each unit
 In-built clock for programming the switch state
 Easy to install and configure via SMS or APP (no PC required)
 Compatible with all major 2G and 3G SIM networks
https://www.quark-elec.com
V1.52
Manual
1 of 23
2018

Advertisement

Table of Contents
loading

Related Manuals for Quark-Elec QK-G033

Summary of Contents for Quark-Elec QK-G033

  • Page 1 Quark-elec Manual QK-G033 GSM/3G SMS Remote Controller Manual Features  Remote monitoring and control by mobile phone for 2G or 3G SMS message  Connects to up to 2 alarm inputs and 3 Relay outputs  Automatic alarm by SMS message when alarm input is triggered ...

  • Page 2: Table Of Contents

    Quark-elec Manual Contents Contents....................................2 Set up overview..................................3 Introduction....................................4 Enclosure....................................5 Preparing SIM card................................. 6 5.1. Insert SIM into the SIM card slot..........................6 Configuration....................................7 Status LED’s.....................................7 Alarm function and digital connection..........................8 Relay working modes................................9 9.1. Normal open/ normal closed wiring options......................9 9.2.

  • Page 3: Set Up Overview

    (you can check by putting the SIM card in a mobile phone) Installation: 1. Download and install the app for mobile phones. https://www.quark-elec.com/downloads/apps/ 2. Select G033 location: location must be indoors and not exposed to water or high humidity. 3. Connect the relay output (if required): check relay setup for whether you want relays in normal open (NR) or normal closed (NC) position.

  • Page 4: Introduction

    Quark-elec Manual Introduction The G033 series remote controller is a versatile device which can be connected to many electronic devices in homes, offices, factories or wherever required. The standard G033 includes two digital alarm inputs, three independent relay switches. It allows operators to control and monitor remote equipment or machines using SMS (Short Message Service) via the 3G network.

  • Page 5: Enclosure

    Quark-elec Manual Enclosure The enclosure is made of IP56 Insulation Class 2 plastic. External dimensions: 145 x 90 x 41 mm. Figure 2: GK-G033E (European version) Figure 3: Enclosure drawing. Measurements in mm 5 of 23 https://www.quark-elec.com 2018 V1.52...

  • Page 6: Preparing Sim Card

    Quark-elec Manual Preparing SIM card Please ensure:  The SIM must operate on the 2G or 3G network. Most network providers provide 2Gor 3G cover, check with your supplier.  There is credit on the SIM (we recommend automatic top-ups) ...

  • Page 7: Configuration

    Quark-elec Manual 6. Configuration The following steps are required to configure G033 for first time use:  Insert the SIM card into controller box  Power up  Send ‘88888888’ as SMS to the G033 controller. If successful, the user will receive the message ‘Your phone has been registered’.

  • Page 8: Alarm Function And Digital Connection

    Quark-elec Manual Alarm function and digital connection G033 has two external alarm input connectors and various inputs can be connected to them. For example, door/windows sensors, smoke alarms, carbon dioxide detectors, motion sensors, thermostats, temperature/wind detectors, and moisture detectors. Using these sensors/detectors, G033 can be set up as a protection/alarm and response system.

  • Page 9: Relay Working Modes

    Quark-elec Manual Relay working modes 9.1. Normal open/ normal closed wiring options The G033 is equipped with three digital output relays for connection to equipment to be controlled. The relays can be set up in normal open and normal closed positions. This gives the customer the advantage of having it set as a failsafe if there is a power loss or for timing the relay to open or close with delays.

  • Page 10: Self-Lock Vs. Latching Mode

    Quark-elec Manual 9.3. Self-lock vs. latching mode The G033 allows for two different working modes; self-lock control and latching control. Self-lock allows for the usual function of the relay where a command from the operator or the device to change is needed. If input from an alarm then the relay will stay locked on until the command “EXTRT”...

  • Page 11: Delay Time Setting On Latching Mode

    Quark-elec Manual 9.4. Delay time setting on latching mode Working in latching mode, operators can configure G033 with different delay times for Relay 1 and Relay 2 by setting the delay time jumpers. Delay time settings for Relay 1 and Relay 2...

  • Page 12: The G033 App

    Quark-elec Manual The G033 App The G033 APP provides a touch sensitive, user friendly interface that will generate the text commands for you and send them from your mobile device to control the G033. You will still be charged at your normal text rate for the messages created by this app.

  • Page 13: Setup Qk Main Controller Sim Number

    Quark-elec Manual 10.1. Setup QK Main Controller SIM Number The first page you will see when opening the app is the login page. Here you can set two different SIM numbers for 2 different G033 devices. Enter the telephone number of the SIM card that you inserted into the G033 where it says ‘Device 1’...

  • Page 14: Register Sim Cards

    Quark-elec Manual 10.2. Register SIM cards G033 allows one mobile phone to function as the main controller and up to 3 additional phones to function as control terminals. The following interface allows the operator to register, delete and check the SIM card numbers: ...

  • Page 15: Rename Control Terminals

    Quark-elec Manual setting on the jumpers on the board. See chapter 11.4) and then reverts back to the previous state. When working in self locking mode, the relay will stay active until the next command is received. The G033 can also report the relay working status And check the temperature for each sensor via the app.
  • Page 16 Quark-elec Manual  Relay 1, 2 and 3 on/off: clicking ‘on’ button will send a message to the G033 controller to turn the relay into the normal open position. You must wait for the command to be received before issuing another command to the controller. The ‘off’ button operates the relay to the normal closed position.

  • Page 17: Alarm Log

    Quark-elec Manual 10.7. Alarm log The alarm log page will show all the alarm alerts and when they were activated. The app will store these logs within your mobile device.  Alarm log: once alarms have been triggered this page will become populated with your alarm trigger times.
  • Page 18 Quark-elec Manual Disable alarm alert: this command stops input alarm alerts being  sent to the controllers. This is very useful because for every alarm input triggered. The G033 will send a text message to the controllers notifying them of this.

  • Page 19: Command And Response Sms Codes

    Quark-elec Manual 11. Command and response SMS codes Please note: All SMS text commands must always be sent using CAPITAL letters. Do not add spaces or other characters. Function Command Note Register SIM cards Register main SIM card 88888888 Register the main mobile terminal with G033 module by sending ‘88888888’...
  • Page 20 Quark-elec Manual mode information in the following format: ‘MMMM1MMMM2’, where MMMM could be INCH or SELF. INCH refers to Latching control mode (relay will act for 3 seconds and then revert to the normal position), and SELF refers to Self-lock mode.
  • Page 21 Quark-elec Manual Check the current setting RELAYnTIMER For example, by sending “RELAY2TIMER”, of the timer n=1, Relay 1 the timer setting on reply 2 will be reply to n=2, Relay 2 operator. The replied message will be similar as ’Port 2 will switch ON at 12:30;00 and switch OFF at 13:30:00’...

  • Page 22: Specification

    13. Limited warranty and notices Quark-elec warrants this product to be free from defects in materials and manufacture for one year from the date of purchase. Quark-elec will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and labour.
  • Page 23 Quark-elec Manual for any transportation costs incurred in returning the unit to Quark-Elec. This warranty does not cover failures due to abuse, misuse, accident or unauthorized alteration or repairs. A returns number must be given before any unit is sent back for repair.
