Simple Network Configuration Examples; Desktop Switch Example - 3Com SuperStack 3 3812 Implementation Manual

90 A B: N
PPENDIX ETWORK
Simple Network
Configuration
Examples
Desktop Switch
Example
C E
ONFIGURATION XAMPLES
The following illustrations show some simple examples of how the
Switch 3812, Switch 3824, or Switch 3848 can be used in your network.
The example in Figure 21
can be used for a group of users that require dedicated 10 Mbps,
100 Mbps, or 1000 Mbps connections to the desktop.

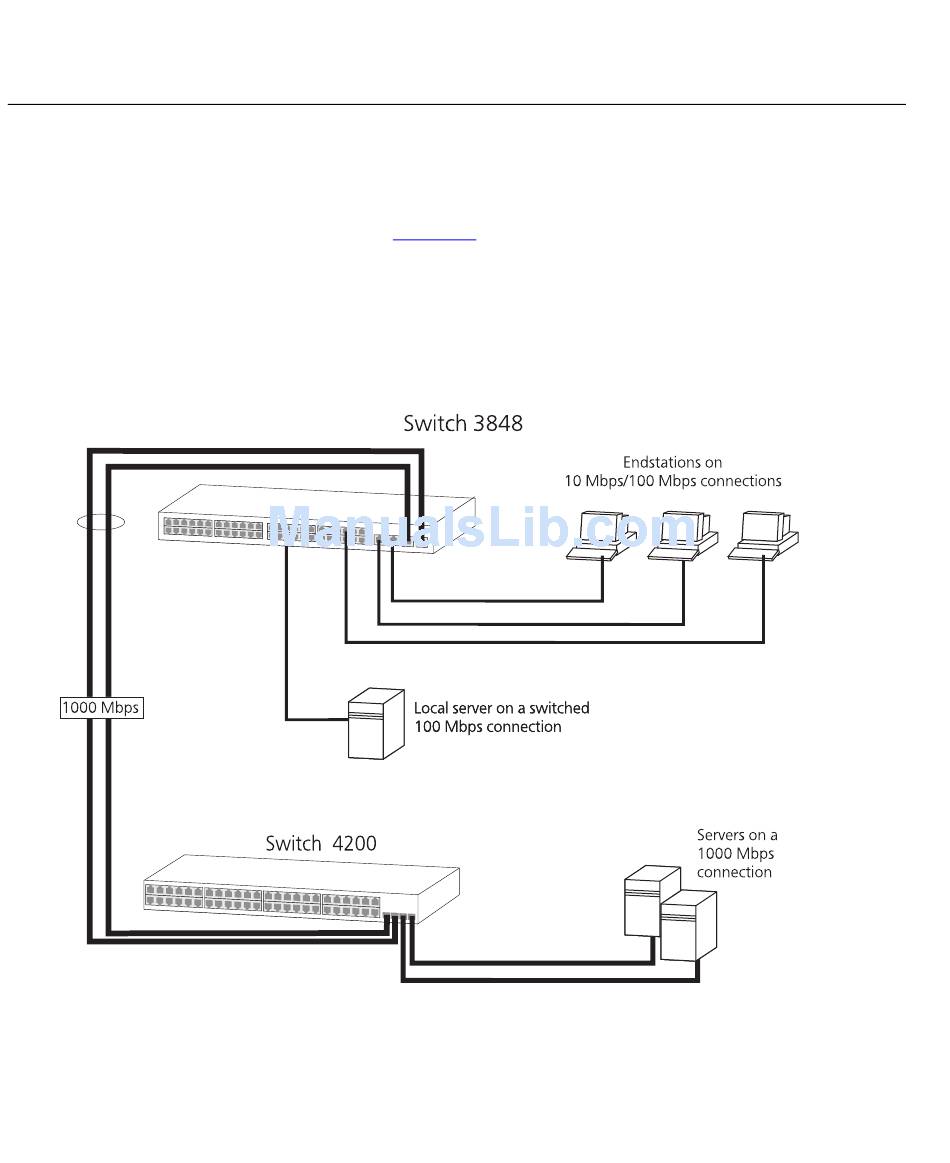

Figure 21 Using the Switch 3848 and Switch 4200 in a desktop environment
shows how a Switch 3848 and a Switch 4200
