Switch 3300 XM as a
Segmentation Switch
The following illustrations show some examples of how the Switch can be
used in your network.
The example in Figure 3 shows how a Switch 3300 XM stack can
segment a network of shared 10Mbps and 100Mbps connections. There
is a 10/100 shared segment on each floor, and these segments are
connected to the Switch which is positioned in the basement.

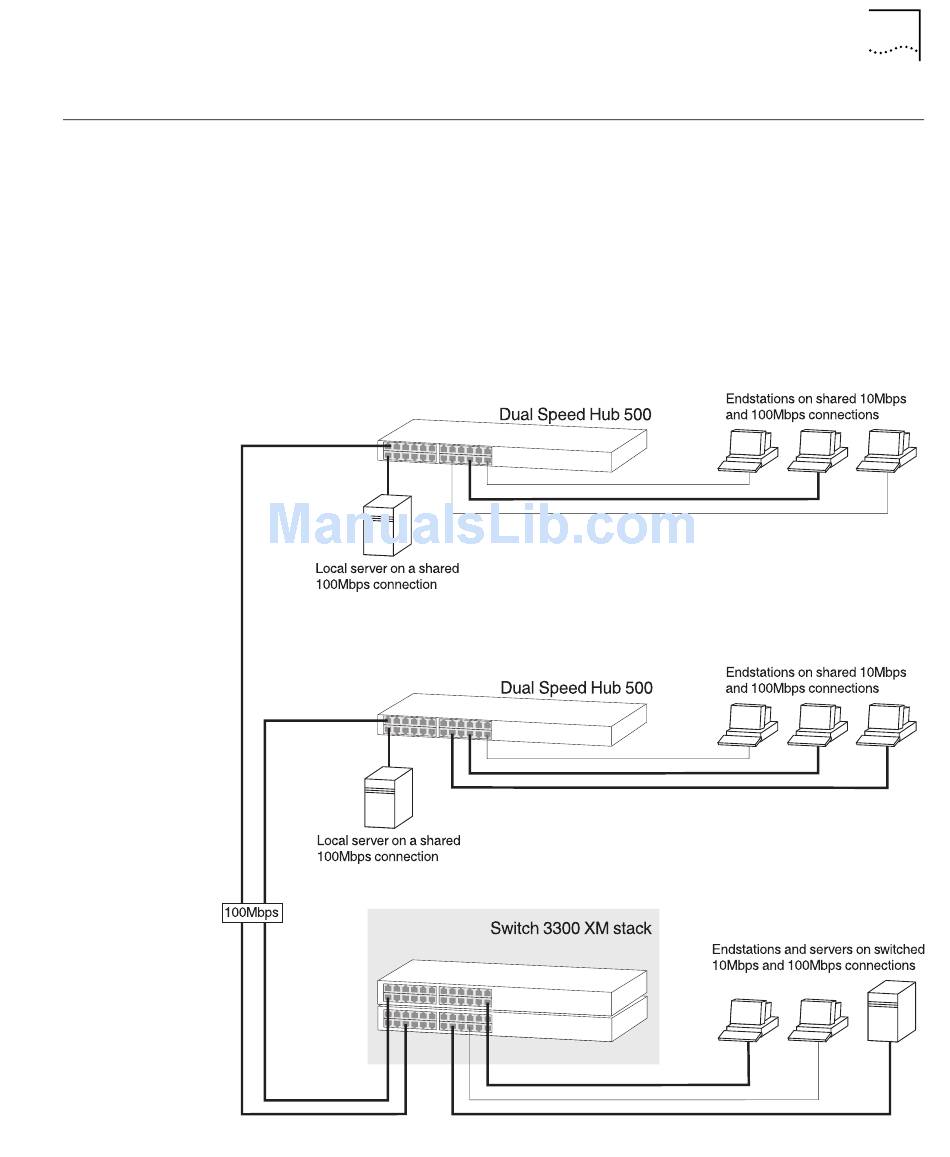

Figure 3 Using the Switch to segment your network
