OBSERVE PRECAUTIONS FOR HANDLING ESD-SENSITIVE DEVICES
Removal/Installation of Major Assemblies -
1. Turn off and unplug the game.
2. Unlock the rear door and open if it is hinged, or remove if it is detachable.
3. Reach under the center of the top of the cover to locate the rotary draw latch (see Figure 1). Turn
the wing on the latch counterclockwise to disengage.
4. Unscrew the screw located in the center of the bottom of the cover (see Figure 2). Slowly lift the
cover and disconnect the ground wire.
5. Disconnect the power cord from the power supply. Remove the wing nut securing the OSD board
and detach the board from the Velcro on the power supply bracket. Carefully set the OSD board
aside. See Figure 3.
Troubleshooting Information - Removal/Installation of Major Assemblies -
COPYRIGHT © 2008 MERIT INDUSTRIES, INC.
ATTENTION:
Ion Aurora
Motherboard Removal

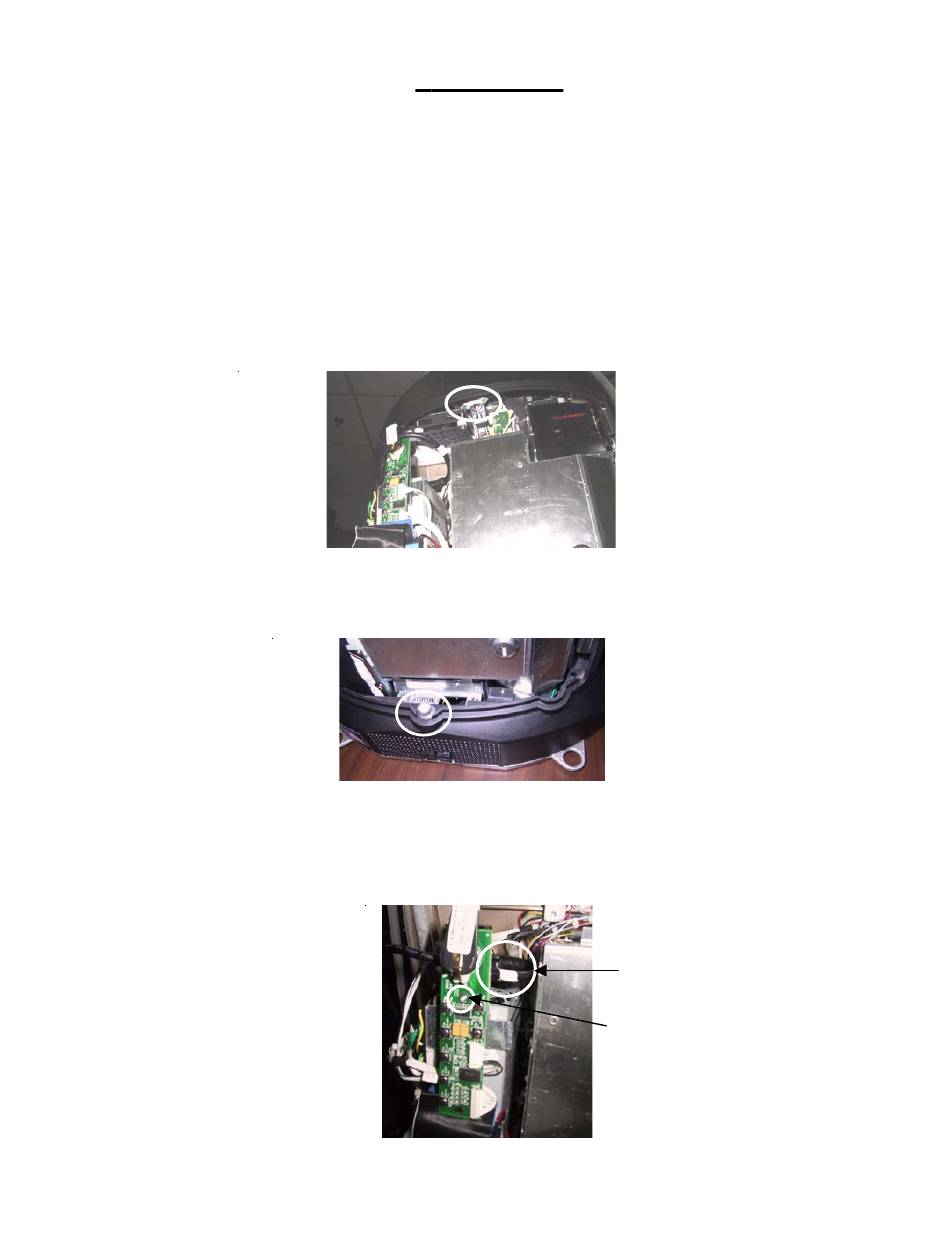

FIGURE 1 - ROTARY DRAW LATCH INSIDE TOP COVER
FIGURE 2 - SCREW IN CENTER OF BOTTOM COVER
FIGURE 3 - OSD BOARD
Ion Aurora
Megatouch Ion Technical Reference Manual
POWER SUPPLY
CORD
SCREW AND
NUT SECURING
OSD BOARD
Advertisement
Table of Contents
Related Manuals for Merit Ion Aurora
Summary of Contents for Merit Ion Aurora
- Page 1 COPYRIGHT © 2008 MERIT INDUSTRIES, INC. ATTENTION: OBSERVE PRECAUTIONS FOR HANDLING ESD-SENSITIVE DEVICES Removal/Installation of Major Assemblies - Ion Aurora Motherboard Removal 1. Turn off and unplug the game. 2. Unlock the rear door and open if it is hinged, or remove if it is detachable.
- Page 2 COPYRIGHT © 2008 MERIT INDUSTRIES, INC. ATTENTION: OBSERVE PRECAUTIONS FOR HANDLING ESD-SENSITIVE DEVICES Removal/Installation of Major Assemblies - Ion Aurora (cont’d) 6. Remove the electronics tray by unscrewing the thumbscrew located in the middle of the rear of the tray and sliding the tray out. See Figure 4.
- Page 3 COPYRIGHT © 2008 MERIT INDUSTRIES, INC. ATTENTION: OBSERVE PRECAUTIONS FOR HANDLING ESD-SENSITIVE DEVICES Removal/Installation of Major Assemblies - Ion Aurora (cont’d) SCREWS SECURING MOTHERBOARD (6 PLACES) FIGURE 6 - SCREWS SECURING MOTHERBOARD TO GAME IN STANDARD AURORA SCREWS SECURING MOTHERBOARD...
- Page 4 COPYRIGHT © 2008 MERIT INDUSTRIES, INC. ATTENTION: OBSERVE PRECAUTIONS FOR HANDLING ESD-SENSITIVE DEVICES Removal/Installation of Major Assemblies - Ion Aurora (cont’d) Motherboard Installation 1. Situate the new motherboard on top of the fish paper, and secure to the electronics tray with 6 screws in a standard Aurora (see Figure 6) or 2 screws in an Aurora Widescreen (see Figure 7).
- Page 5 COPYRIGHT © 2008 MERIT INDUSTRIES, INC. ATTENTION: OBSERVE PRECAUTIONS FOR HANDLING ESD-SENSITIVE DEVICES Removal/Installation of Major Assemblies - Ion Aurora (cont’d) 3. Reconnect the power cord to the power supply. Reattach the OSD board to the Velcro on the power supply bracket and secure with one wing nut. See Figure 3.
