Merit FORCE Upright Removal/Installation Instructions

OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC DEVICES
Removal/Installation of Motherboard -
1. Turn off and unplug the game.
2. Unlock and open the front door to access the electronics shelf.
3. Disconnect all connections to the motherboard.
4. Remove the 2 screws securing the centronics ribbon cable and move it aside. See Figure 1.
5. Remove the 4 screws mounting the motherboard to the CPU shelf (see Figure 2) and carefully
remove the board. Insert the board into an anti-static bag for storage. NOTE: Be sure to read
the Motherboard Handling Precautions before handling the board.
1. Place the new motherboard on the CPU shelf and fasten it with the 4 screws. See Figure 2.
2. Resecure the centronics ribbon cable with the 2 screws. See Figure 1.
3. Reconnect all connections to the motherboard.
4. Close and lock the front door.
5. Plug in and turn on the game.
SCREW SECURING
HARD DRIVE
MOUNTING PLATE
Troubleshooting Information - Removal/Installation of Motherboard -
Megatouch FORCE Technical Reference Manual
COPYRIGHT © 2004 MERIT INDUSTRIES, INC.
ATTENTION:
FORCE Upright w/ Coin Door

Motherboard Removal

Motherboard Installation

SCREWS SECURING
CENTRONICS CABLE

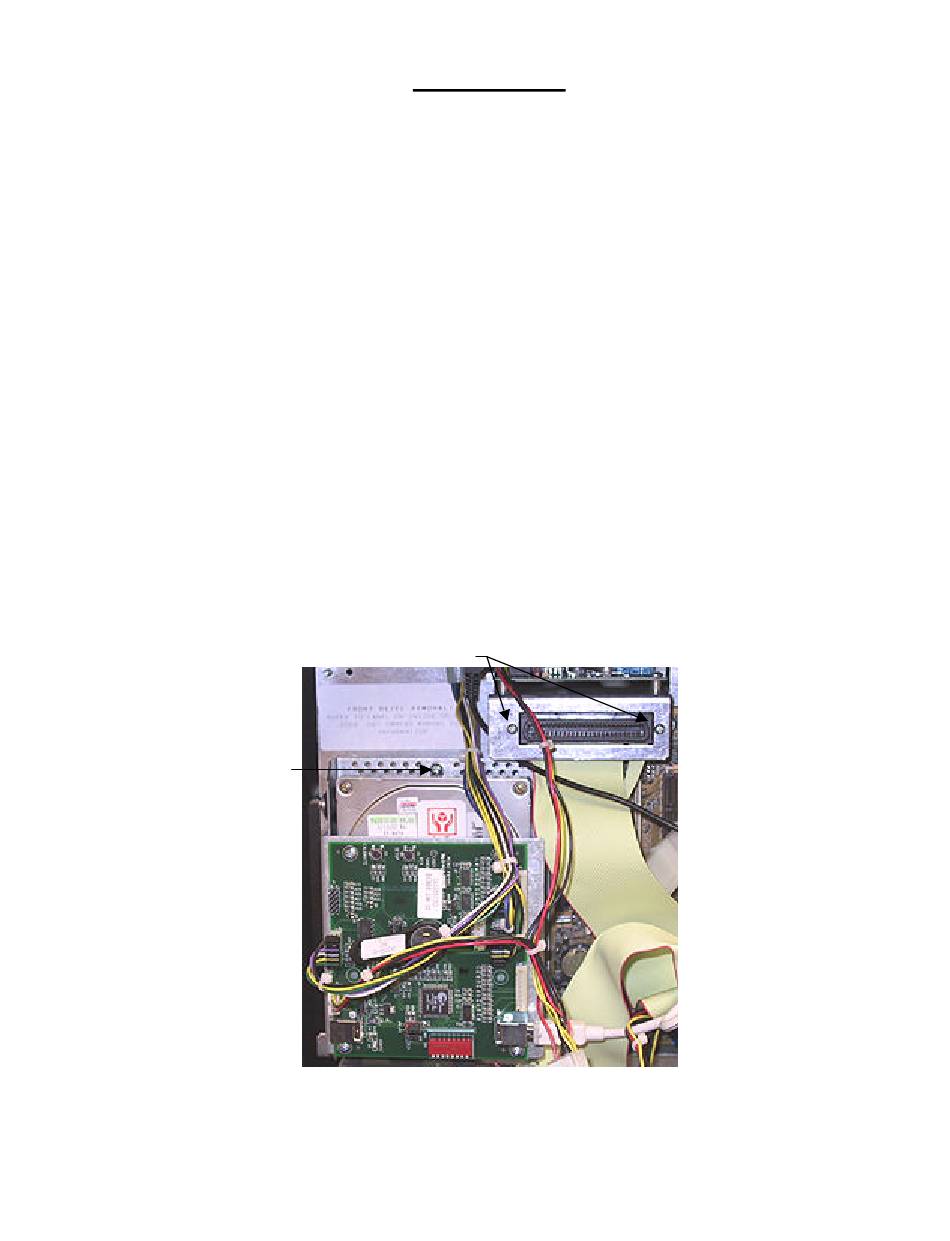

FIGURE 1 - MOTHERBOARD REMOVAL
FORCE Upright with Coin Door
