OBSERVE PRECAUTIONS FOR HANDLING ESD-SENSITIVE DEVICES
Removal/Installation of Major Assemblies -
1. Turn off and unplug the game.
2. Unlock the game and open it by pulling the rear of the top bezel forward.
3. Lift the motherboard cover and remove it from the Velcro securing it to the inside of the game (see
Figure 1).
4. Remove all motherboard connections, noting their positions, and unscrew the motherboard in 4
places, noting the location of the motherboard ground wire (see Figure 2).
5. Carefully slide the motherboard out of the system.
LOCATION OF
MOTHERBOARD
GROUND WIRE
SCREW
LOCATION
(4 PLACES)

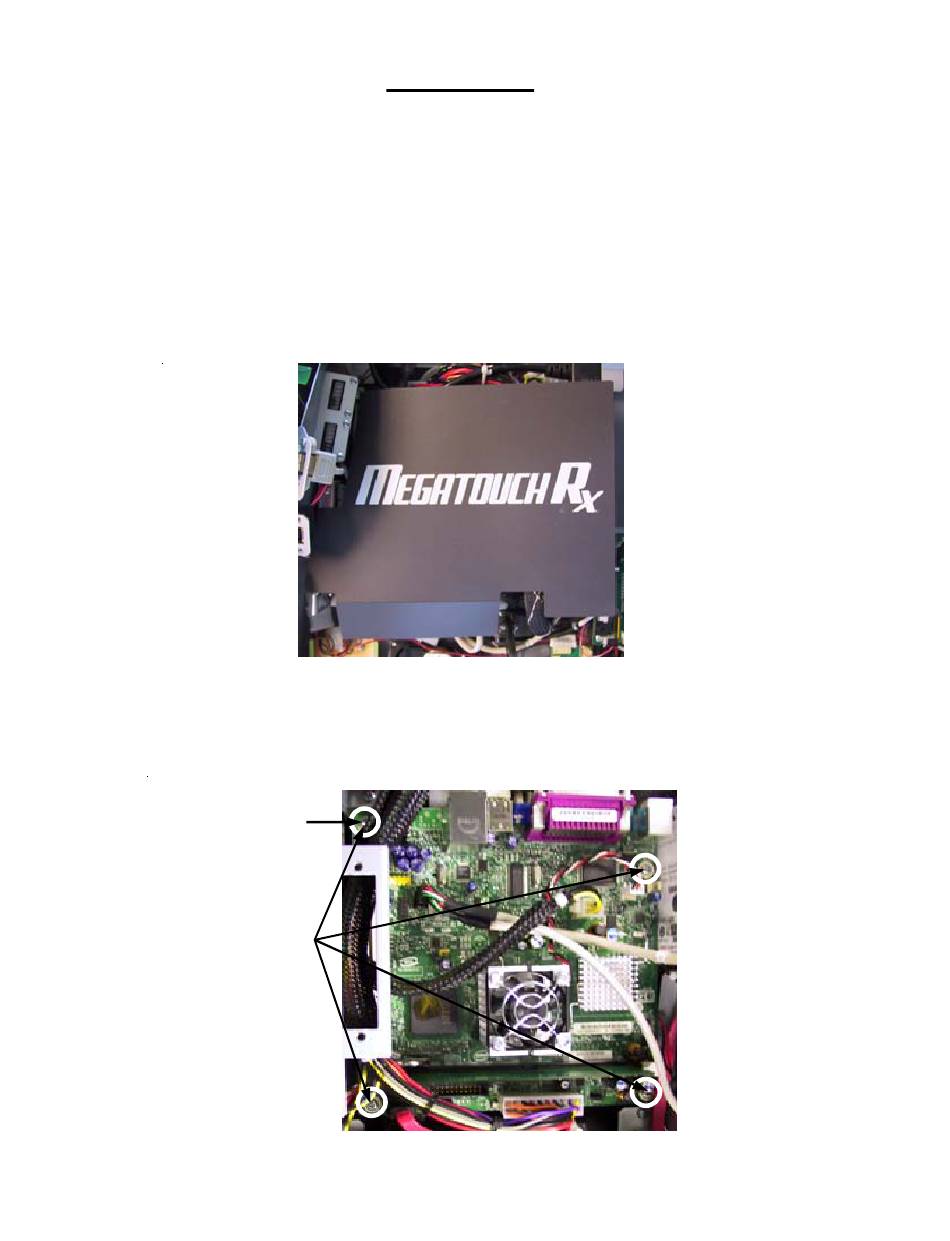

FIGURE 2 - LOCATION OF FOUR SCREWS SECURING RX MOTHERBOARD
Troubleshooting Information - Removal/Installation of Major Assemblies -
COPYRIGHT © 2009 MERIT INDUSTRIES, INC.
ATTENTION:
Ion Rx
Motherboard Removal
FIGURE 1 - RX MOTHERBOARD COVER
Ion Rx
Megatouch Ion Technical Reference Manual
