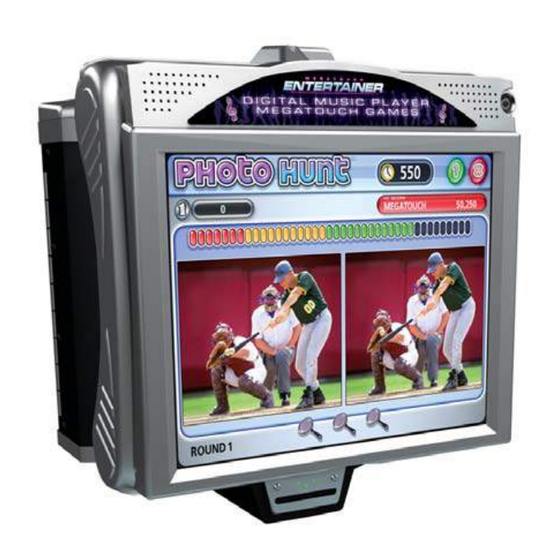

- Page 1 Megatouch Wallette and Megatouch Entertainer Installation & Owner’s Manual FOR TECHNICAL ASSISTANCE: CONTACT YOUR LOCAL DISTRIBUTOR For a list of distributors, visit the Merit Entertainment Web site www.meritgames.com PM0673-03...
-
Page 3: Table Of Contents
Megatouch Entertainer, Megatouch Wallette, Ion 2009, Mega-Lease, Mega-Link, MegaNet, MegaWeb, TournaMAXX and TournaCHAMP are registered trademarks of Merit Entertainment. MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson. Reproduction of this manual, in any form or by any means, is strictly forbidden without the written permission of Merit Entertainment. -
Page 4: Site Preparation
Internet. The Linksys 802.11B router is plifier, if desired. The cash access section recommended. For more information, see is key-locked for security purposes. See Wireless Linking. Figure 2. MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03... -
Page 5: Game Diagrams
USB PORT CENTRONICS UPGRADE CONNECTOR COVER PLATE SECURED BY STANDOFF INSIDE CPU SECTION REAR VIEW FRONT VIEW CPU SECTION SLID TO THE LEFT FIGURE 2 - FRONT AND REAR VIEWS OF WALLETTE / ENTERTAINER PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL... -
Page 6: General Care And Maintenance
Touch the EXIT button. correct for a lack of sharpness.) If high resolution is enabled, the game will prompt you to go through the same steps again for high resolution mode. MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03... -
Page 7: General Circuit Board Handling Information
If you want to disable the watchdog timer, set DIP switch 3 on the I/O board to the open position and reboot the game. PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL... -
Page 8: Mounting The Game On A Wall
NOTE: Be sure to leave enough room Proceed with Setting up your between the head of the screw and the Megatouch Game. wall for the thickness of the back plate. MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03... - Page 9 POWER CORD ROUTING OPTION FOR FLUSH WALL AND MEGA-BRACKET INSTALLATIONS (SUPPLIED RUBBER GROMMET MUST BE INSTALLED IF ROUTING CABLE THROUGH HOLE) FIGURE 3 - INSIDE VIEW OF MEGATOUCH WALLETTE / ENTERTAINER BACK PLATE PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL...
-
Page 10: Setting Up Your Megatouch Game
4) and wait for it to go through its boot- up sequence. The game will display the Player Menu Screen. POWER SWITCH LOCATION FIGURE 4 - WALLETTE / ENTERTAINER FROM THE LEFT WITH THE CPU SECTION SLID TO THE RIGHT MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03... - Page 11 TIE WRAP AMPLIFIER & SPEAKER WIRES METER ETHERNET COUPLET PHONE COUPLER BILL ACCEPTOR OPENINGS AT BOTTOM OF BASE FOR ROUTING WIRES (BOTH SIDES) FIGURE 5 - BACK OF WALLETTE / ENTERTAINER- CASH DOOR OPEN PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL...
-
Page 12: Ami Music Setup
Touch the Network button on the Main Menu. See Figure 6. Entertainer Units Only: In order to continue with music setup, your Operator Agreement must be filled out and received by Merit. Hardware: Wired connections: Turn off and unplug the unit and connect an Ethernet cable to the Ethernet coupler inside the cash door (see Figure 5). - Page 13 After the game calls in, confirm that the location information is correct, and press YES. Continue with step 13. FIGURE 8 - ETHERNET INTERNET SETUP SCREEN PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL...
- Page 14 -Unsecured connection: You will be prompted to enter interface information. Accept the default values, or consult a network advisor to manually configure these settings. MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03...
- Page 15 When this is complete, the game will ure the jukebox information obtained reboot and ask you to calibrate. Fol- from your jukebox setup screen. On low the on-screen instructions. your jukebox, go into “Service”, then PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL...
- Page 16 33¢. If der normal circumstances, this could your game is set to one credit is equal take 30 to 45 minutes. Merit has a to 17¢, each field in the AMI Play Cost music catalog download which will de- Screen must be at least 2 credits in or- crease this time.
-
Page 17: Connecting Your Own
Use the hole in the metal bracket to tie-wrap the speaker wires to the bracket to prevent unnecessary strain (see Figure 5). Route the wire through the openings at the bottom of the base and carefully close and lock the cash door. PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL... -
Page 18: Game Name And Score Needed For Initial Replay
W ord Dojo 375,000 Mini Golf/C razy Golf No Replay W ord Safari 125,000 Monkey Bash No Replay W ordster 100,000 Monster Madness 400,000 Zenword 350,000 Moon Drop 160,000 Zip 21 200,000 My Ex 150,000 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03... -
Page 19: Operator Setup Screens Flowchart
Enable Promo Credits Entertainment Channel Enable Entertainment Channel Premium Erotic Enable Premium Erotic Prize Zone Enable Prize Zone MegaWeb Enable MegaWeb Operator Web Access Enable Operator Website Hot Topics Enable Hot Topics Options PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL... -
Page 20: Main Menu
Setup Operator Keys setup screens via the key (if applicable). The (Ion Only) AMI Setup option allows operators to configure • AMI Setup their games to connect to the AMI music • Options server. MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03... - Page 21 • • Gives details about various hardware System Info com ponents in the gam e. • • Only use on the advice of Merit Technical Verify Databases Service. • • Detects hard drive errors and predicts Hard Drive Self Diagnostics future failures.
-
Page 22: Credits/Pricing Menu
The operator can also use this screen to determine whether prices are displayed to players as credits or monetary amounts, and set the cost of Fast-Play Amusement, Standard Amuse- ment, Long Amusement, and Premium/MegaNET games. Touch the Use Factory Default Pricing button to restore default values. MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03... -
Page 23: Coin-In Menu
The meter pulse, which is the highest common divisor of all the monetary values of the Channels, is independent of the cred- its and only tracks the smallest unit of cur- rency. Operators can use this number to PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL... -
Page 24: Coinless Coin Op Menu
Pricing for these features and the harness connected to the coin can only be displayed in currency values, mech (if applicable) to disable the inputs. not credits. MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03... -
Page 25: Rental Mode
PIN to reset the game. The alarm will terminate when the machine is rebooted, the operator SETUP button is pressed, or the correct PIN is entered. PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL... -
Page 26: Games Menu
In categories with Merit-thon games, players who choose Merit-thon play one round of three different games in that category for one combined score. MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03... -
Page 27: Hi Scores Menu
Books Screen. Touch the + above Total Credits to view Cur- rent and Lifetime credits for each game mode. Touch the button again to minimize this screen. PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL... -
Page 28: Cash Settlement
CASH SETTLEMENT SETUP SCREEN Books Display also shows coin input data, To do so, touch the bottom-right arrow but- as well as Promotional Credits, Merit Money, ton, then choose YES or NO to display the and Coinless Coin Op totals (when these operator’s cut on the Cash Settlement Setup... - Page 29 Details for breakdowns and Clear/Com- Touch the bottom right arrow button to dis- plete Collection to finish. Cash Settle- play more groups of fees. ment totals will reset once collection is com- plete. PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL...
-
Page 30: System Menu
6 Stars using the System Menu: Options PIN is enabled) Screen. Touch an option box under System Menu: Options for on- screen help. Transfer information (machine configuration, Books data, My Merit Data Transfer data and ad screens) using a USB Pen. Setup Operator... -
Page 31: Diagnostics Menu
• sound chip type • I/O board processor • video chip type Only use on the advice of Merit Technical Service. An Update Verify Databases from Server must be performed prior to verifying databases. Checks the hard drive for errors, displays results, and notifies Hard Drive Self operator when error is detected or hard drive failure is imminent. -
Page 32: Hard Drive Self Diagnostics
”FAILED IN THE PAST”. Press OK at the pop-up to return to the list of attributes. FIGURE 27 - HARD DRIVE SELF DIAGNOSTICS SCREEN FIGURE 29 - ATTRIBUTE RATING POP-UP SCREEN MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03... -
Page 33: Presentation Menu
View Player Data Touch View Player Data after selecting My Merit from the Promotion Menu to bring up a list of all players with My Merit ac- counts. Touching a player’s name will bring up the PIN, total number of games played, and date the account was created. -
Page 34: Merit Money
Show Player Hi Scores Selecting a game name under this feature will bring up the Hi Scores of each My Merit player for that game, as well as the date FIGURE 32 - MERIT MONEY SCREEN the score was achieved. The operator can... -
Page 35: Megatouch Player And Operator Keys
See Figure 2 to determine if your game has a key socket. Player Keys Operator Keys The Player Key stores My Merit, Tournament Operator Keys can be programmed to make login information and Mega Level game lev- it possible to access the Main Menu Screen without opening the game. -
Page 36: Wireless Linking
Accept the default values, or consult a connection and the game returns to the network advisor to manually configure Wireless Device Setup Screen, reboot these settings. the game in order to ensure that your network is properly established. MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03... -
Page 37: Local Tournament Mode
Provided an attendant is present, prizes may be claimed anytime after the completion of a tournament. Once the prize is awarded, it is noted on the Winners’ List and is accounted for in the bookkeeping statistics. PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL... - Page 38 WINNERS winners who have been awarded prizes. Erases ALL tournament information from the memory RESET ALL of game! This includes ALL prize information! FIGURE 36 - TOURNAMENT CLOCK MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03...
- Page 39 Touch the tournament round number to toggle the Tournament number of rounds for the associated game. Most game Rounds Field rounds can be set from as low as 1 to as high as the default number of rounds. PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL...
- Page 40 Tournament play can Fields be set in 10-minute increments past the real time. The tournament will start at the nearest 10-minute interval. Exits to the Tournament Setup Screen. MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03...
- Page 41 If players should forget their PIN, the attendant can press the SETUP button in place of entering the player’s PIN. The sequence will continue as though the PIN had been entered. Touch PRIZE AWARDED to register the payout. PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL...
-
Page 42: Dip Switch Settings
When the message Please reset DIP 1 to proceed appears, reset DIP 1 to the open position. The Merit diagnostics page will appear. Touch ? for information on DIP switch functionality. Touch the specific DIP switch to activate it. Touch X to exit. -
Page 43: Troubleshooting
If using your own amplifier, make sure that the EC0350 harness is connected to “audio out” on the motherboard and your amplifier is connected to the 3.5 mm jack inside the cash door. PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL... - Page 44 Check the coin harness for pinched or damaged wires. • Disconnect the coin harness from J1, J3, J7, and J8 of the I/O board. If the coin jam still appears, the I/O board will have to be sent for repair. MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03...
- Page 45 ABORT RETRY key. If it will not accept the download, try another DVD FAIL” or “BAD drive. If it still does not work, replace the hard drive. COMMAND OR FILE NAME” error PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL...
-
Page 46: Meganet® Troubleshooting
MegaNet® server PARTICIPATION manager for proper registration information. • The connection to the ISP was interrupted. Verify telephone MODEM LOST PHONE connection is of good quality. • Try again. CONNECTION MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03... - Page 47 • The call was answered by a modem but requests for UNABLE TO ESTABLISH connection were not answered. • Try again. If a connection is not made after multiple attempts, CONNECTION WITH ISP the selected ISP may not conform to Internet standards. PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL...
-
Page 48: Replacement Parts List
1-800-445-9353 Outside the USA and Canada call: (215) 826-1400 FAX: (215) 826-1401 www.meritgames.com AMI Entertainment USA and Canada call toll-free: 1-877-762-6765 (1-877-ROC-N-ROL) Outside the USA and Canada call: (616) 243-3633 E-mail: support@amientertainment.net www.amientertainment.com MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03... -
Page 49: Connection Diagrams
POWER I/O BOARD DIMM MEMORY WIRELESS DEVICE TOP VIEW OF MOTHERBOARD ETHERNET MODEM AUDIO OUT SERIAL CABLE (OPTIONAL) TOUCHSCREEN VGA VIDEO CONTROLLER CONNECTOR SIDE VIEW OF MOTHERBOARD FIGURE 39 - ASUS MOTHERBOARD DRAWING PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL... - Page 50 +5 VDC BLACK +5 VDC BLACK GRAY PWR GOOD VIOLET +5V VSB YELLOW +12 VDC ORANGE +3.3 VDC BLUE -12 VDC BLACK GREEN PWR ON BLACK BLACK BLACK ----- ----- +5 VDC +5 VDC MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL PM0673-03...
- Page 51 BILL DIP SWITCH BANK MECH PLAYER KEY SOCKET SETUP CALIBRATE POWER CONNECTOR FIGURE 41 - I/O BOARD DRAWING MONITOR CONTROLS SECURITY KEY REMOTE SETUP/ SETUP CALIBRATE CALIBRATE/KEY FIGURE 42 - CONTROL BOARD DRAWING PM0673-03 MEGATOUCH WALLETTE/ENTERTAINER INSTALLATION AND OWNER’S MANUAL...
-
Page 52: Warranty
Merit Entertainment under its warranty coverage. Merit will repair or replace, at its option, any component, part or assembly that fails un- der warranty, provided that the failed item is returned, shipping charges prepaid, to Merit’s repair facility and Merit is notified of... -
Page 53: Software License Agreements
COPYRIGHT © 2008 MERIT ENTERTAINMENT Merit Industries, Inc. Software License Agreement Merit Industries, Inc. (“Licensor”) is willing to license the enclosed software to you only if you accept all of the terms in this license agreement (“Agreement”). Ownership of the Software The enclosed Merit®... - Page 54 Agreement or arising out of activity or misuse of the Software. 15. Merit, in its sole discretion, may assign this agreement or any of its rights and obligations hereunder. 16. If you have any questions concerning this Agreement or wish to contact Licensor for any reason, please write: Merit Industries, Inc., 155 Rittenhouse Circle, Bristol, PA...
- Page 55 (Contrat). Droit de Propriété Le produit Merit ci-joint contenant, mais ne s'y limitant pas, le logiciel Megatouch™ (ci-après le "logiciel") et toute la documentation écrite, restent la propriété du Concédant et sont protégés par : les lois de droits d'auteur des Etats-Unis, les lois s'appliquant aux brevets déposés et à...
- Page 56 New York, aux Etats- Unis. 15. Merit Industries se réserve le droit de transférer le présent Contrat à un tiers ainsi que ses droits et obligations ci-après. 16. Pour toutes questions concernant le présent Contrat -ou si vous désirez contacter le Concédant pour une raison quelconque, veuillez écrire à...
- Page 57 COPYRIGHT © 2008 MERIT ENTERTAINMENT Merit Industries, Inc. Softwarelizenzabkommen Merit Industries, Inc. („Lizenzgeber”) ist nur dann bereit Ihnen eine Lizenz für die beiliegende Software zu erteilen, wenn Sie alle Bestimmungen dieses Lizenzabkommens (“Abkommen”) akzeptieren. Eigentumsvorbehalt der Software Das beiliegende Merit®-Produkt, welches das Megatouch® Softwareprogramm („Soft- ware”) beinhalten kann, aber nicht darauf beschränkt ist, und die schriftlichen Unterlagen...
- Page 58 Streitigkeiten, die diesen Vertrag betreffen, oder die durch Leistung oder Missbrauch der besagten Software entstehen. 15. Merit kann nach eigenem Ermessen dieses Abkommen oder jedes der darin enthaltenen Rechte und Pflichten an Dritte abtreten. 16. Bei Rückfragen über dieses Abkommen oder wenn Sie den Lizenzgeber aus einem anderen Grund kontaktieren wollen, bitte schreiben an: Merit Industries, Inc., 155 Rittenhouse Circle,...
- Page 60 Please read the enclosed license agreement. Operation of this game constitutes acceptance of the Merit Software License Agreement. Veuillez lire le contrat de licence d’utilisation ci-inclus. Si vous utilisez ce jeu, vous vous engagez à respecter les termes et conditions du contrat de licence d’utilisation du logiciel de Merit.
