General Calibration Procedure

When you start FAA-CAL, it scans the available RS-232 ports in the PC for a
connected PTE-100-C PRO. Therefore, first connect your unit to the PC
using the supplied DB-9 cord, switch it on and activate its serial port by
pressing and until you hear an audible tone and a tiny
rectangle is lit at the right edge of Display #1. Now you can launch the
FAA-CAL program.

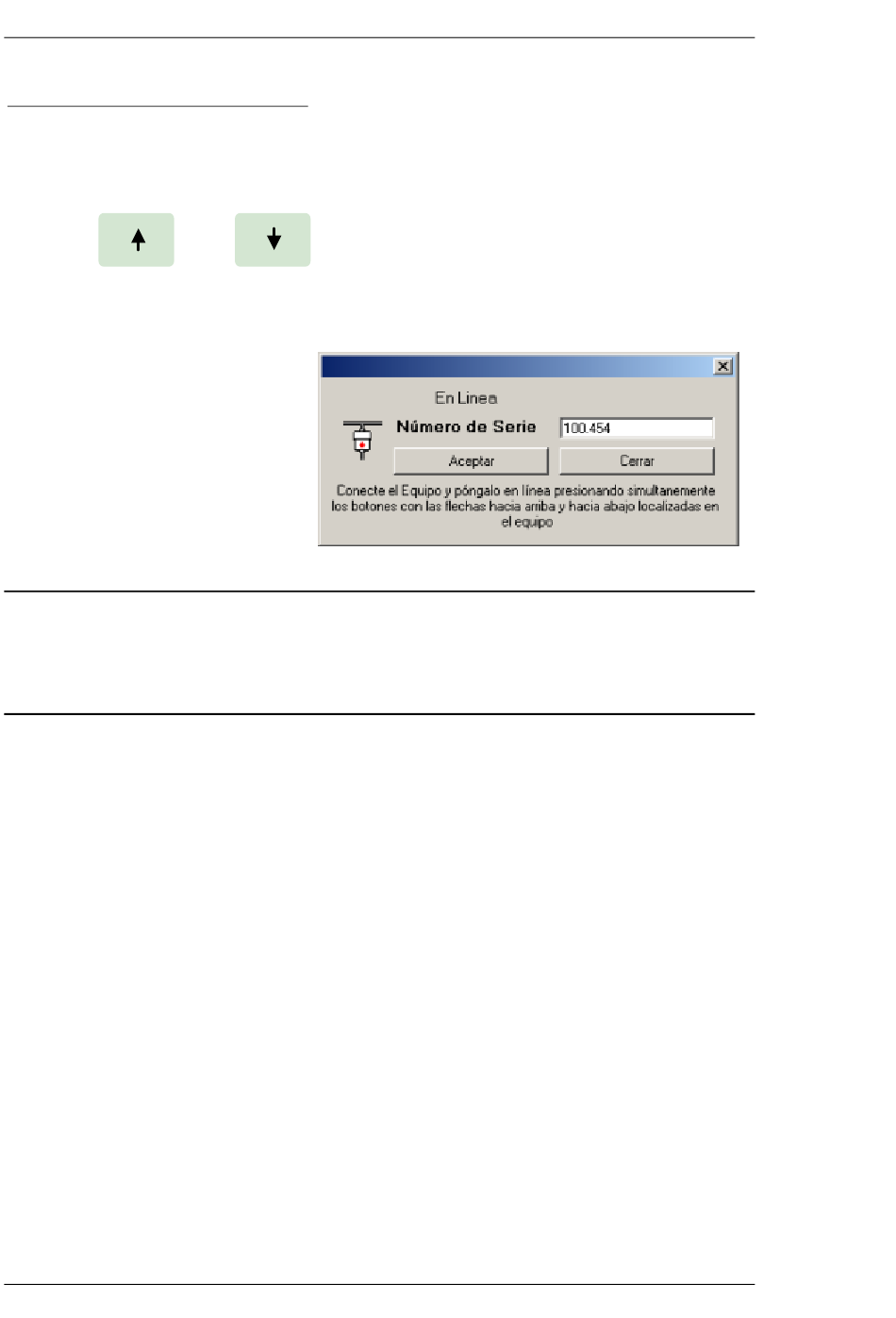

In a few seconds, a small
window will show the con-
nected unit's serial number.
Click OK to accept and be-
gin with the calibration
process.
If the serial number of the connected PTE-100-C PRO is new in the FAA-CAL's
equipment database, the program will create a new record for that unit and
will acquire and save its adjustments into it automatically. This will allow you
to back up to the factory settings in case you make mistakes and render the
equipment unusable accidentally.
FAA-CAL displays a chronological list of all the adjustments done on one or
more PTE-100-C PRO units to the date. To readjust the connected unit, click
on "NEW" and follow the instructions provided with the program. If you wish
to restore a previous set of adjustments to the connected equipment, high-
light the desired line in the list and click on "Send to the Equipment".
