VERITAS 05J67.01 Quick Start Manual

Table Top for Compact Routers
Caution: To use this product safely, always follow the safety
instructions that came with your power tool. As with any power
tool accessory, always wear eye protection and hearing protection. Blades are
extremely sharp; handle with care.

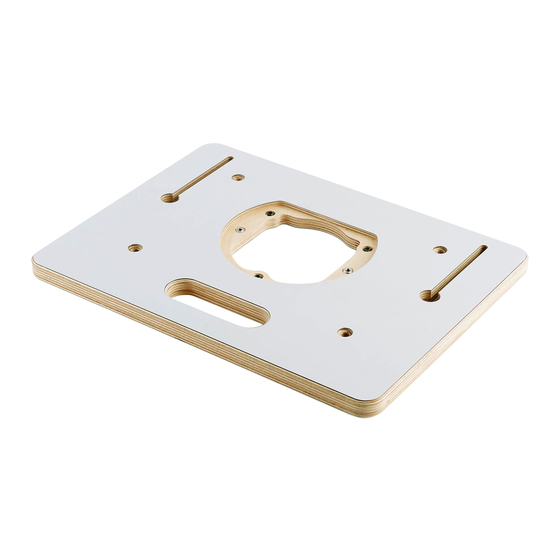

This table top accepts our acrylic base plates for compact routers*. Clamped to
the edge of a workbench or a sawhorse, this table top becomes a simple, fast
solution for routing grooves, chamfers or round overs with a compact router.
The 10 / " × 15
1
2
a light-gray laminate surface for smooth workpiece travel. It has a machined
opening for a 6" diameter base plate (not included), an integral carrying handle
and fence slots. Five levelling screws, two anchoring screws, and a removable
pivot post are included.
While this table top can be used on its own, a base and a fence are available
separately to offer the same utility as that of a small-scale router table system.
Top
Figure 1: Components of the table top for compact routers.
*Base plates available for these compact routers: 05J66.01 for Bosch Colt
®
DeWalt DWP611 and Porter-Cable
/ " top is constructed of 18 mm Baltic birch plywood with
1
2
Hex Key
®
450, 05J66.03 for Ridgid
05J67.01
Pivot Post
Anchor Screws
Router Plate
(not included)
Levelling Screws
™
, 05J66.02 for
®
2401.
