VERITAS 05J67.01 Installation

Table Top for Compact Routers
Caution: To use this product safely, always follow the safety
instructions that came with your power tool. As with any power
tool accessory, always wear eye protection and hearing protection. Blades are
extremely sharp; handle with care.

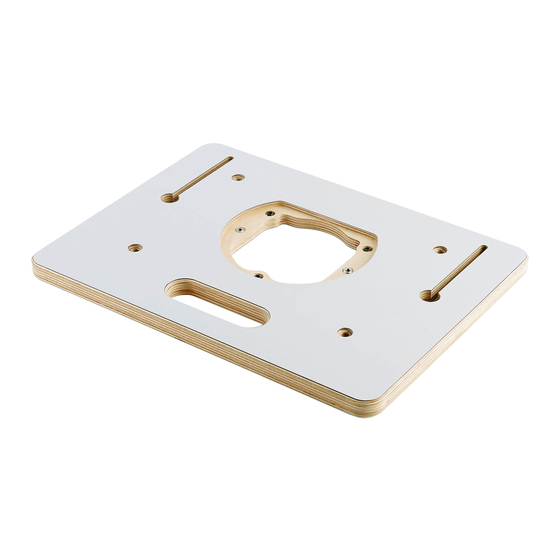

This table top accepts our acrylic base plates for compact routers*. Clamped to
the edge of a workbench or a sawhorse, this table top becomes a simple, fast
solution for routing grooves, chamfers or round overs with a compact router.
The 11 / " × 15
1
2
a light-gray laminate surface for smooth workpiece travel. It has a machined
opening for a 6" diameter base plate (not included), an integral carrying handle
and fence slots. Five levelling screws, two anchor screws, and a removable pivot
post are included.
While this table top can be used on its own, a base and a fence are available
separately to offer the same utility as that of a small-scale router table system.
Top
Figure 1: Components of the table top for compact routers.
*Pre-drilled base plates are available for these compact routers: 05J66.01 for Bosch Colt
05J66.02 for DeWalt
®
for Makita RT0701C. A blank base plate (05J66.09) is also available for drilling the hole pattern to
suit other compact routers.
/ " top is constructed of 18 mm Baltic birch plywood with
1
2
Router Plate
(not included)
3 / " Hex Key
16
®
DWP611 and Porter-Cable
Anchor Screws (2)
Threaded Levelling Screws (2)
®
450, 05J66.03 for Ridgid
05J67.01
Pivot Post
1 / " Hex Key
8
Black Levelling Screws (3)
™
PR20EVS,
®
R2401, and 05J66.05
