Prairie Dog
Patent Pending
®
The Veritas Prairie Dog
fi t into 3 / " diameter through-holes in
4
workbench tops* between 2" and 2
thick. This brass stop features a height-
adjustable spring mechanism that will
raise the dog head (about
when in use and lower it to stow it when
not needed.
*Note: For thicker tops, a dowel spacer
can be used. See below for details.

Installing the Stop Plate

For use in a through-hole, you will need to fasten the stop plate to the underside
of the workbench top; a magnet at the base of the dog holds it fi rmly against
the plate. To free up the hole for other duty, the plate is easily pivoted out of
the way, and the dog removed.
Select a dog hole for the
desired location of the
prairie dog. Using the stop
plate as a guide, mark the
locations for the screw
holes on the underside of
the workbench. Drill two
3 / " pilot holes for the
32
screws. Install the plate
with the two included
wood screws,
each screw head up against
the plate, but not so tight as
to prevent the plate from
being rotated out of the
way to free up the hole.
Additional plates may be
installed to allow a single
prairie dog to be used in
multiple locations.
™
™
is sized to
5 / " projection)
16

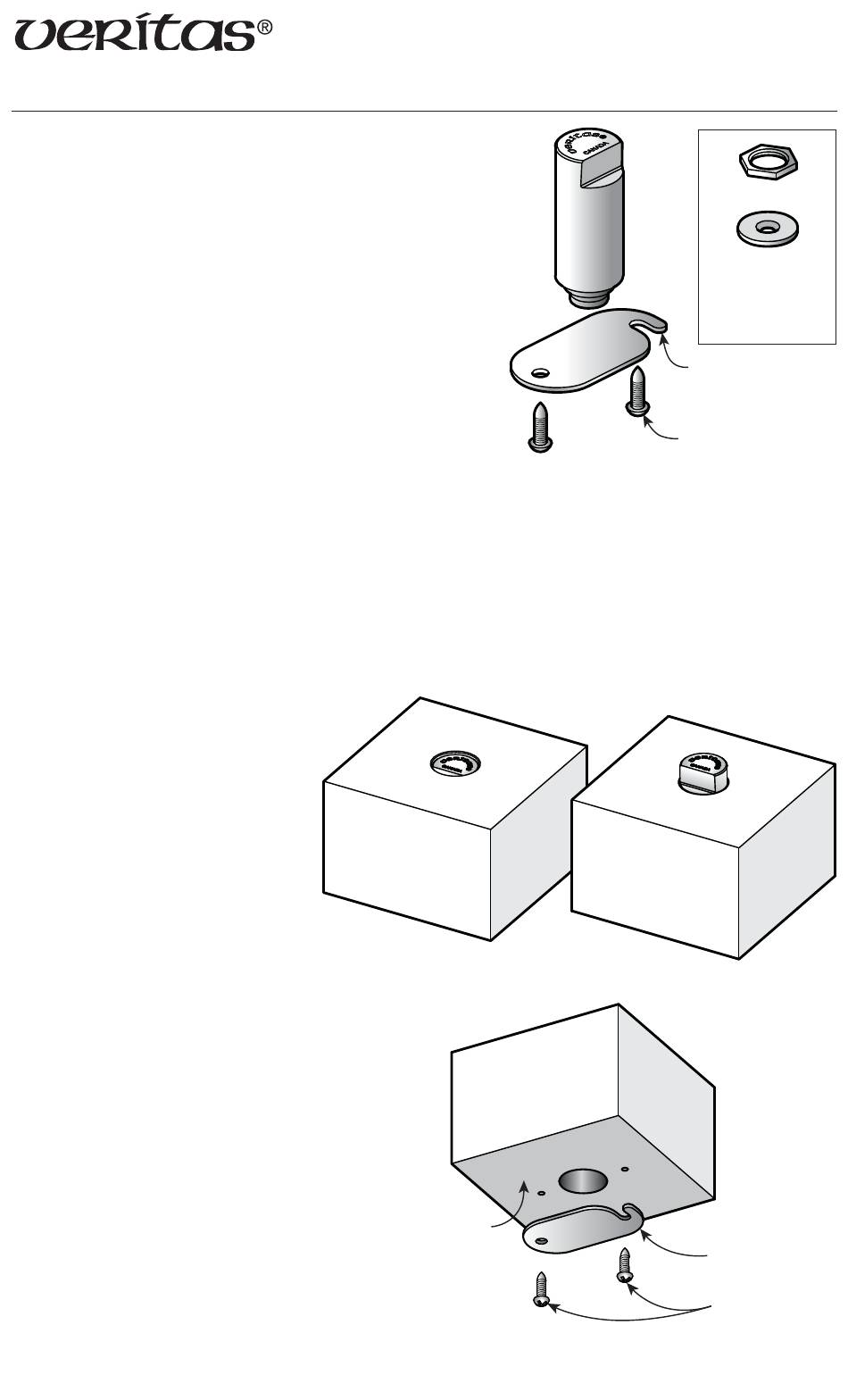

Figure 2: Prairie dog pops up for use.
bringing
Figure 3: Plate installation.
1 / "
2

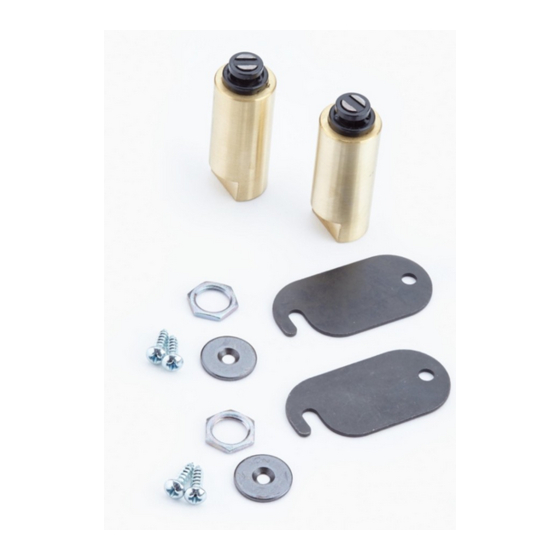

Figure 1: Prairie dog parts.
Stowed Position
Underside of
Workbench Top
05G10.22
Jam Nut
Washer
Optional parts
for use in tops
thicker than 2".
Stop Plate
Wood Screws (× 2)
Activated Position
Stop
Plate
Wood Screws
