VERITAS 05J67.02 Quick Start Manual

Base for Table Top for Compact Routers
Caution: To use this product safely, always follow the safety
instructions that came with your power tool. As with any power
tool accessory, always wear eye protection and hearing protection. Blades are
extremely sharp; handle with care.

Assembly

Note: Assembly hardware includes eight fl anged cross dowels, eight
1 / -20 × 30 mm bolts, two
4
and one hex key.

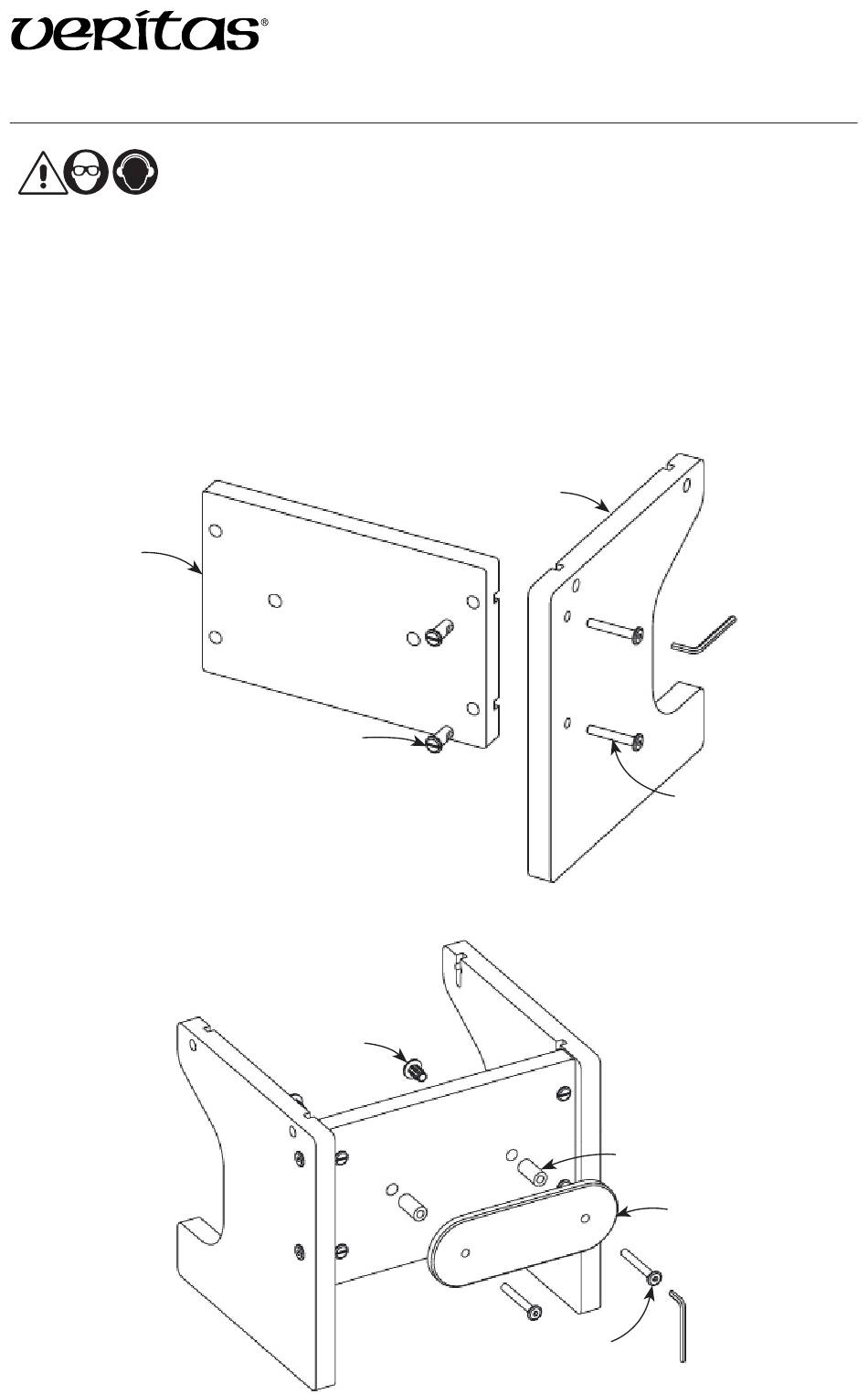

1. Attach one side panel to the back panel using two flanged cross dowels and
two 1 / -20 × 30 mm bolts as shown.
4
Back
2. Repeat to attach the other side panel.
3. Press the two connectors into the holes
in the inside back panel.
4. Attach the cord holder using two spacers
and two 1 / -20 × 40 mm bolts.
4
1 / -20 × 40 mm bolts, two spacers, two connectors,
4
Flanged Cross Dowels
Connectors
Side
1
/ -20 × 40 mm Bolts
4
05J67.02
1
/ -20 × 30 mm Bolts
4
Spacers
Cord Holder
