VERITAS 05P37.05 Manual

Bevel-Up Jointer Fence

 05P37.05
®
The Veritas Bevel-Up Jointer Fence allows you to shoot accurate and
®
consistent square or bevelled edges with your Veritas Bevel-Up Jointer. The
anodized aluminum fence can be attached to either side of the plane with
the clamping knobs provided. A set screw in the fence allows the angle or
squareness of the fence to be accurately controlled. Two additional threaded
holes have been provided for storage of the clamping knobs when the fence is
not in use. A clearance hole has also been provided to allow access to the set
screw that controls the lateral position of the blade with the fence installed.
As supplied, the 2" tall guiding face can be used to plane edges perfectly square
to the face of your workpiece. It can also be used to shoot angles less than 90°
when a bevelled wooden guide is attached to the inside face of the fence.
Set Screw
Clamping Knob (2)

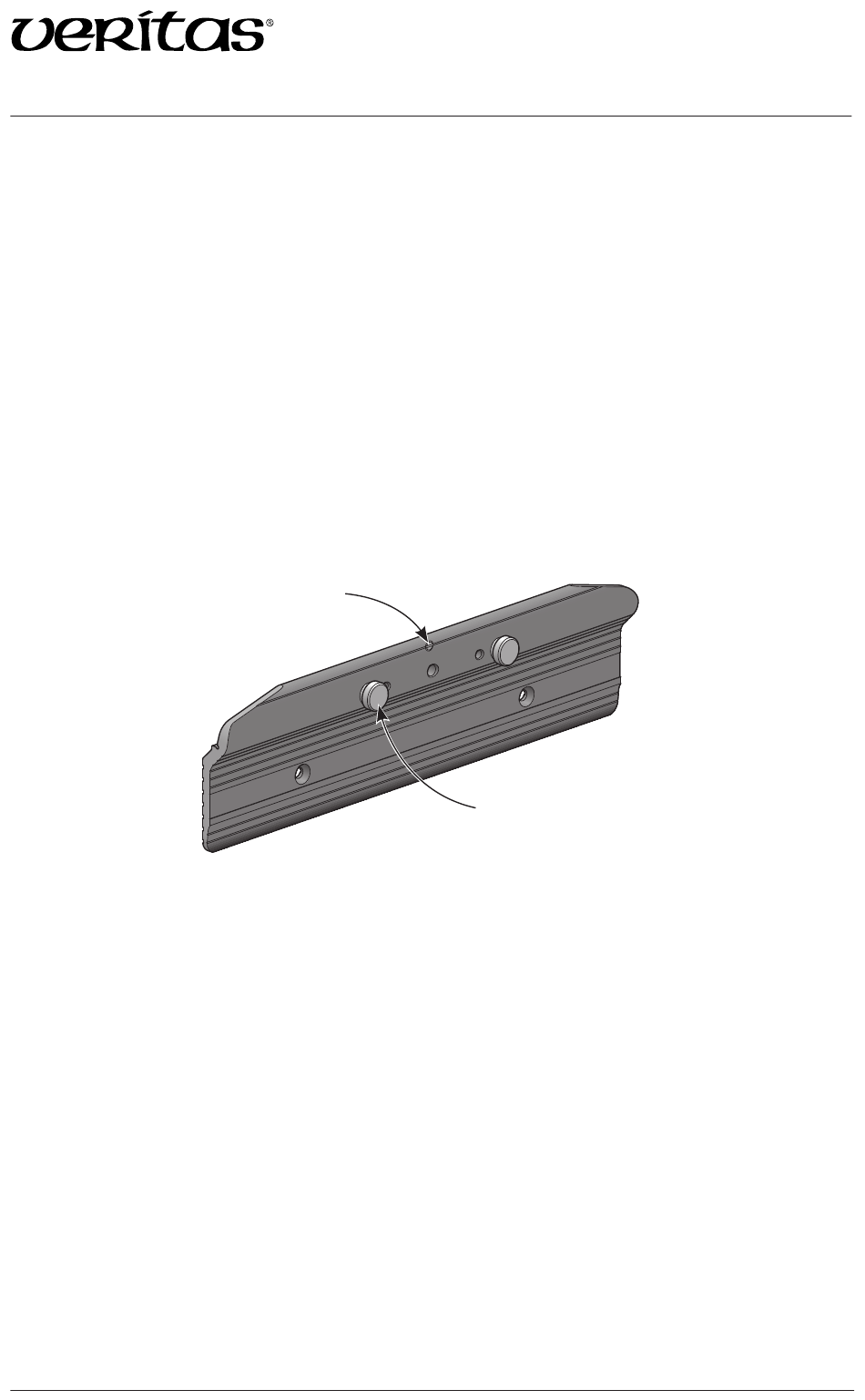

Figure 1: Fence components.
