OVERVIEW

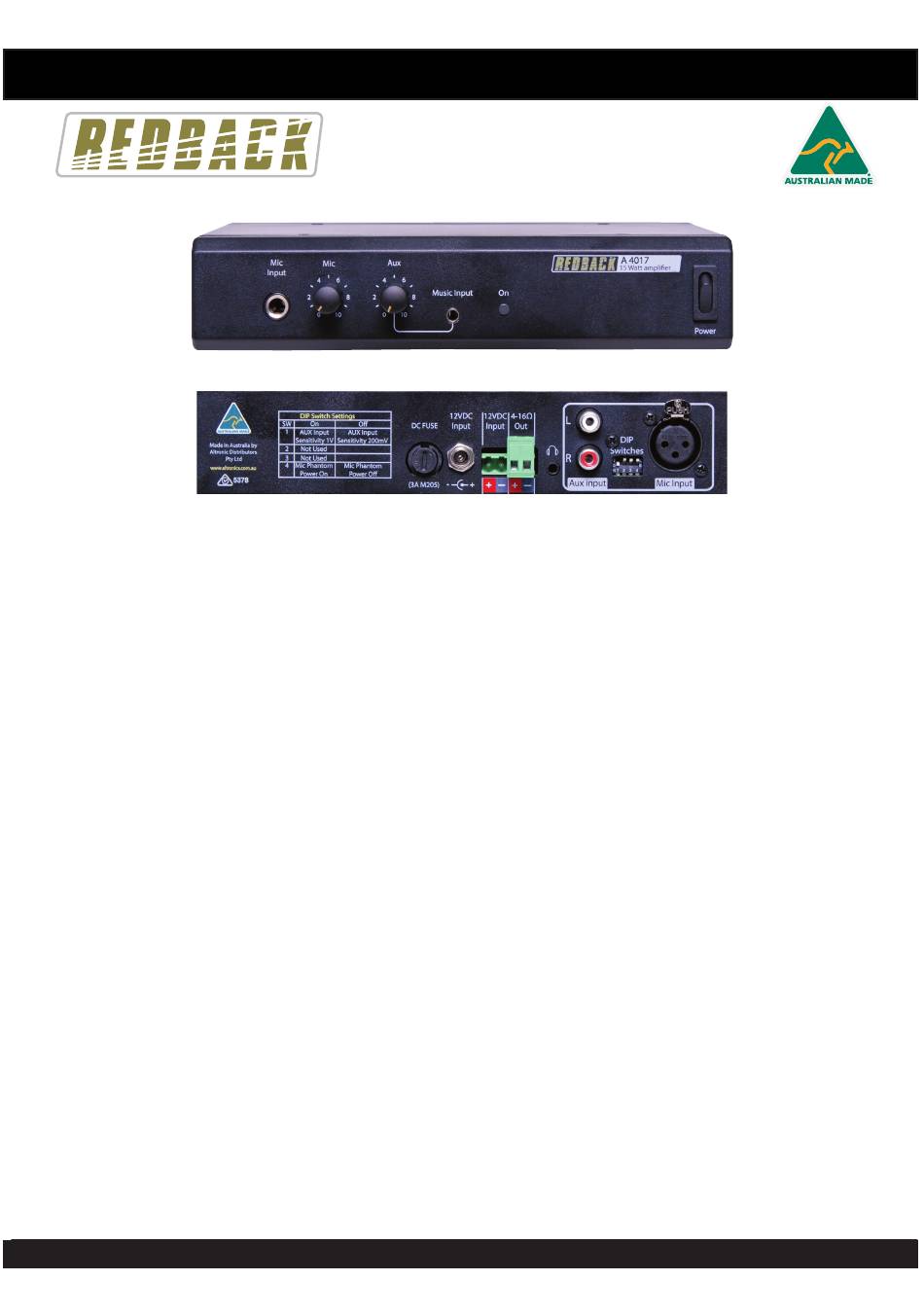

The redback A 4017 PA Amplifier is super compact and ideally suited to smaller PA System Installations. Designed around
the TDA1519C IC it offers virtual "destruction proof" operation even under severe misuse such as over voltage, over
temperature, over load and short circuit speaker line conditions. The amplifier is extremely stable even when microphone
and speaker cables are run together over long distances. The unit will automatically shutdown when overloaded and will
restore to normal operation when the fault is removed.
FEATURES
• 15W RMS Output
• 1 balanced XLR and unbalanced jack mic input
• 1 Auxiliary Input
• 4-16Ω Output
• 12V DC operation
POWER SUPPLY
The amplifier operates on 12V DC, which makes it suitable for use in vehicles which run of 12V DC. Ensure power is
switched OFF at the front panel before connecting power.
AUDIO CONNECTIONS
Audio input is via a 3 pin balanced XLR socket on the rear of the unit or a 6.5mm jack on the front of the unit, both of
which are for a low level Microphone Input. Both of these inputs are controlled by the Mic volume control on the front of
the unit. Phantom power is available for these inputs selectable by the DIP switches on the rear of the unit.
Dual RCA sockets on the rear of the amplifier, and a 3.5mm Jack input on the front of the amplifier for portable devices
such as mobile phones and music players, provide a line level audio input. Both of these inputs are controlled by the Aux
volume control on the front of the unit. The sensitivity of this input is selectable via the DIP switches on the rear of the
unit.
SPEAKER CONNECTIONS
Speakers with a total impedance or 4-16Ω may be connected to the terminals marked 4-16Ω on the rear of the amplifier.
The speaker outputs are internally protected by polyswitches which will disconnect the speaker line when over-driven.
Operating Manual
• Headphone Socket
• Selectable 12V DC Phantom Power on Mic Input
• Music Input on Front Panel
• Selectable Aux Input Sensitivity
• Power Status Indicator
User manual revision number: 1.2 16/05/2019
www.altronics.com.au
A 4017
15 Watt Amplifier
Redback® Proudly Made In Australia
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Redback A 4017
Summary of Contents for Redback A 4017
- Page 1 15 Watt Amplifier OVERVIEW The redback A 4017 PA Amplifier is super compact and ideally suited to smaller PA System Installations. Designed around the TDA1519C IC it offers virtual “destruction proof” operation even under severe misuse such as over voltage, over temperature, over load and short circuit speaker line conditions.

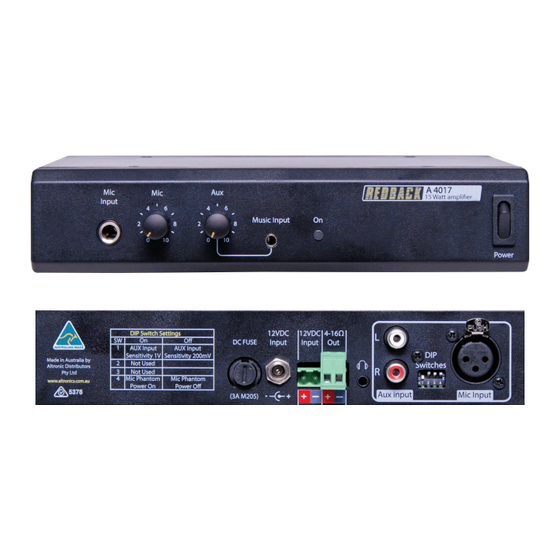

- Page 2 SETUP REAR PANEL GUIDE Fig 1 shows the layout of the A 4017 rear panel. 12VDC 12VDC 4-16 Ω DIP Switch Settings Input Input DC FUSE AUX Input AUX Input Sensitivity 1V Sensitivity 200mV Made in Australia by Switches Not Used...
- Page 3 Use this to turn the unit on. TROUBLE SHOOTING If the REDBACK 15W amplifier fails to deliver the rated performance, check the following: No Power, No Lights Make sure amplifier power switch is on. Check the DC fuse. Replace with only the correct type and rating. Over rated fuses will invalidate warranty.
- Page 4 Australian Made Status All Redback house products made by Altronics will now be sporting the official Australian Made logo. Since starting manu- facturing of commercial audio equipment in the mid 70’s we have always taken pride in producing a quality local product.
