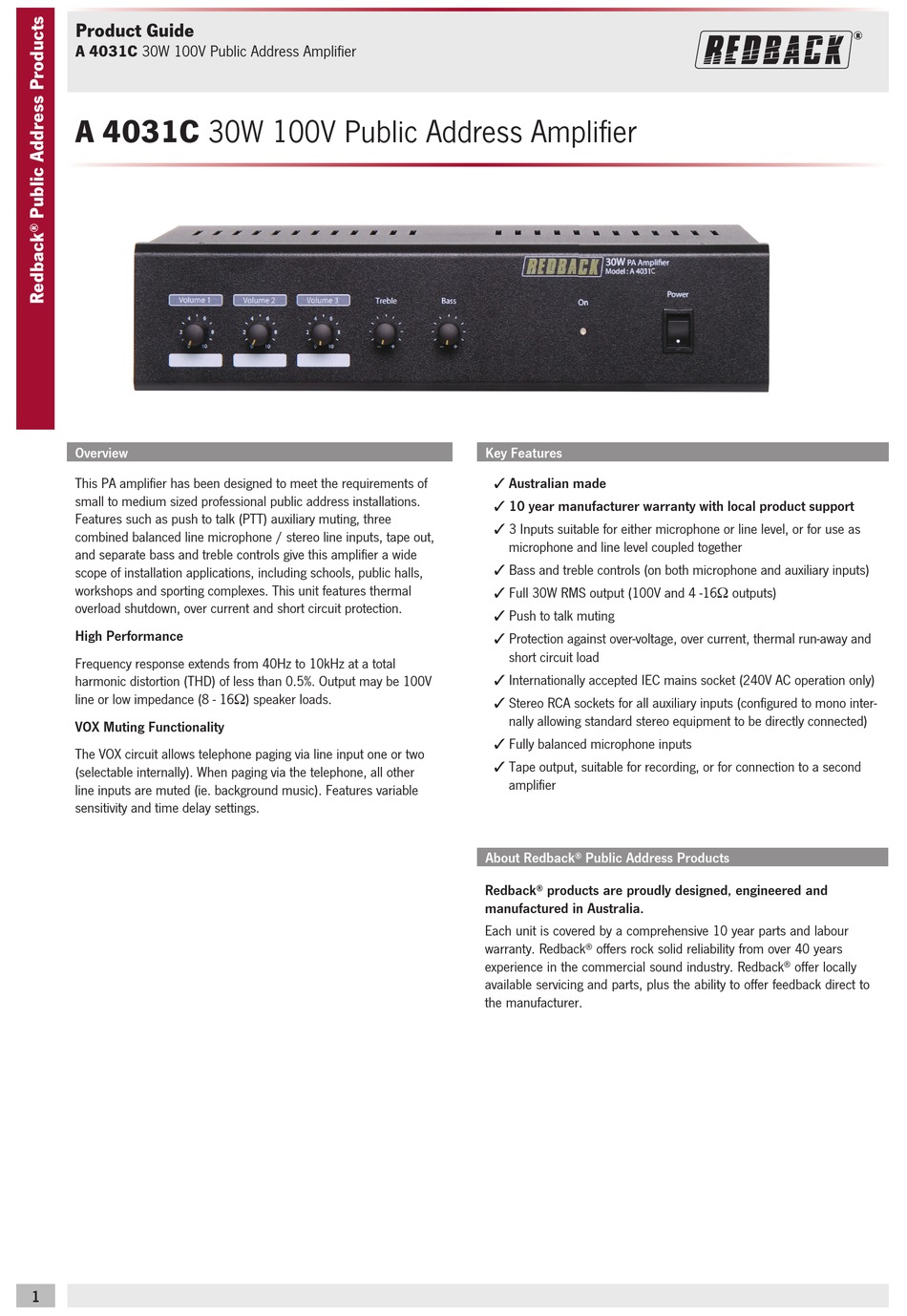

Product Guide
A 4031C 30W 100V Public Address Amplifier

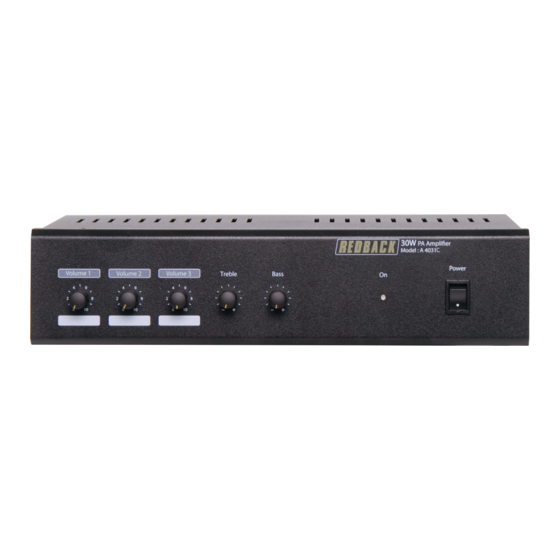

A 4031C 30W 100V Public Address Amplifier
Overview
This PA amplifier has been designed to meet the requirements of
small to medium sized professional public address installations.
Features such as push to talk (PTT) auxiliary muting, three
combined balanced line microphone / stereo line inputs, tape out,
and separate bass and treble controls give this amplifier a wide
scope of installation applications, including schools, public halls,
workshops and sporting complexes. This unit features thermal
overload shutdown, over current and short circuit protection.
High Performance
Frequency response extends from 40Hz to 10kHz at a total
harmonic distortion (THD) of less than 0.5%. Output may be 100V
line or low impedance (8 - 16Ω) speaker loads.
VOX Muting Functionality
The VOX circuit allows telephone paging via line input one or two
(selectable internally). When paging via the telephone, all other
line inputs are muted (ie. background music). Features variable
sensitivity and time delay settings.
1
Key Features
3 Australian made
3 10 year manufacturer warranty with local product support
3 3 Inputs suitable for either microphone or line level, or for use as
microphone and line level coupled together
3 Bass and treble controls (on both microphone and auxiliary inputs)
3 Full 30W RMS output (100V and 4 -16Ω outputs)
3 Push to talk muting
3 Protection against over-voltage, over current, thermal run-away and
short circuit load
3 Internationally accepted IEC mains socket (240V AC operation only)
3 Stereo RCA sockets for all auxiliary inputs (configured to mono inter-
nally allowing standard stereo equipment to be directly connected)
3 Fully balanced microphone inputs
3 Tape output, suitable for recording, or for connection to a second
amplifier
About Redback Public Address Products
®
Redback products are proudly designed, engineered and
®
manufactured in Australia.
Each unit is covered by a comprehensive 10 year parts and labour
warranty. Redback offers rock solid reliability from over 40 years
®
experience in the commercial sound industry. Redback
available servicing and parts, plus the ability to offer feedback direct to
the manufacturer.
®
offer locally
®
