Redback® 30W Public Address Amplifiers
A 4024
A 4026
Operating Manual

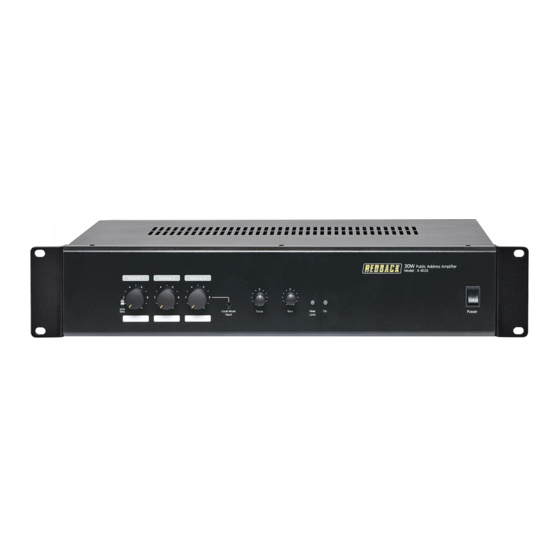

A 4024 30W Desk Mount Amplifier
A 4026 30W Rack Mount Amplifier
Redback® Proudly Made In Australia
Distributed by Altronic Distributors Pty. Ltd.
Phone: 1300 780 999 Fax: 1300 790 999 Internet: www.altronics.com.au
IMPORTANT NOTE:
Please read these instructions carefully from front to back prior to installation.
They include important setup instructions.
Failure to follow these instructions may prevent the amplifier from working as designed.
User manual revision number: 1.0 28/11/2022
www.redbackaudio.com.au
Redback® Proudly Made In Australia
1
Advertisement
Table of Contents
Related Manuals for Redback A 4024
Summary of Contents for Redback A 4024
- Page 1 Redback® 30W Public Address Amplifiers A 4024 A 4026 Operating Manual A 4024 30W Desk Mount Amplifier A 4026 30W Rack Mount Amplifier Redback® Proudly Made In Australia Distributed by Altronic Distributors Pty. Ltd. Phone: 1300 780 999 Fax: 1300 790 999 Internet: www.altronics.com.au IMPORTANT NOTE: Please read these instructions carefully from front to back prior to installation.
- Page 2 Redback® 30W Public Address Amplifiers FEATURES • 3 Inputs suitable for either microphone or line level, or for use as microphone and line level coupled together. • Bass and treble controls (on both microphone and auxiliary inputs). • Full 30W RMS output (100V and 4 -16Ω outputs).
- Page 3 Redback® 30W Public Address Amplifiers Speaker Outputs Screw terminals are provided for both VC (voice coil) and 100V outputs. Minimum impedance when only VC output is used is 8-16Ω @ 30W total load. A combination of 100V and VC is possible however we do not recommend this. If more than 30W is used then the unit may shut down due to overloading.
- Page 4 .............DC Fuse 2 x 3A (internal) Tape Output: ..........RCA Stereo Socket DIMENSIONS: ..............INPUT SENSITIVITY: A 4024: ........≈ 300W x 220D x 80H mm Mic 1:......2.6mV Balanced or 3.2mV Unbalanced A 4026: ........≈ 483W x 220D x 88H mm Mic 2:............2.6mV Balanced WEIGHT: ...........
