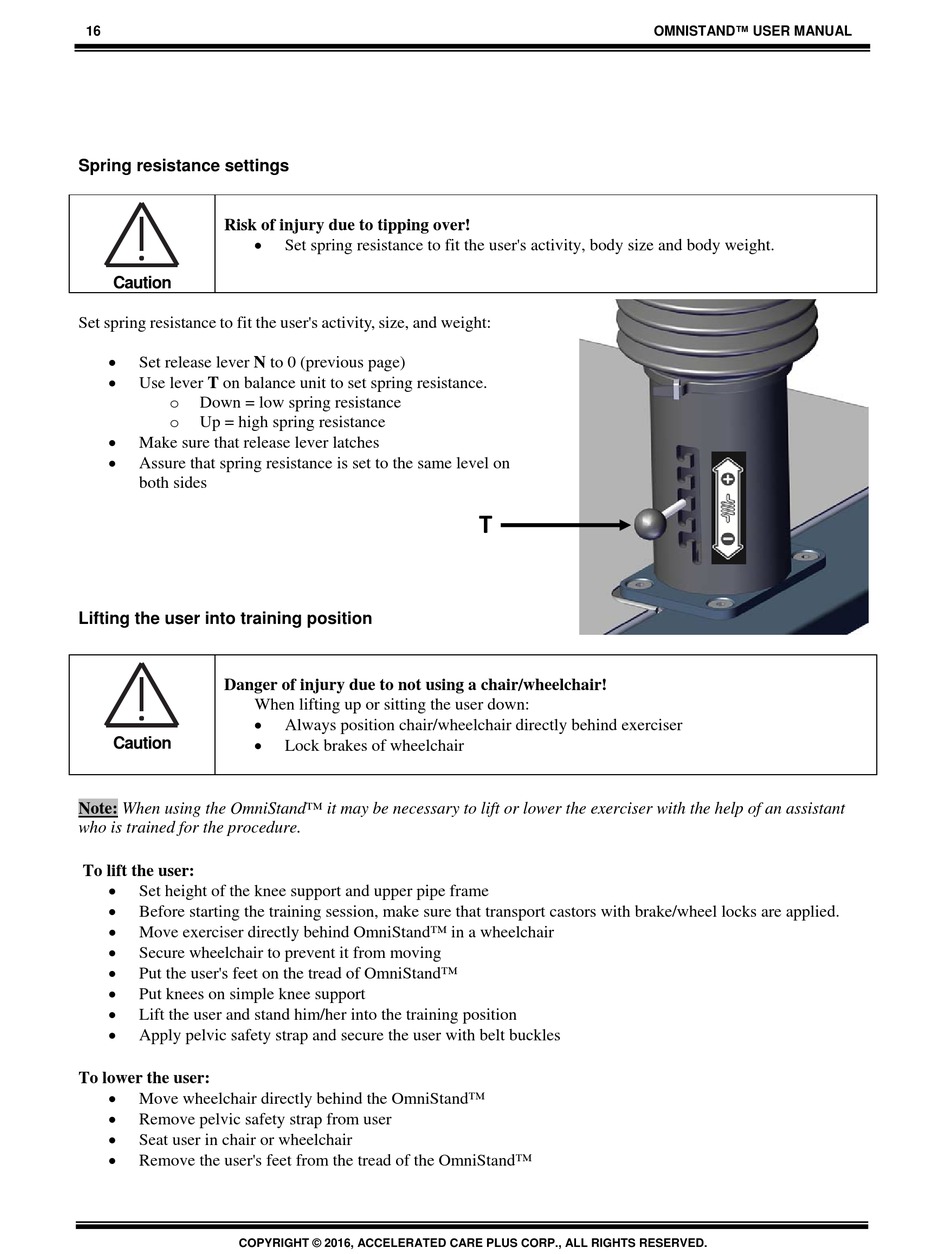

ACP OMNISTAND User Manual page 16

16
Spring resistance settings
Risk of injury due to tipping over!

Caution
Set spring resistance to fit the user's activity, size, and weight:

Set release lever N to 0 (previous page)

Use lever T on balance unit to set spring resistance.
Down = low spring resistance
o
Up = high spring resistance
o

Make sure that release lever latches

Assure that spring resistance is set to the same level on
both sides
Lifting the user into training position
Danger of injury due to not using a chair/wheelchair!
When lifting up or sitting the user down:


Caution
Note: When using the OmniStand™ it may be necessary to lift or lower the exerciser with the help of an assistant
who is trained for the procedure.
To lift the user:

Set height of the knee support and upper pipe frame

Before starting the training session, make sure that transport castors with brake/wheel locks are applied.

Move exerciser directly behind OmniStand™ in a wheelchair

Secure wheelchair to prevent it from moving

Put the user's feet on the tread of OmniStand™

Put knees on simple knee support

Lift the user and stand him/her into the training position

Apply pelvic safety strap and secure the user with belt buckles
To lower the user:

Move wheelchair directly behind the OmniStand™

Remove pelvic safety strap from user

Seat user in chair or wheelchair

Remove the user's feet from the tread of the OmniStand™
COPYRIGHT © 2016, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED.
Set spring resistance to fit the user's activity, body size and body weight.
Always position chair/wheelchair directly behind exerciser
Lock brakes of wheelchair
OMNISTAND™ USER MANUAL
T
