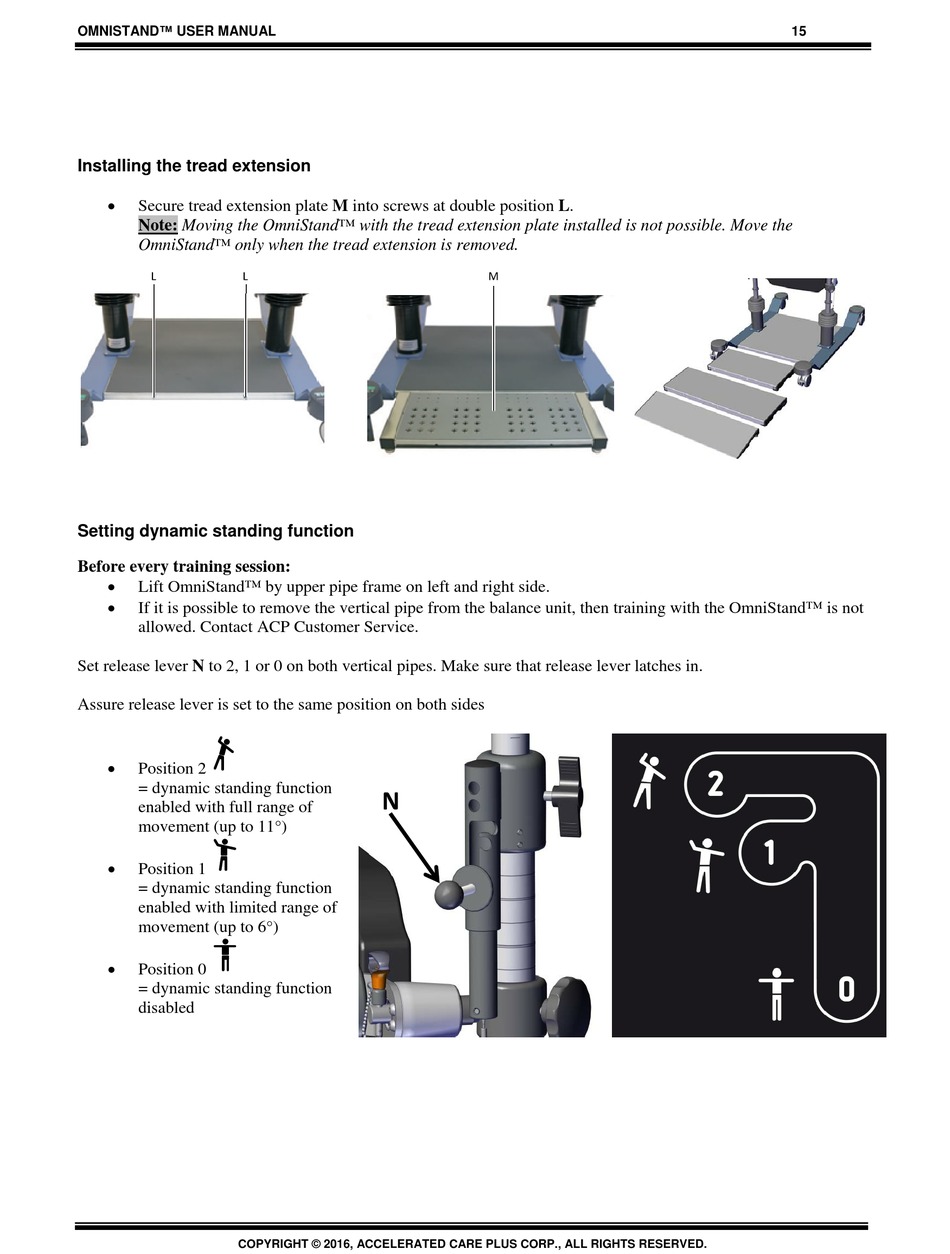

ACP OMNISTAND User Manual page 15

OMNISTAND™ USER MANUAL
Installing the tread extension

Secure tread extension plate M into screws at double position L.
Note: Moving the OmniStand™ with the tread extension plate installed is not possible. Move the
OmniStand™ only when the tread extension is removed.
Setting dynamic standing function
Before every training session:

Lift OmniStand™ by upper pipe frame on left and right side.

If it is possible to remove the vertical pipe from the balance unit, then training with the OmniStand™ is not
allowed. Contact ACP Customer Service.
Set release lever N to 2, 1 or 0 on both vertical pipes. Make sure that release lever latches in.
Assure release lever is set to the same position on both sides

Position 2
= dynamic standing function
enabled with full range of
movement (up to 11°)

Position 1
= dynamic standing function
enabled with limited range of
movement (up to 6°)

Position 0
= dynamic standing function
disabled
