Summary of Contents for Hisense XQB30-M328H

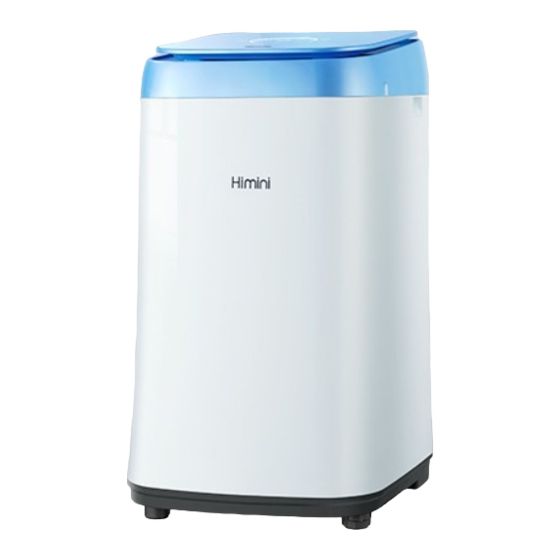

- Page 1 MODEL:XQB30-M328H...
- Page 2 Part Name Cover Frame Safety Cover Pulsator Back Cover Cabinet Power Cord Drain Hose Accessories Waterproof board Drain hose Water supply hose Safety cover + Hinge...
-
Page 3: Installation Instructions
Installation Instructions The installation of water inlet pipe Water inlet connection Connect the inlet hose supplied with the machine to a tap with a 3/4” thread. Do not use previously employed hoses. Installation should comply with local water authority and building regulations’ requirements. -
Page 4: Installation
Installation Install the drain hose Position the other end of the drain hose .It can be positioned in the three way . A . Over the edge of a wash basin .Secure the guide to the side of basin wall with a hook or to the tap with a piece of string to prevent the drain hose from moving . -
Page 5: Operation
Operation LED LIGHT Press the button to select delay time : 2-3-4-5-6-8-10 Press this button to select -12-16-20-24-0 (no reserve) water level :1-2-3-4 WATER PRESET LEVEL TIME Press this button select Press and hold this program : Normal, Soak , button 3 seconds Warm ,Hot , Boiling ,Speedy , Child Lock , use this... - Page 6 Operation BOILING SPEEDY RINSE SPIN WARM TUB SELF SOAK CLEAN WIFI indicator 1.Normal program---for washing normal clothes 2.Soak program---water temperature 30°C ,fit for washing dirty laundry more completely 3.Warm program--water temperature 40°C, fit for washing underwear 4.Hot program--water temperature 60°C, fit for washing cotton-padded clothes 5.Boiling program--water temerature 90°C, fit for washing the clothes need high-temperature sterilization 6.Speedy program--fit for washing slight dirty laundry...
- Page 7 Safety and Precautions Please read the following carefully . Prevent personal injury and prolong the service life of the machine. Because the water in the process of hot program and boiling program is hot , so there is a danger of scalding.In particular, children should be prevented from approaching this washing machine .
-
Page 8: Safety And Precautions
Safety and Precautions... - Page 9 Safety and Precautions...
-
Page 10: Troubleshooting
Troubleshooting Function of fault alarm and flash Sensor of water Exceptional Cause Solution lever series phenomenons Re-plug the power plug, The power plug is not plugged tight, No display press”POWER”button the Power switch is not switched Power socket no electricity or No display Check the power socket or fuse fuse disconnection... - Page 11 Specification XQB30-M328H Model No Voltage /Frequency Rated wash and spin capacity Water Level Water inlet pressure Rated input power heating power Net Weight 390*420*720mm Product size Noise Noise Unbalance adjustment function If the clothes are placed unevenly in the inner tub during spinning , it will cause vibration.
