Connecting to DHW hot water tank
If the demand for domestic hot water is so great that the Compact P unit's heat pump cannot cope, the AIR unit can be connected to the
DHW tank's solar coil to help heat up the domestic hot water.

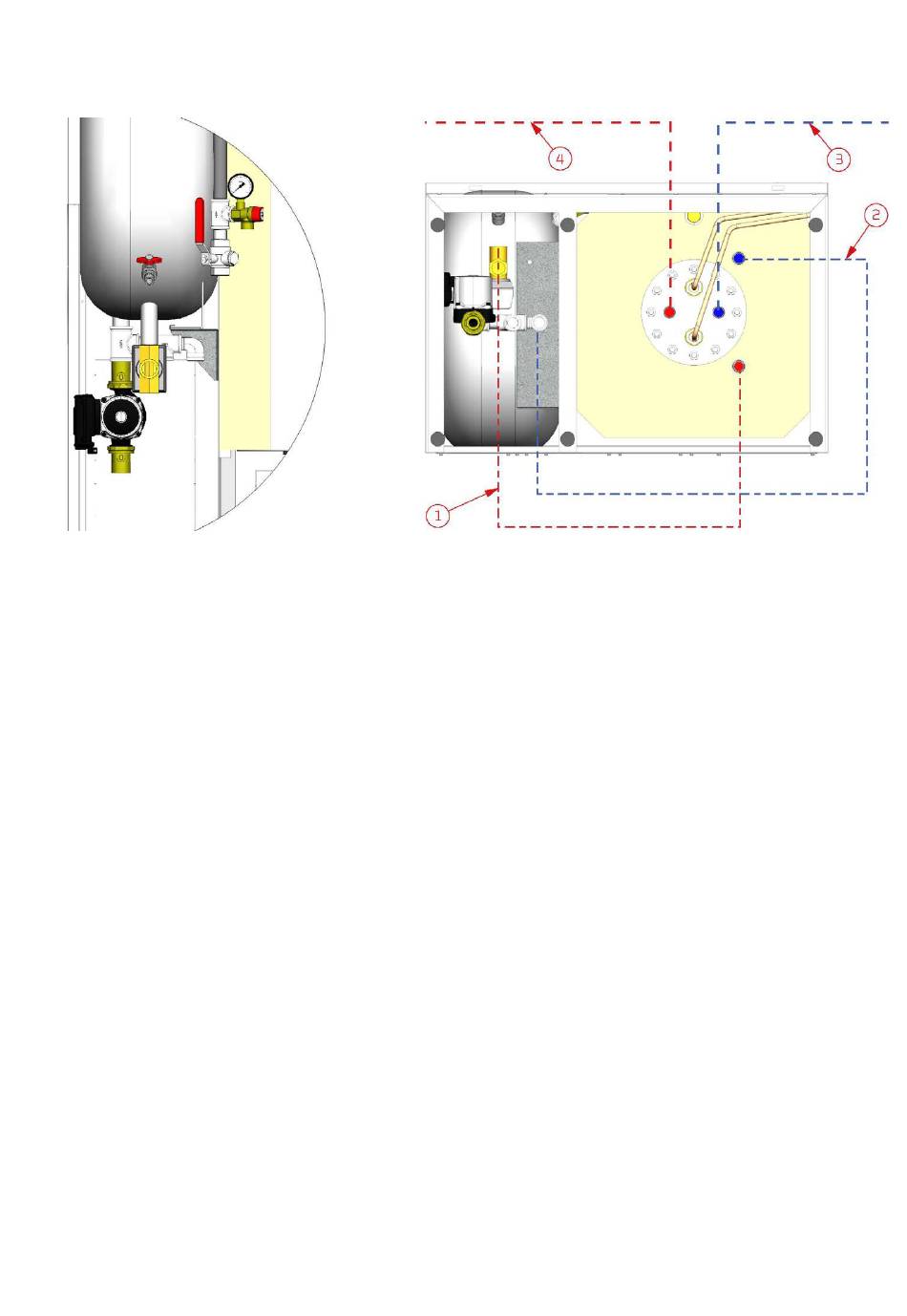

AIR front
AIR bottom
DHW tank bottom
1. Supply to the solar coil in the DHW container from the AIR heat pump
2. Return flow from the solar coil in the DHW tank to the AIR heat pump
3. Connection for domestic cold water supply
4. Supply flow of domestic hot water from the DHW tank
53
