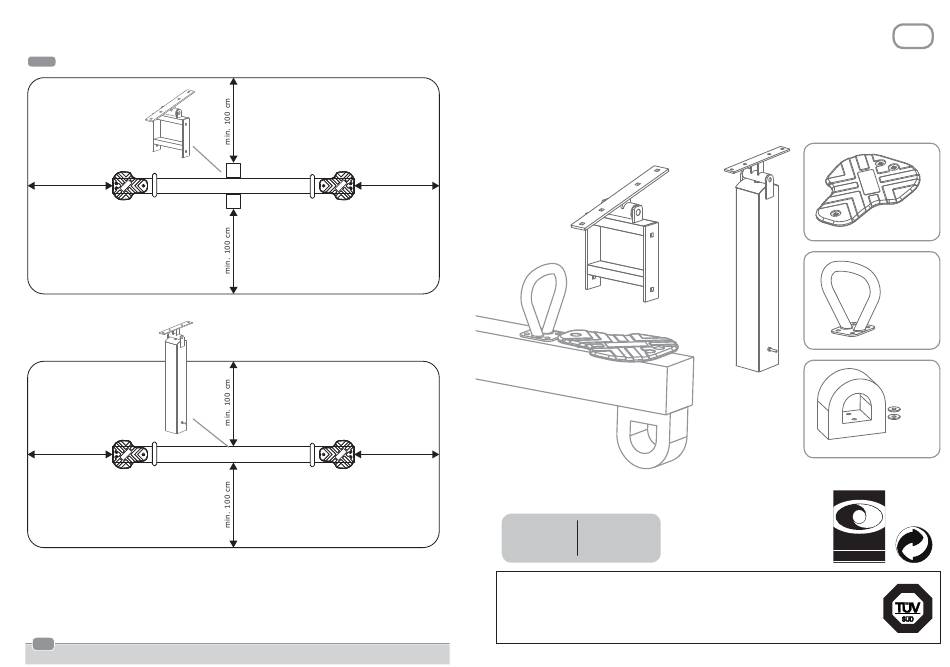

FIG I
(1)
min. 100 cm
(2)
min. 100 cm
20
Instructions for use
seesaw
Gebruiksaanwijzing
wipplank
Mode d'emploi
balançoire à bascule
Gebrauchsanweisung
Wippe
min. 100 cm

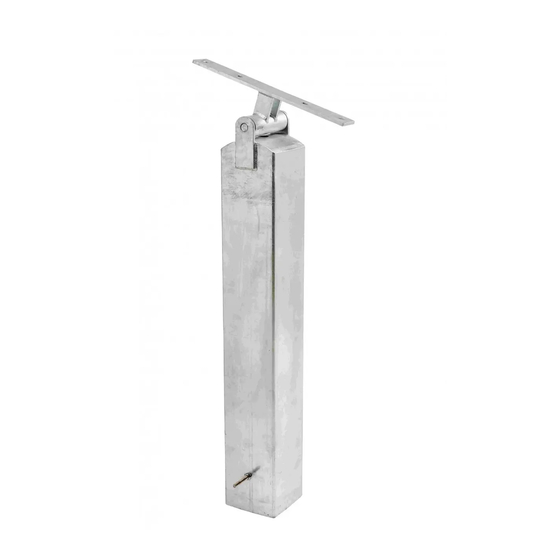

261.020.010.001
min. 100 cm
KBT nv
Hemelrijken 8
2890 Sint-Amands
BELGIUM
Remark:
The TÜV certifi cate is only valid when the construction is built with all the KBT components above.
Opmerking: Het TÜV certifi caat is enkel geldig wanneer de constructie is opgebouwd met alle bovenstaande KBT producten.
Remarque:
Le certifi cat TÜV est seulement valable lorsque la construction est construit avec les produits KBT mentionnés ci-dessus.
Anmerkung: Das TÜV Zertifi kat ist nur gültig wenn die Konstruktion mit allen obengenannten KBT Produkten aufgebaut ist.
Observación: El certifi cado TUV solo es válido cuando se construye con todos los componentes KBT que se ven arriba.
Nota:
Il certifi cato TUV è valido solo quando si è costruito con tutti i componenti che sono kBT asopra.
uwaga:
Certyfi kat TUV obowiązuje przy zastosowaniu wyłącznie oryginalnych części konstrukcyjnych fi rmy KBT.
Modo de empleo
balancín
Instruzioni per l'uso
bilico
Instrukcja użytkowania
huśtawka wagowa
261.020.020.001
KBT Polska sp. z o.o.
ul. M. Konopnickiej 6
00-491 Warszawa
POLAND
Instructions for use - M26x.02 - seesaw
26x.
260.020.006.001
262.010.010.001
263.010.006.001
INTERSEROH
RECYCLING
Hersteller-Nr. 118705
