3 Connections

Make.the.following.connection.to.use.this.
product.
Connecting to a TV
Connect.the.product.to.TV.to.view.disc.play,.
Select. the. best. video. connection. that. TV.
can.support:
Option 1:.Connect.to.the.composite.video.
jack(VIDEO)
Option 2:.Connect.to.the.HDMI.Jack

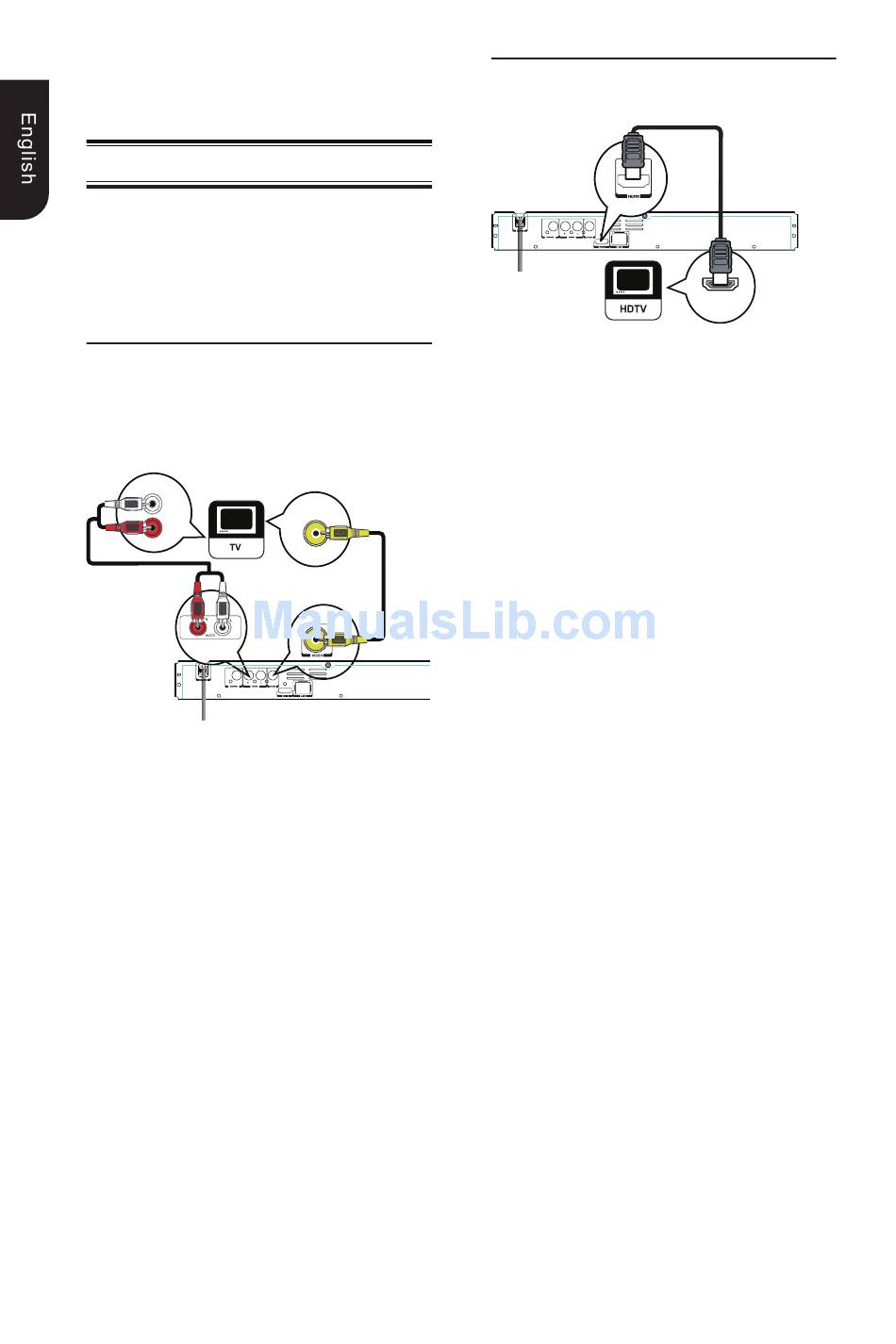

Option 1: Connect to the composite
video jack (VIDEO)
You. can. connect. this. product. to. a. TV.
through. the. composite. video. cable. which.
provides.standard.picture.quality.
AUDIO IN
1..Connect.a.composite.cable.from.the.
VIDEO.OUTPUT.jack.and.analogue.AUDIO.
OUTPUT.jacks.on.this.product.to.the.video.
input jack(yellow) and audio input
jacks(white/red) on the TV.
Note:
-Connect this unit directly to the TV. If the
composite Audio / video cables are connected
to a VCR, pictures may be distorted due to the
copy right protection system.

VIDEO IN
Option 2: Connect to the HDMI Jack
This.type.of.connection.provides.better.
picture.quality
1..Connect.a.HDMI.cable.from.the.HDMI.
output.jack.on.this.product.to.the.HDMI.
input.jack.on.the.TV.
Notes:
– If the TV has a DVI connector only, connect
via an HDMI/DVI adapter. Connect an audio
cable for sound output.
– You can optimize the video output by
pressing the HDMI button repeatedly to select
the best resolution which the TV can support.
– When the player is connected to both VIDEO
OUTPUT jack and HDMI OUTPUT jack, resolution is
set to 720p/1080i/1080p, there will be no video
output through VIDEO OUTPUT jack.
HDMI IN
