Arjohuntleigh Auto Logic Quick Reference Manual

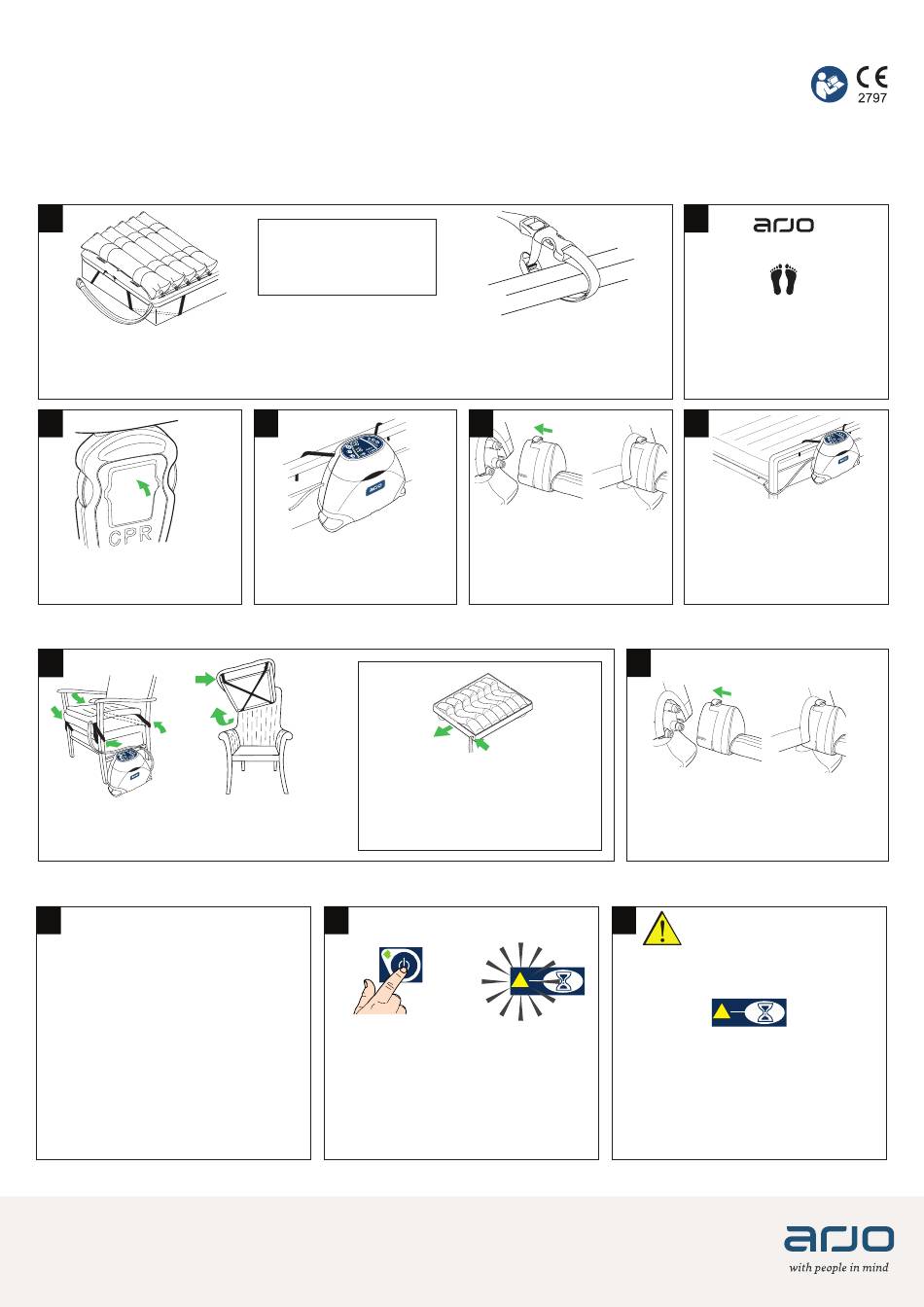

QUICK REFERENCE GUIDE - USE

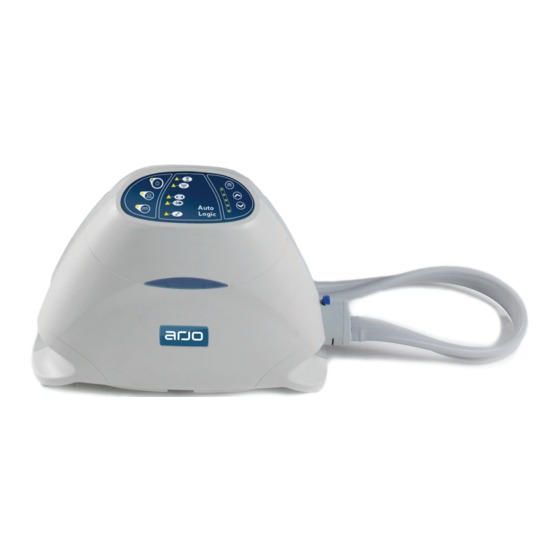

Auto Logic
Install mattress overlay or mattress replacement and pump
1
Mattress overlay:
Place on top of base mattress.
Use the 4 corner straps to secure.
3
"Click"
CPR unit is clicked into
closed position.
Install seat cushion and pump
1
Seat cushion:
Place on chair surface.
Use the fixing straps to attach.
Quick start
1
• Pump and mattress or seat
cushion installed correctly.
• CPR control is clicked into closed
position.
• Pump self check:
Beep - 10 seconds - beep - ready
to use.
• tubeset at foot end
• CPR at head end
• cells facing up
Mattress replacement:
Place on bed base.
Use the 8 straps to attach to
moving parts of bed frame.
4
Position the pump on
a horizontal surface or
hang from bed foot rail.
Front of chair
• cells facing up
• tubeset at front right corner
• cells horizontal across chair,
V-shape towards front
2
Press Run/Standby button.
Wait until fully inflated:
Mattress overlay: 7 minutes
Mattress replacement: 15
minutes
Seat cushion: 3 minutes
630937EN_01 • 06/2020 • Page 1/2
5
Connect the tubeset.
Insert the mains power
plug into mains power
socket.
2
Back of chair
Connect the tubeset.
Insert the mains power plug into
mains power socket.
3
Once the Wait indicator turns off,
place bed sheet on mattress and
place patient on the mattress or
seat cushion.
The default setting is Active
mode (alternating pressure).
2
Auto Logic
Zip the protective cover
over the mattress with
the Arjo logo at the foot
end.
6
Run mains power cable
along side of mattress.
Secure the flap round
the cable using the press
studs.
WARNING
CPR control must be
visible and accessible at
all times.
