Decware Zen Triode Preamp Owner's Manual page 8

O W N E R S M A N U A L
! !

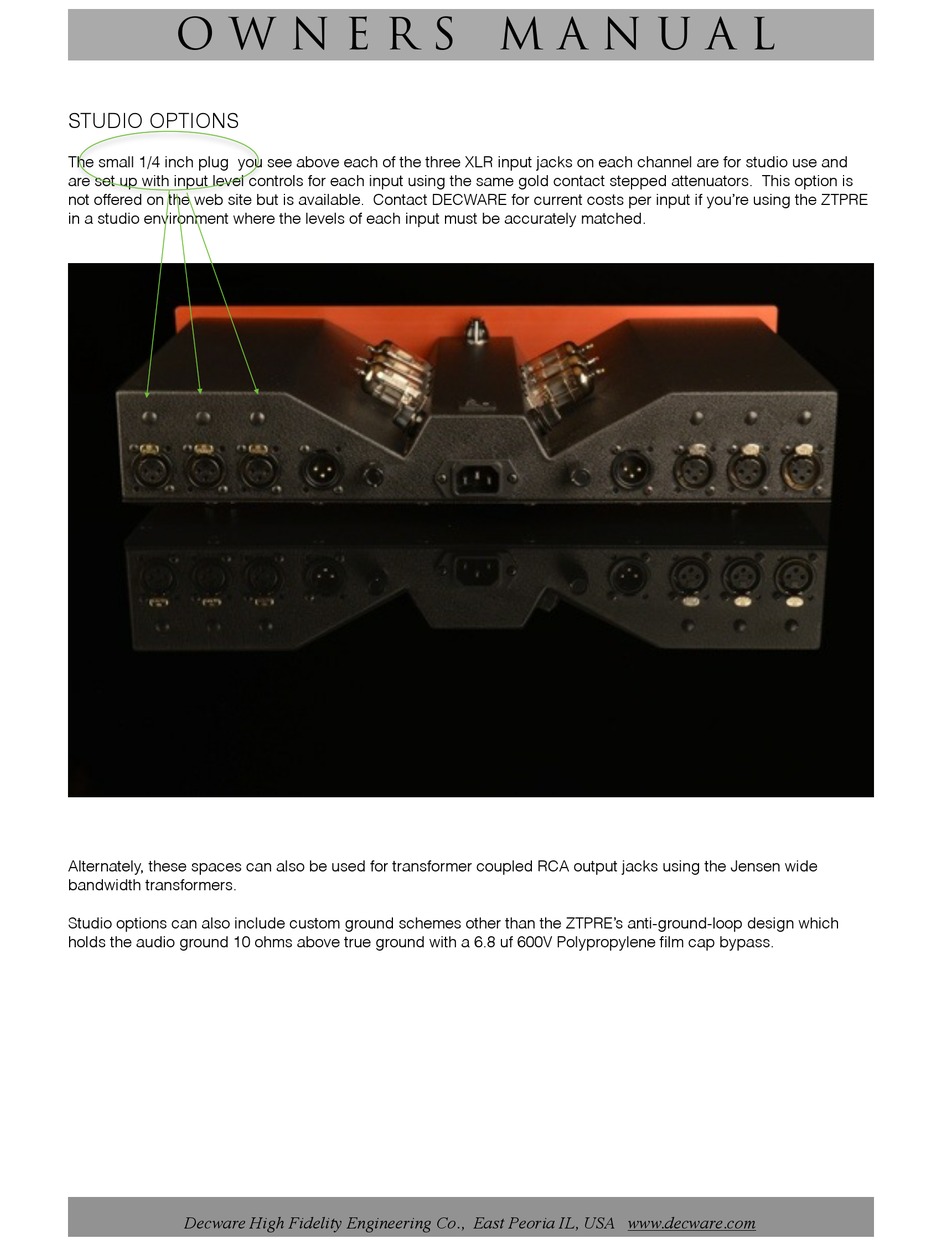

STUDIO OPTIONS
!
The small 1/4 inch plug you see above each of the three XLR input jacks on each channel are for studio use and
are set up with input level controls for each input using the same gold contact stepped attenuators. This option is
not offered on the web site but is available. Contact DECWARE for current costs per input if you're using the ZTPRE
in a studio environment where the levels of each input must be accurately matched.
! !
Alternately, these spaces can also be used for transformer coupled RCA output jacks using the Jensen wide
!
bandwidth transformers.
Studio options can also include custom ground schemes other than the ZTPRE's anti-ground-loop design which
! !
holds the audio ground 10 ohms above true ground with a 6.8 uf 600V Polypropylene film cap bypass.
! !
! !
! !
!
