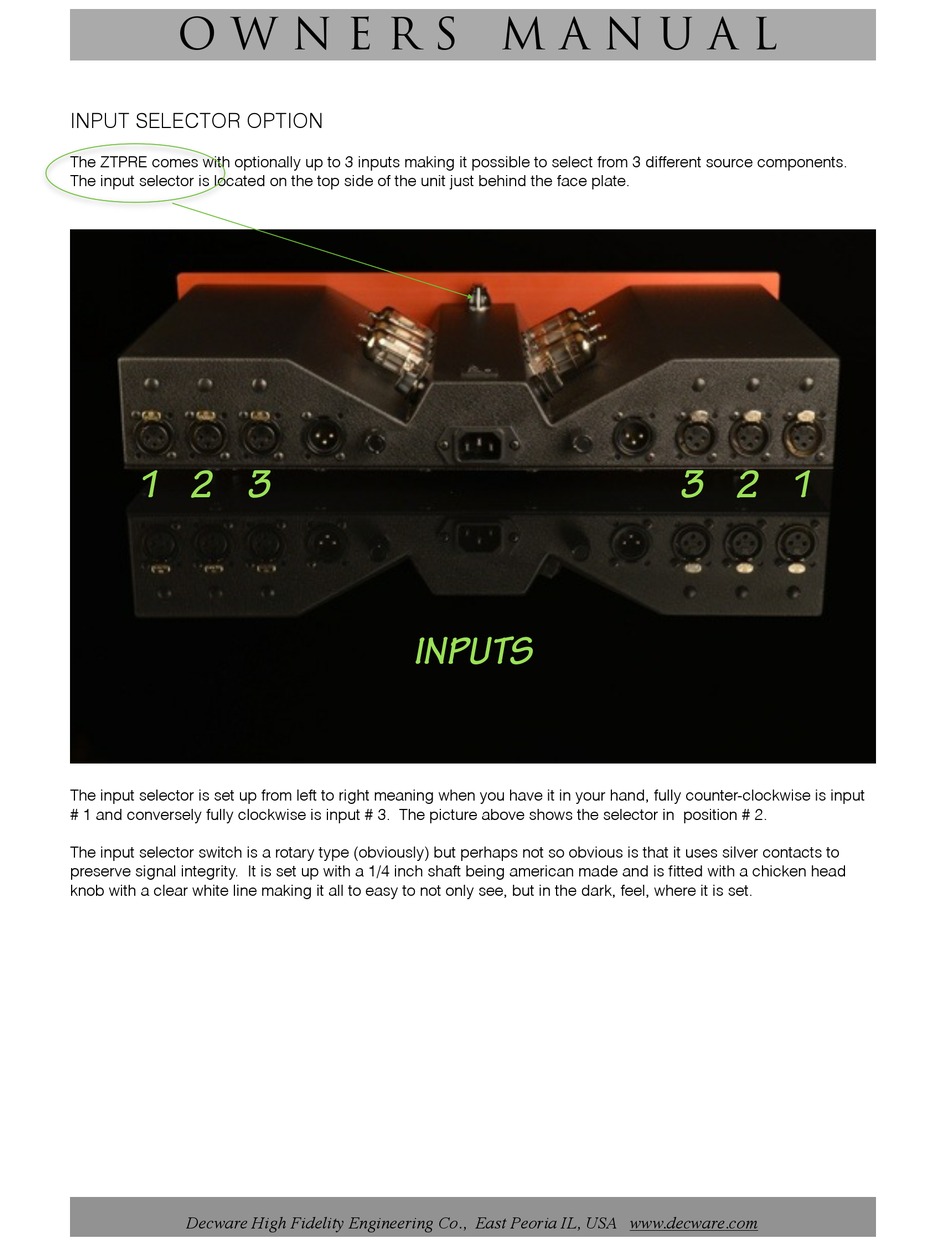

Decware Zen Triode Preamp Owner's Manual page 5

O W N E R S M A N U A L
! !
INPUT SELECTOR OPTION
!
The ZTPRE comes with optionally up to 3 inputs making it possible to select from 3 different source components.
!
The input selector is located on the top side of the unit just behind the face plate.
1 2 3 3 2 1
INPUTS
The input selector is set up from left to right meaning when you have it in your hand, fully counter-clockwise is input
!
# 1 and conversely fully clockwise is input # 3. The picture above shows the selector in position # 2.
The input selector switch is a rotary type (obviously) but perhaps not so obvious is that it uses silver contacts to
preserve signal integrity. It is set up with a 1/4 inch shaft being american made and is fitted with a chicken head
! !
knob with a clear white line making it all to easy to not only see, but in the dark, feel, where it is set.
Decware High Fidelity Engineering Co., East Peoria IL, USA www.decware.com
