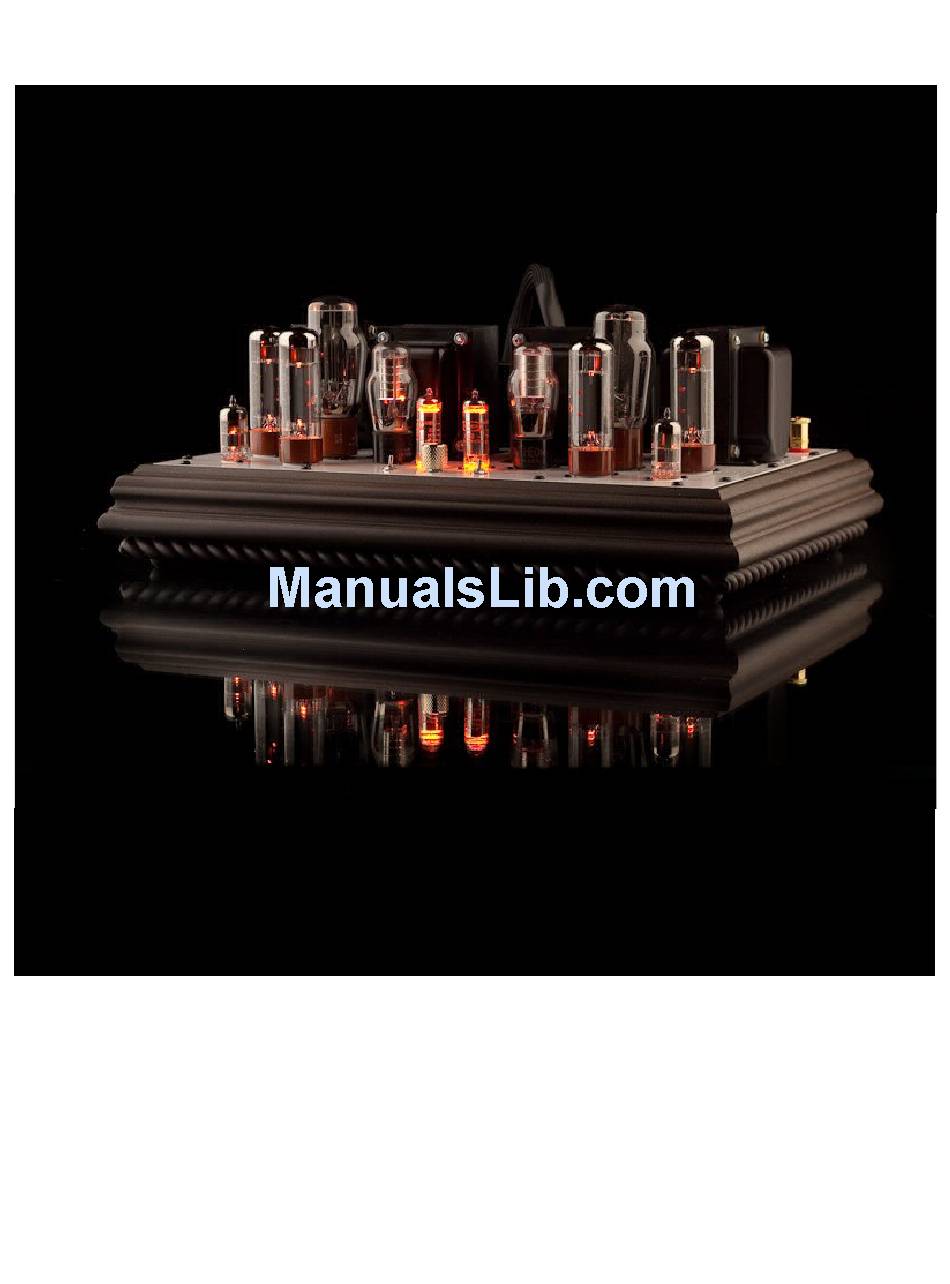

- Page 1 DECWARE ZEN TORII MK III MANUAL Zen Torii Amplifier 26watts dual mono Push Pull Class A amplifier Manufactured by High Fidelity Engineering Co. WWW.DECWARE.COM...
-
Page 2: Getting Started
ZEN TORII MK III MANUAL GETTING STARTED The TORII MKIII is two completely separate mono amplifies built side by side into the same chassis. The only common thing they share is the power cord and front mounted gain control. This amplifier was built in two halves. Each half is a mirror image of the other. This includes the jacks on the back and even all the parts on the inside. - Page 3 The input switch (located to the left of the gain control) switches between the inside and outside pair of input jacks. For example, on the left pair of input jacks, use the right hand jack and on the right pair of input jacks use the left hand jack. Manufactured by High Fidelity Engineering Co. WWW.DECWARE.COM...
-
Page 4: Tube Substitutions
Which sounds better will depend on your loudspeakers and room acoustics. The EL34 will be biased slightly warm sounding in the high position and neutral sounding in the lower setting. Manufactured by High Fidelity Engineering Co. WWW.DECWARE.COM... - Page 5 TREBLE & BASS CONTROL The treble and bass controls for each channel are less than conventional. The treble control is a simple shunt to ground meaning it's not in the signal path. It was designed Manufactured by High Fidelity Engineering Co. WWW.DECWARE.COM...
- Page 6 Many users will find the transparency of the TORII MKIII to be so spectacular that only the finest preamps will preserve it... this is why we designed the amp with a gain control so that it can be used straight up with any line level source.
- Page 7 You can't spend enough money on a source to hear how good the amplifier actually is, so each time you upgrade your source the amp will blow your mind all over again. Manufactured by High Fidelity Engineering Co. WWW.DECWARE.COM...
-
Page 8: Maintenance
The amp is self-biasing so there is no maintenance or adjustments to make after you install new tubes. Manufactured by High Fidelity Engineering Co. WWW.DECWARE.COM... -
Page 9: Service And Repair
26 reasons that could have created this effect and would be pleased to offer some free consulting. There are also over 100 articles written on the web site to this effect and active support forums for you to participate in. Manufactured by High Fidelity Engineering Co. WWW.DECWARE.COM... -
Page 10: Specifications
WARRANTY: LIFETIME TO ORIGINAL OWNER / 90 DAYS ON TUBES SHIPS WITH: PREMIUM MATCHED WINGED "C" EL34 OUTPUT TUBES SOVTEK 5Y3GT or 5U4 RECTIFIERS 6922, 6DJ8, 6N1P PREMIUM INPUT TUBES ATION N.O.S. VOLTAGE REGUL REMOVABLE POWER CORD Manufactured by High Fidelity Engineering Co. WWW.DECWARE.COM... - Page 11 Doubling the number of stages and parts is seldom a good way of preserving transparency. With the push pull topology used in the TORII MKIII we are able to drive the output stage with a single tube and only one coupling cap. In fact the parts count in the signal path is the same as our 2 watt Zen Triode amp, 1 capacitor and 2 resistors.
- Page 12 My only wish is that this amp become your spaceship so that it takes you to some of the out-of-body locations it has taken me, reduce you level of stress and improve your health for your entire lifetime without disappointments. Steve Deckert Manufactured by High Fidelity Engineering Co. WWW.DECWARE.COM...
