Cabling when using cable joint

Copyright © 2019 Labkotec Oy

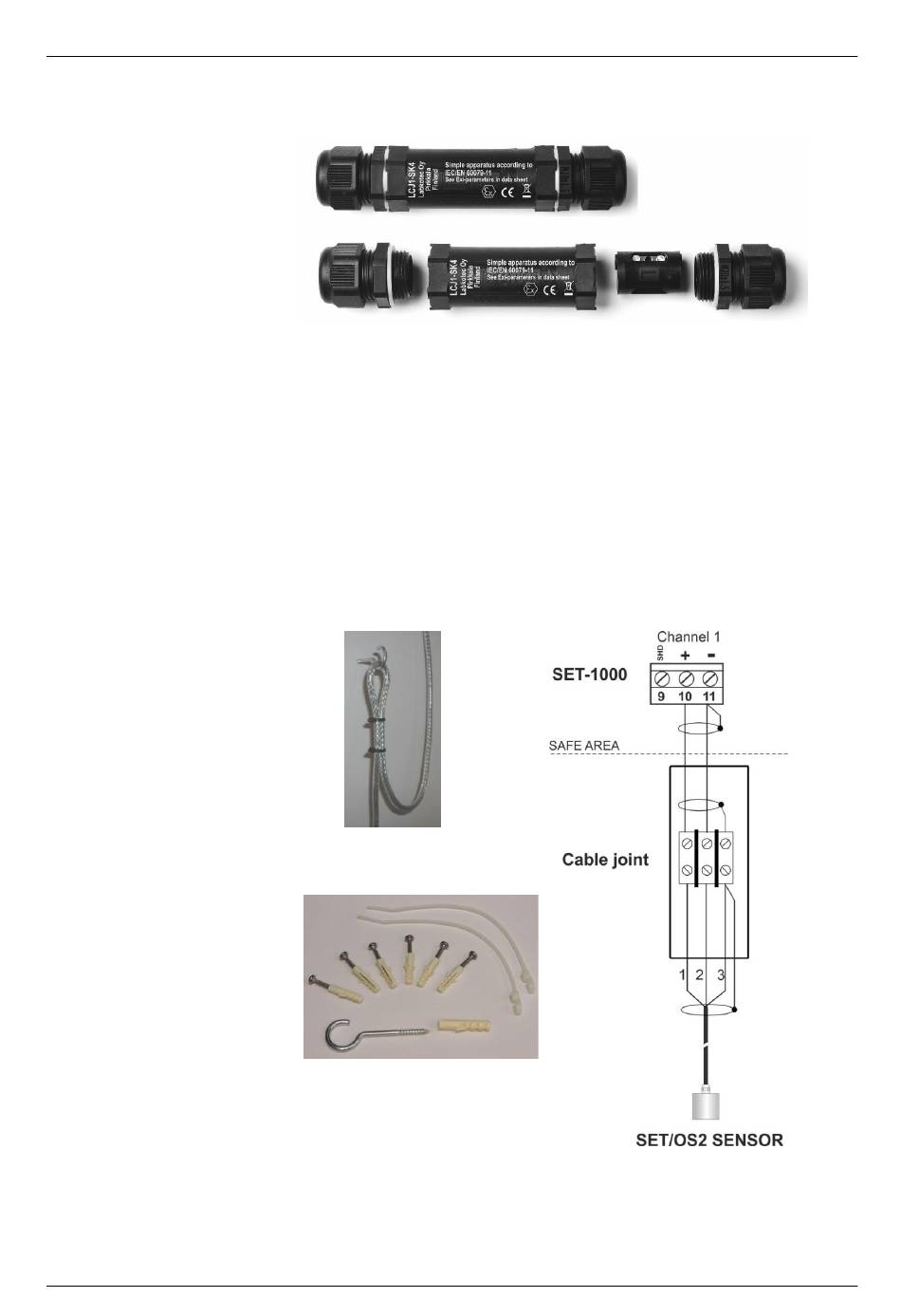

Figure 5. Cable joint
Connections of the sensor cable inside the cable joint are explained in
figure 8. Cable shields and possible excess wires need to be connected
to the same point in galvanic contact.
Please make sure, that the sensor and cable between SET-1000 control
unit and the sensor do not exceed the maximum allowed electrical
parameters – see appendix 1 Technical data.
IP rating of the cable joint is IP68. Make sure, that the cable joint is closed
properly.
If the sensor cable must be extended and there is a need for equipotential
grounding, it should be done with the junction box LJB2. The cabling
between the SET-1000 control unit and the junction box should be done
with a shielded twisted pair instrument cable.
Figure 6.
Cable installation example
Figure 7.
Installation accessories
6/14
Figure 8.
Level sensor cabling with a
cable joint for cable extension.
