INSTALLATION

Copyright © 2019 Labkotec Oy
The SET-1000 can be wall-mounted. The mounting holes are located in
the base plate of the enclosure, beneath the mounting holes of the front
cover.
The connectors of the external conductors are isolated by separating
plates. The plates must not be removed. The plate covering the
connectors must be installed back after executing cable connections.
The cover of the enclosure must be tightened so, that the edges touch
the base frame. Only then do the push buttons function properly and the
enclosure is tight.
Before installation, please read the safety instructions in chapter 6 !

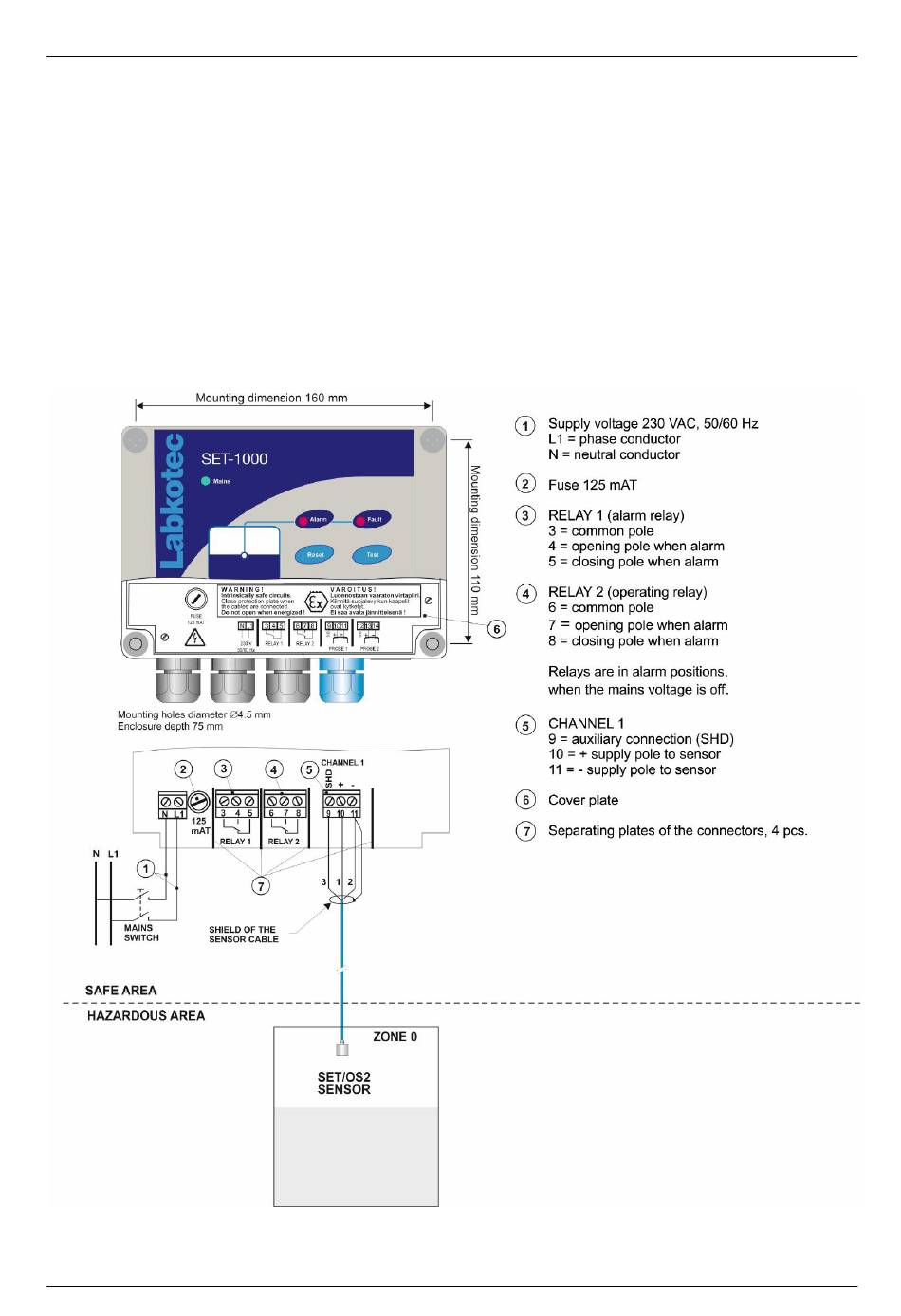

Figure 3. SET-1000 installation and connections of SET/OS2
sensor.
