APPENDICES

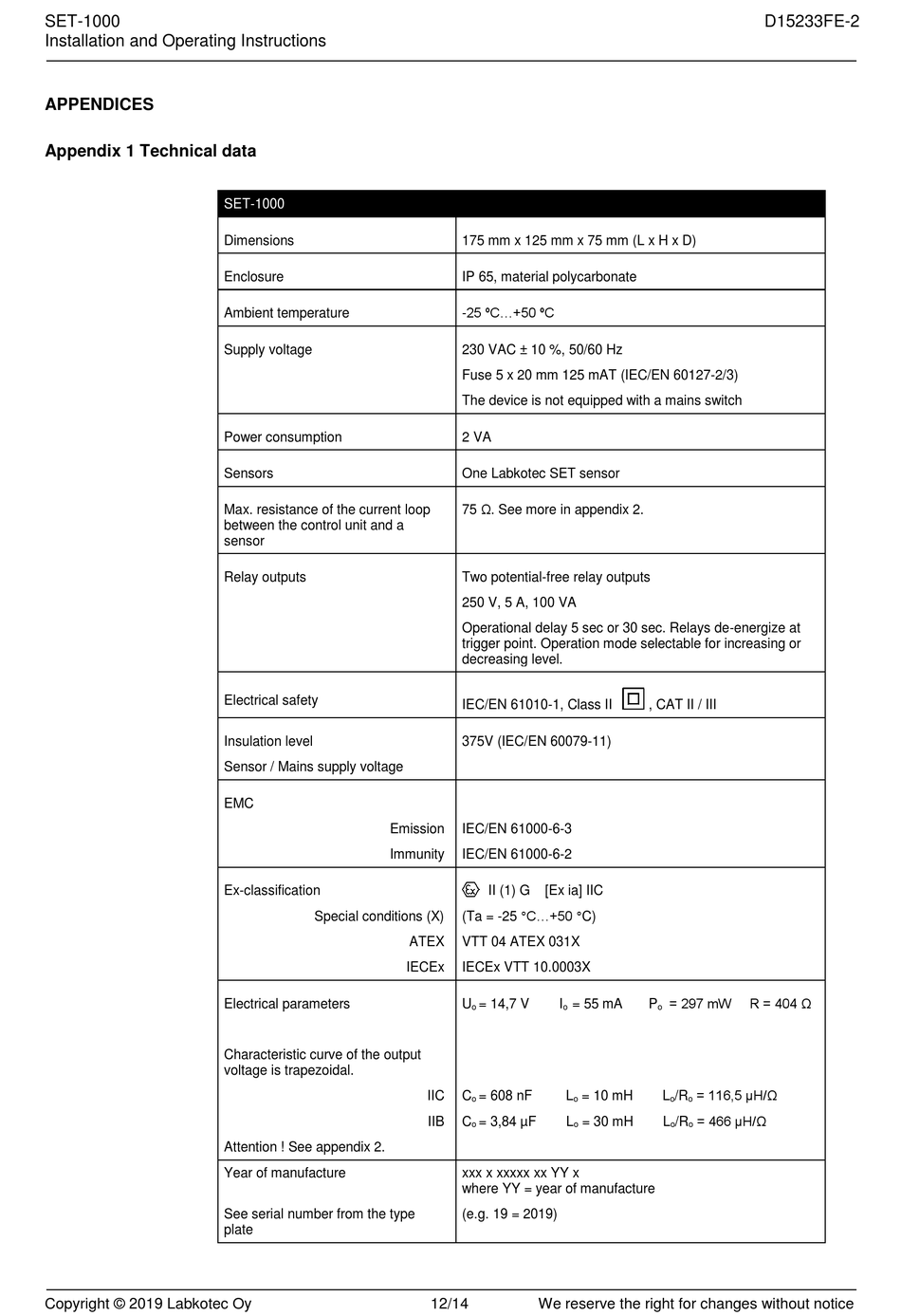

Appendix 1 Technical data

Copyright © 2019 Labkotec Oy
SET-1000
Dimensions
Enclosure
Ambient temperature
Supply voltage
Power consumption
Sensors
Max. resistance of the current loop
between the control unit and a
sensor
Relay outputs
Electrical safety
Insulation level
Sensor / Mains supply voltage
EMC
Emission
Immunity
Ex-classification
Special conditions (X)
Electrical parameters
Characteristic curve of the output
voltage is trapezoidal.
Attention ! See appendix 2.
Year of manufacture
See serial number from the type
plate
175 mm x 125 mm x 75 mm (L x H x D)
IP 65, material polycarbonate
-25 ºC...+50 ºC
230 VAC ± 10 %, 50/60 Hz
Fuse 5 x 20 mm 125 mAT (IEC/EN 60127-2/3)
The device is not equipped with a mains switch
2 VA
One Labkotec SET sensor
75 Ω. See more in appendix 2.
Two potential-free relay outputs
250 V, 5 A, 100 VA
Operational delay 5 sec or 30 sec. Relays de-energize at
trigger point. Operation mode selectable for increasing or
decreasing level.
IEC/EN 61010-1, Class II
375V (IEC/EN 60079-11)
IEC/EN 61000-6-3
IEC/EN 61000-6-2
II (1) G [Ex ia] IIC
(Ta = -25 C...+50 C)
ATEX VTT 04 ATEX 031X
IECEx IECEx VTT 10.0003X
U = 14,7 V I = 55 mA
o o
IIC C = 608 nF L
o o
IIB C = 3,84 µF L
o o
xxx x xxxxx xx YY x
where YY = year of manufacture
(e.g. 19 = 2019)
12/14 We reserve the right for changes without notice
, CAT II / III
= 297 mW R = 404 Ω
P
o
= 116,5 µH/Ω
= 10 mH L /R
o o
= 466 µH/Ω
= 30 mH L /R
o o
D15233FE-2
