Traxxas 6814 Instructions

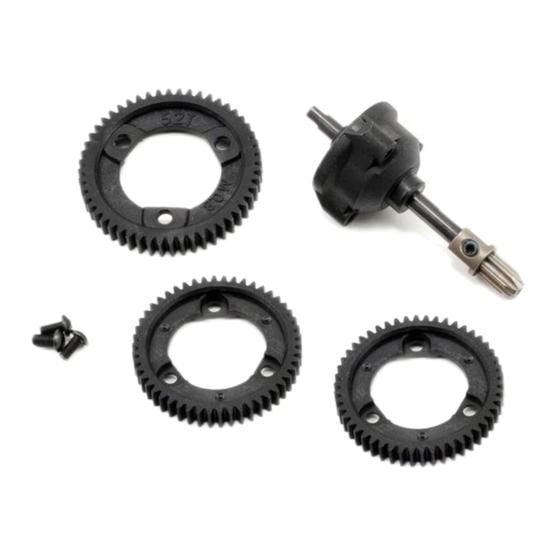

Center Differential Instructions
WARNING: The center differential should be limited to
off-road use with 7-cell NiMH or 2S LiPo battery packs
only. Higher powered battery packs can cause extreme
unloading, which can subject the differential to extreme
heat and ultimate failure.
Tools needed: 2.5mm hex driver

Center Differential Installation:

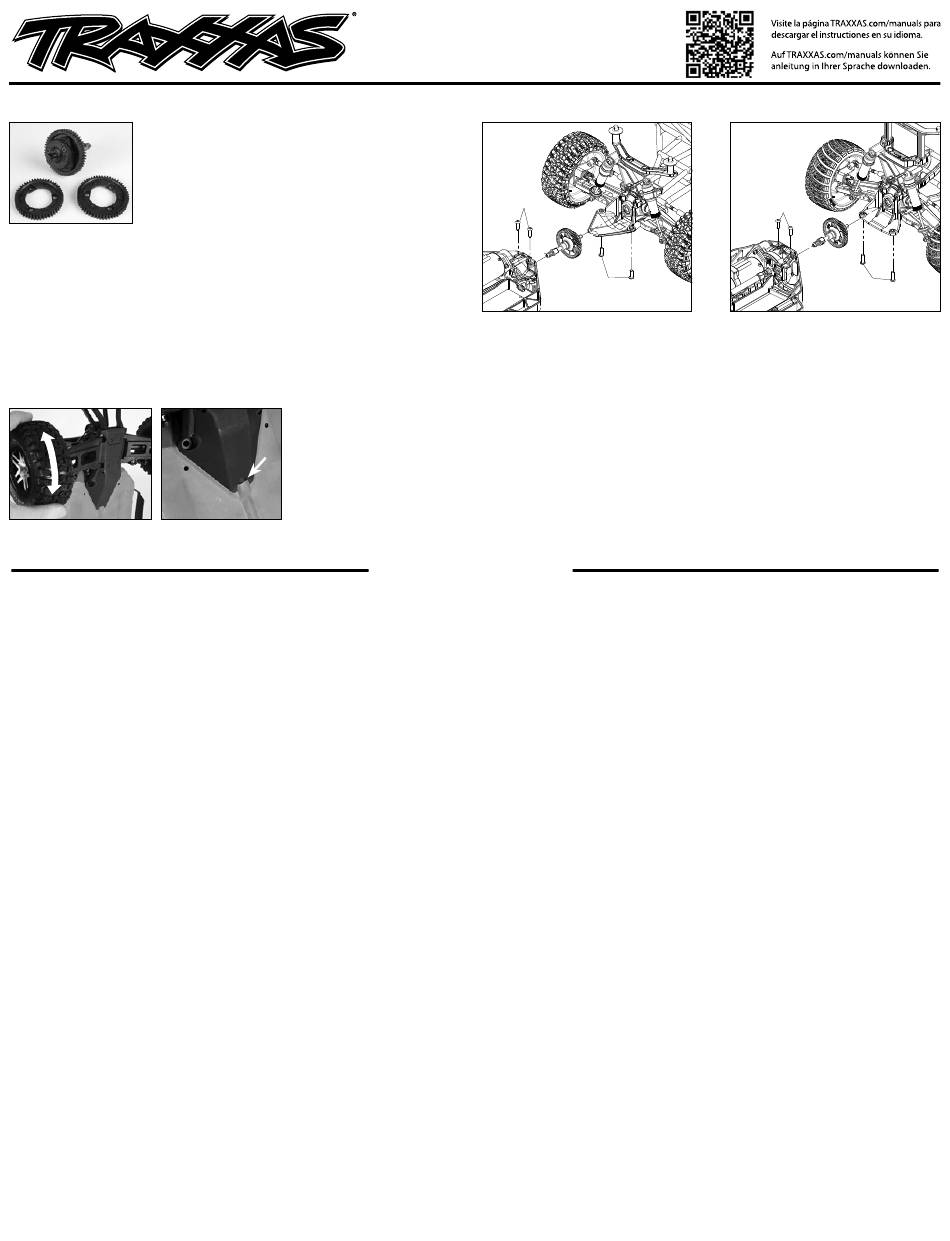

1. Locate and remove the button head machine screws from the top rear of the
chassis and from the bottom of the rear skid plate with a 2.5mm hex driver.
2. Remove the modular rear end from the chassis by sliding it backward away from
the chassis. This is to access the spur gear/slipper unit.
3. Remove the spur gear/slipper unit from the rear of the chassis.
4. Insert the center differential unit into the rear of the chassis (where the spur gear/
slipper unit was removed).
5. Attach the rear end unit to the chassis, keying in the rear output shaft of the center
differential with the opening in the rear differential. Secure the assembly with the
same four button head screws.
A B
Rotate the rear wheels slowly until Lock the rear skid into the
the output shaft keys into place. chassis (Slash 4x4/Stampede
Traxxas, 6250 Traxxas Way, McKinney, TX 75070, Phone: 972-549-3000, Fax: 972-549-3011, e-mail: support@Traxxas.com
Tip: Rotate the rear wheels
slowly while attaching the rear
end to the chassis to properly
set the rear output shaft of the
center differential into the rear
differential. You should feel the
rear end set into place (A). The
rear skid plate should lock into
the bottom of the chassis (B).
4x4 only)
4x12 BCS
4x12 BCS
Slash 4x4/Stampede 4x4

Center differential tuning:

The center differential is assembled with 100K weight differential lube from the factory.
This viscosity will be a good base point for most conditions. Thinner fluid will transfer
power easier than thicker fluid. Try thinner fluid on extremely rough and slick surfaces,
and thicker fluid on very smooth and high-bite surfaces.
