Date: 2018-09-06
Version: 1.0
Alternator
Starter Motor
Fuse*
* Fuse recomended. Please verify directive for applicable installation regarding fuses

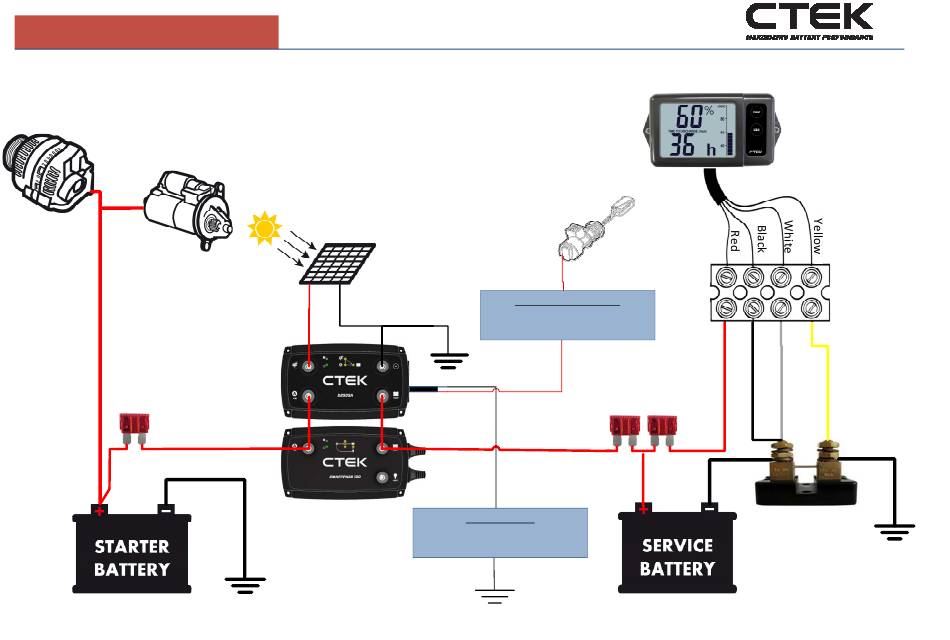

Title: Off Road 140A System
Solar Panel
Not connected = 14.4V charge voltage
Connected to minus = 14.7V charge voltage
Ignition
Smart alternator cable (red)
Not connected = Conventional alternator
Connected to ignition = Smart alternator
Fuse*
AGM cable (black)
Fuse*

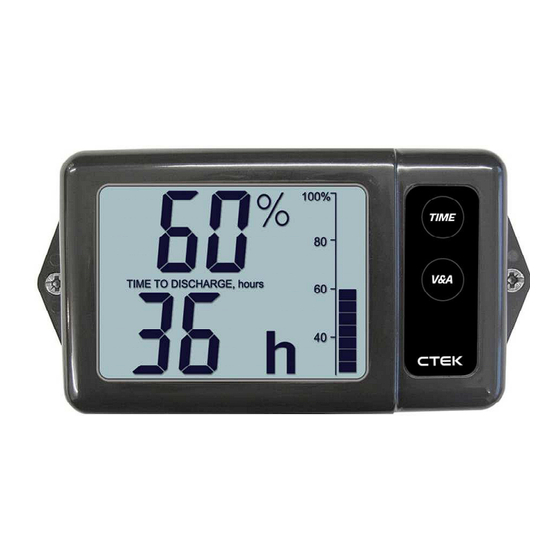

Shunt
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CTEK 140A
Summary of Contents for CTEK 140A
- Page 1 Date: 2018-09-06 Title: Off Road 140A System Version: 1.0 Solar Panel Alternator Starter Motor Ignition Smart alternator cable (red) Not connected = Conventional alternator Connected to ignition = Smart alternator Fuse* Fuse* Fuse* Shunt AGM cable (black) Not connected = 14.4V charge voltage Connected to minus = 14.7V charge voltage...
- Page 2 Date: 2018-09-06 Title: Off Road 140A System Version: 1.0 Starter battery: Solar panel: Wiring: Typically 55Ah to 100Ah for automotive applications. Recommended output power range of 50W to 300W. Please see instruction manual for suitable dimensions. Output voltage may not exceed specified voltage limit of Please verify directive for applicable installation A start battery should never be deeply discharged.
- Page 3 Date: 2016-04-18 Title: Liftgate DC/DC charger Version: 1.0 Starter Motor Alternator Solar Panel 7-Way connector Pin 4 = Aux 12V+ Pin 1 = Ground Fuse* Fuse* * Fuse recomended. Please verify directive for applicable installation regarding fuses...
- Page 4 Date: 2016-04-18 Title: Liftgate DC/DC charger Version: 1.0 Wiring: Input: Up to 30th = AWG 8. Up to 60th = AWG 4 Output : AWG 10. Max 6th Negative: Up to 30th = AWG 8. Up to 60th = AWG 4. Or connect to groun/chassis.
- Page 5 Date: 2017-05-08 Title: Bow thruster Version: 1.0 Starter Motor Alternator Fuse* Fuse* Fuse* Fuse* * Fuse recomended. Please verify directive for applicable installation regarding fuses...
- Page 6 Date: 2017-05-08 Title: Bow thruster Version: 1.0 Starter battery: SMARTPASS 120: Fuses: Typically 55Ah to 100Ah for automotive applications. Install according to instruction manual. If fuses are used, mount the fuses as close to each battery as possible. A start battery should never be deeply discharged. Suitable fuse size: D250SA: 30A D250SA and SMARTPASS 120: 300A...
- Page 7 Date: 2018-10-17 Title: D250SA trailer application Version: 1.0 Alternator Starter Motor Fuse* Fuse* Fuse* Fuse* * Fuse recomended. Please verify directive for applicable installation regarding fuses...
- Page 8 Date: 2018-10-17 Title: D250SA trailer application Version: 1.0 Starter battery: Alternator: Charge voltage: Typically 55Ah to 100Ah for automotive applications. If the alternator is a ”smart alternator” that can adjust You can choose between 14.4V and 14.7V (AGM) on voltage level by the engine control module or similar. D250SA.
