EE Systems Group eLEDing EE800W-AI Series Quick Start Manual

Thank you for choosing eLEDing! Built an exclusive auto-compensation firmware as AI-SMART mode for critical weather and seasons.
This product is designed to provide long lasting superior illumination by using environment-friendly Solar-Hybrid, Lithium-based energy
technologies. US, European, China and international patents granted and pending worldwide. All rights reserved. Users must read this manual
before installation, comply with local standard and regulations of construction & electrical/electronic projects, follow the safety guidelines to
prevent any possible accidents, incident and/or injuries. Consult experienced contractor/installer and electrical technicians for assistance.

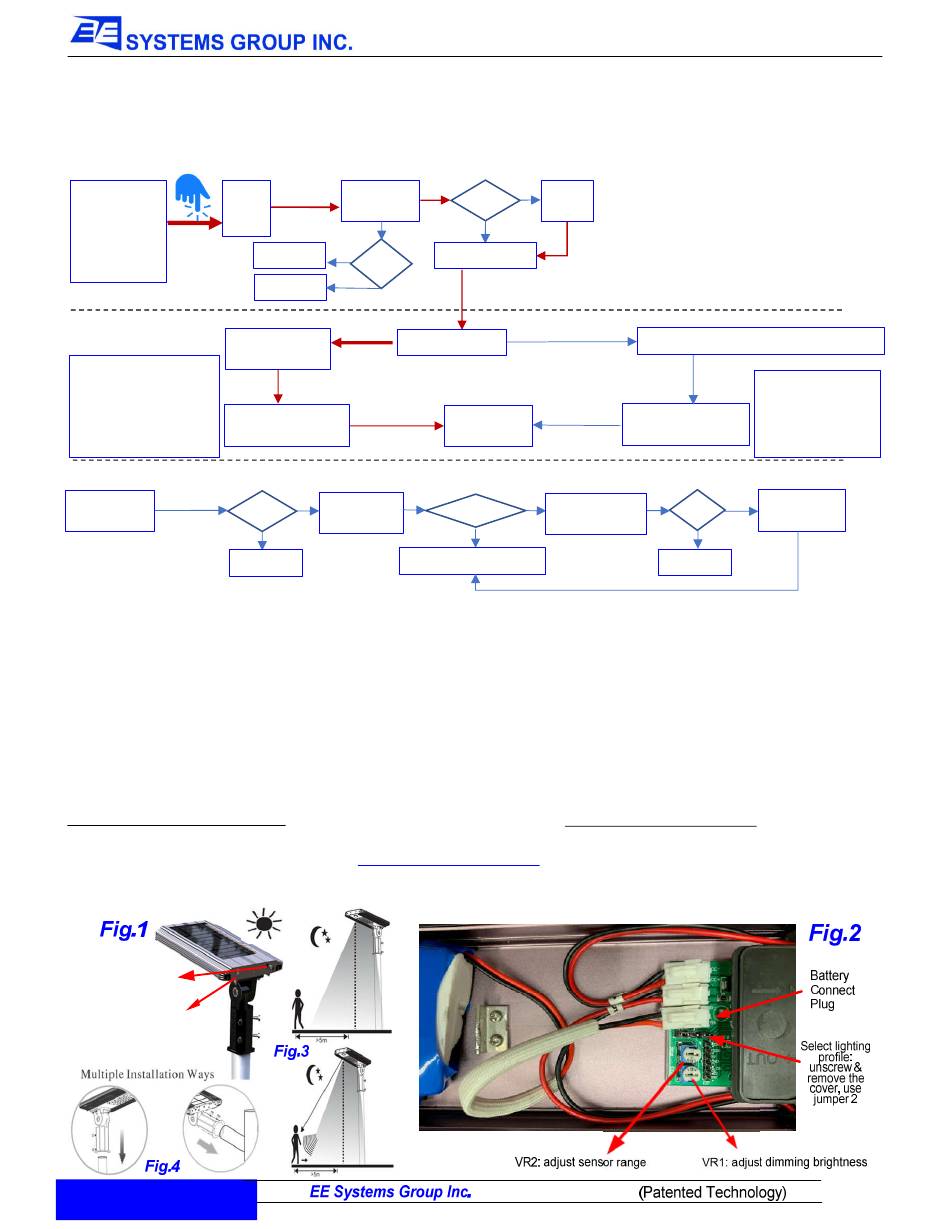

One Step Setup (Just 1 Click! Refer Fig.1)

Recommend light
blink
to charge 1-2
once
days with
Push
main switch in
OFF position
Latching
before lit up
Switch
AI-SMART default profile
(Jumper2 open, Fig.2 & 3)
Full brightness
up to 3hrs
SMART 2: Jumper2
closed, disable motion
sensing for fixed pre-set
illumination level 5-50%
Dimming brightness
of max brightness, refer
until dawn
Fig 2, VR1
Intelligence Power Management (IPM) system : monitor & auto adjust power consumption
If low power Switch to
Motion
AUTO Mode
(20% left)
No
Light OFF
Lighting Profile Setup & Battery Change: open the bottom cover (Fig.2)
Battery change: unplug the fault battery and replace it with the new battery. Noted that the battery plug only fit in one way.
VR1: adjust dimming brightness (from 5-50% of max brightness in either mode, clockwise to increase), minimum set is recommended.
VR2: adjust sensor range, can be adjusted from 10 - 50 ft, turn counterclockwise to decrease sensitivity range. (Fig.5)
Notes: increasing dimming brightness & sensitivity may reduce the length of illumination period, especially during winter time

Installation Guidelines

1. Securely mount the unit on the light pole or wall, adjust the light head direction and angles based on your need (Fig.4, 6)
2. Solar Panel must be mounted in a non-obstructed position that allows at least 5-6 hours direct sunlight all year round. For most of the North
America projects, adjust the tilt of the solar panel at 20°- 45° degrees based on your actual location. If you are close to equator's location, a flat
installation (light head is parallel to the ground) will be reasonable.
The solar panel can be pointed between east to west, but definitely not to north.
For northern hemisphere installations, a south-facing position is best and visa-versa for southern hemisphere installation.
Optional AUX Input DC power sources can be used as charging enhancement for poor sunlight location or balancing the solar panel direction
and lighting projection with conflict (Fig. 1) . Refer:
3. Solar Panel Maintenance: Use soft, wet cloth to clean the solar panel periodically (at least once a one year) to avoid energy output reduction
resulted from accumulated dust. Clean accumulated snow ASAP during snowing season.
ON/OFF
Main
Switch
AUX v solar panel: 15-
20V/10-30W
DC Charger: 15-20V/-2A
5 min Self
5-10 sec
Calibration
5 min
Light On
If
Yes
Light ON
Motion
No
Light OFF
Default
AI-SMART Mode
Setting
After 3 hours
Motion
detected
Yes
ON with full
brightness
Yes
Back to AI-SMART Mode
https://youtu.be/hDn5JWr_DPA
12346 Valley Blvd, #A, El Monte, CA 91732
eLEDing
Solar Powered LED Smart Area/Street/
Yes
Light
Daytime?
OFF
No
When
nighttime
Light turns ON
comes
If in the critical weather
Auto convert within
0-3hrs w/higher
power or dimming
saving profile
Motion
come to full
detected
brightness
NO
Critical Reserve
Full Charge
(10% left)
Phone Number: 1-877-579-3889 info@eesgi.com
/ EE 800W - AI series
®
Parking/Courtyard Lighting /
Two Year Limited Warranty
EESGI guarantees this product to be free from defects in material &
workmanship for (2) year.
This warranty does not apply to damage from misuse or incorrect installation/
connection.
This warranty does not cover accessories, bulbs, batteries, high voltage
accidents, alterations, unauthorized use or repair, neglect, misuse, abuse,
damages or defects resulting from normal wear and tear (including chips,
fading scratches, abrasions or discoloration due to usage or sun exposure), or
failure to follow instructions for care and maintenance, fire, flood, and Acts of
God.
This warranty does not include liability for incidental or consequential
damages.
EESGI is not responsible for any damages in excess of the retail purchase
price of the product under any circumstances. The consumer is responsible
for the installation of, removal of, and reinstallation of the product.
Higher brightness profile will less than 3hrs.
Exclusive SMART
illuminating saving
mode to support
Dimming brightness
when/where with
until dawn
insufficient Sunlight
Yes
ON with half
Motion
brightness
No
After Full
Light OFF
Charge
Web: www.eleding.com
Rev: 022020
