EE Systems Group eLEDing EE812W-AI8 Quick Start Manual

Thank you for choosing eLEDing! World's First AI SMART solar powered lighting:
This innovative AI SMART light is unlike all solar lights in the current market without any manually functional setting up. It's able to Auto-
Optimize performance via AI firmware self-calibration in four seasons and different geographical location. US and international patents
granted and pending worldwide. All rights reserved. Users must read this manual before installation, comply with local standard and regulations
of construction & electrical/electronic projects, follow the safety guidelines to prevent any possible accidents, incident and/or injuries. Consult
experienced contractor/installer and electrical technicians for assistance.

One Step Setup (Just 1 Click!)

Suggest:
Charge 1-2
days before
Push
installing with
Switch
switch in OFF
position

AI SMART lighting profile

Full brightness
The fixed hours high
brightness period will
be automatically
adjusted depends on
the multiple factors to
Dimming brightness
ensure all-night
until dawn
illumination
Second stage Intelligence Power Management (IPM) system : monitor & adjust power consumption
If low power Switch to
Motion
(20% left) AUTO Mode
No
Light OFF
T
Tempered
Glass
Solar Panel
Angle
Adjustment
Nuts
Bracket
U or
Arm
Teeth
Clamp
Power ON
Switch: One
Step Push ON
Diameter: 2" up to 5"
Mounting High: 6'-15'
5-min walk
Light ON
test mode
5 min
If
Yes
Light ON
Motion
No
Light OFF
AI Mode
Up to 4 Hours
Motion
detected
Yes
ON with full
brightness
Back to
As AI SMART version, once initially power ON, it needs at
least one day automatic self-calibration to make it works at
maximum performance in most geographical environment.
Thermal
Dissipation
Installation Guidelines (refer video link: www.eleding.com)
Air Duct
1. Securely mount the unit on top of 2"-5" pole or wall surface, adjust
the light head direction by the applications. Pre-charge under sunny day
for 1-2 days with power OFF is recommended.
2. Solar Panel must be mounted at a non-obstructed position/area that
allows at least 4-8 hours direct sunlight daily all year round. For most of
the North America projects, adjust the tilt of the solar panel at 0-45°
degrees based on your actual location (15° is default setting for most
ePIR
case in use). The solar panel can be pointed to between east to west,
Sensor
south will be the best Facing-to-Sun direction and definitely NOT to
north. For northern hemisphere installations, a south-facing position is
best and visa-versa for southern hemisphere installation.
CREE LED
Illuminators
3. Solar Panel Maintenance: Use soft, wet cloth to clean the solar panel
periodically (at least once a one year) to avoid energy output reduction
resulted from accumulated dust. Clean accumulated snow ASAP during
snowing season.
12346 Valley Blvd, El Monte, CA 91732 Phone Number: 1-877-579-3889 Fax: 626-452-9194 Web: www.eleding.com/www.eesgi.com
Yes
Light
Daytime?
OFF
No
When
night
Light turns ON
comes
In real critical weather
come to
Max
Motion
brightness
detected
NO
Critical Reserve
Full Charge
(10% left)
Yes
AI Mode

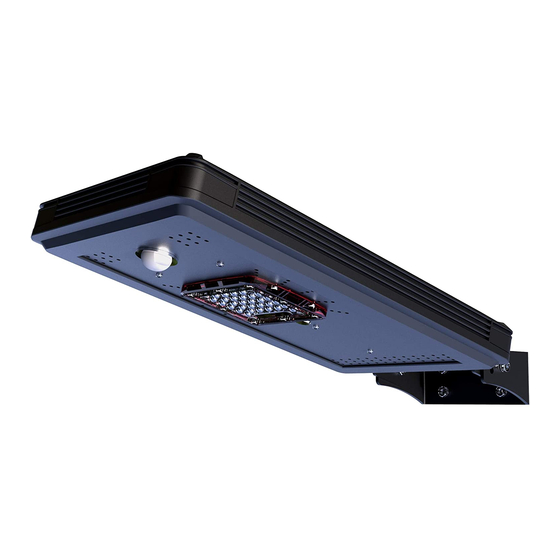

eLEDing, EE812W-AI8
AI SMART Solar Powered Area CREE LED Lights
Auto convert to
Dimming mode
In most cases, occur
on continuous
cloudy/snowing
days during the
Dusk to Dawn with
winter season
dimming brightness
Yes
ON with half
Motion
brightness
No
After Fully
Light OFF
Charged
Rev: 08052020
