General Operation - liftup FlexStep Compact User Manual

User guide for FlexStep Compact

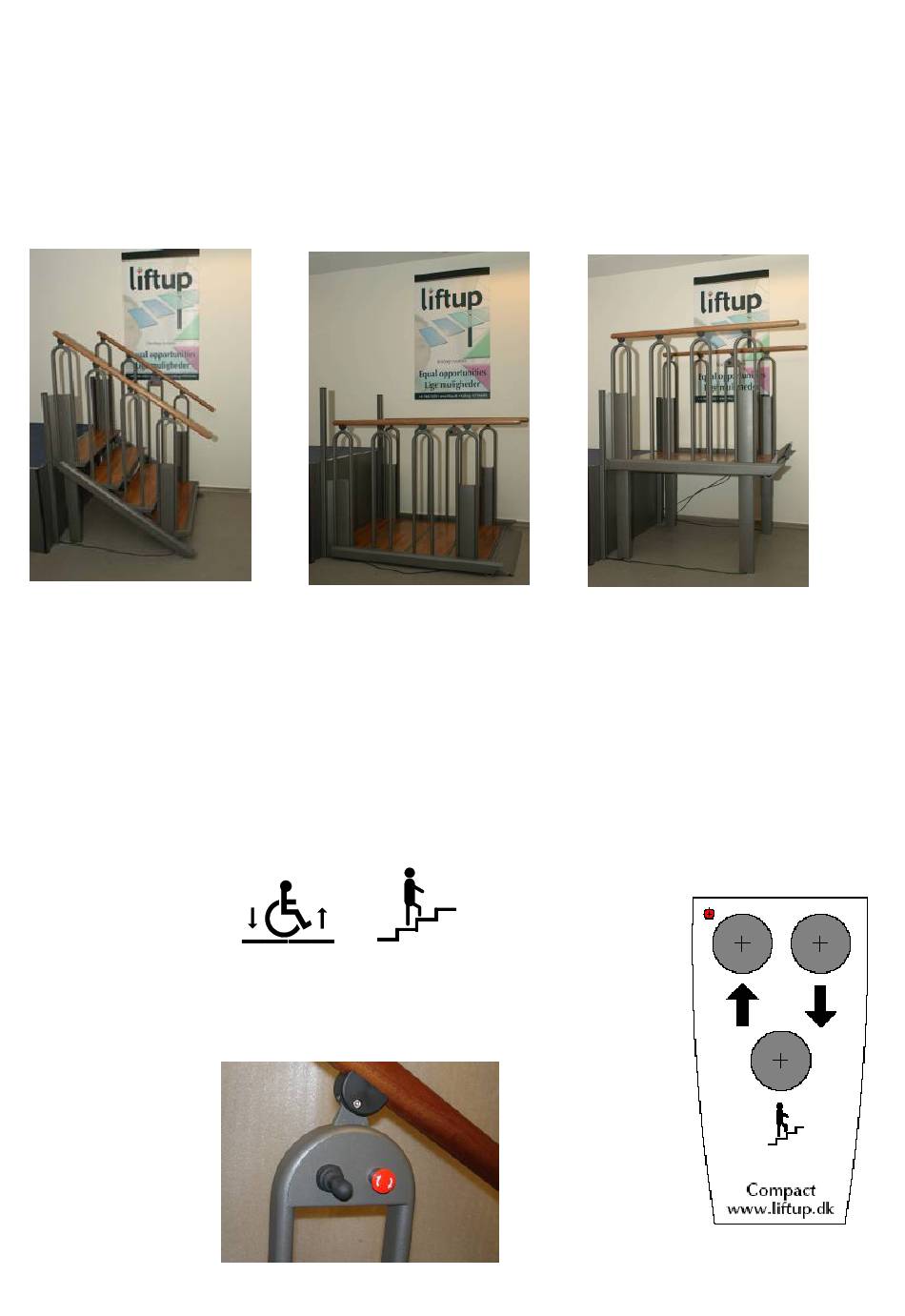

The FlexStep Compact stair lift is a wheelchair lift and a staircase in one. The FlexStep Com-
pact is normally in function as a staircase. See fig. 1. If at lower or at upper level; to change
from staircase mode to lift mode (fig. 2 and fig. 3), simply press and hold the button with the
lift symbol.
Fig. 1 Fig. 2 Fig. 3

General Operation

.
Flex Step Compact operated by the two operating panels respectively above and below
stairs, or via remote control * (see fig. 3). The button with the lift symbol modifies Compact
Flex Step from the staircase to a wheelchair lift. The button with the staircase symbol, mod-
ifies Compact Flex Step from the wheelchair lift to the staircase. (See fig. 4 and 5).
Movement of Flex Step Compact as a wheelchair lift is done by using the joystick mounted
on the railings. (see fig. 6).
Operating panel
Fig. 4. Lift Fig. 5. Staircase
Joystick on railings
Fig. 3
*Optional
Fig. 6
2
