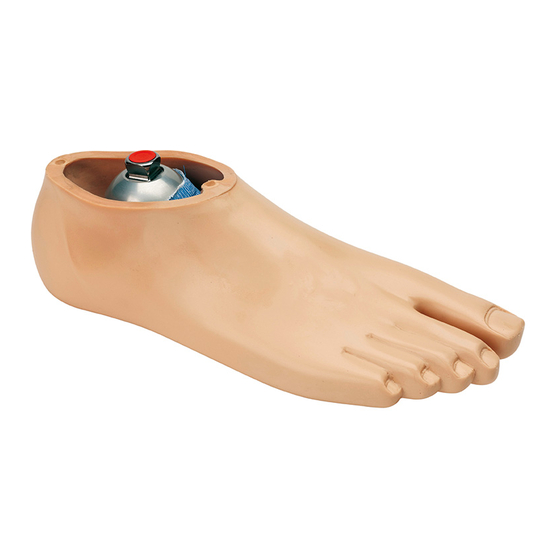

Navigator Foot
Sizes 22-30
Pied Multiflex Navigator
Tailles 22-30
Navigator-Fuß
Größe 22-30
Piede Navigator
Misure 22-30
Pie Navigator
Tallas 22-30
English - page 2-6
Français - page 2 & 7-10
Deutsch - seite 2 & 11-14
Italiano - pagina 2 & 15-18
Espanol - pagina 2 & 19-22
100 kg
220 lb
125 kg
275 lb
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for endolite Navigator Foot
Summary of Contents for endolite Navigator Foot

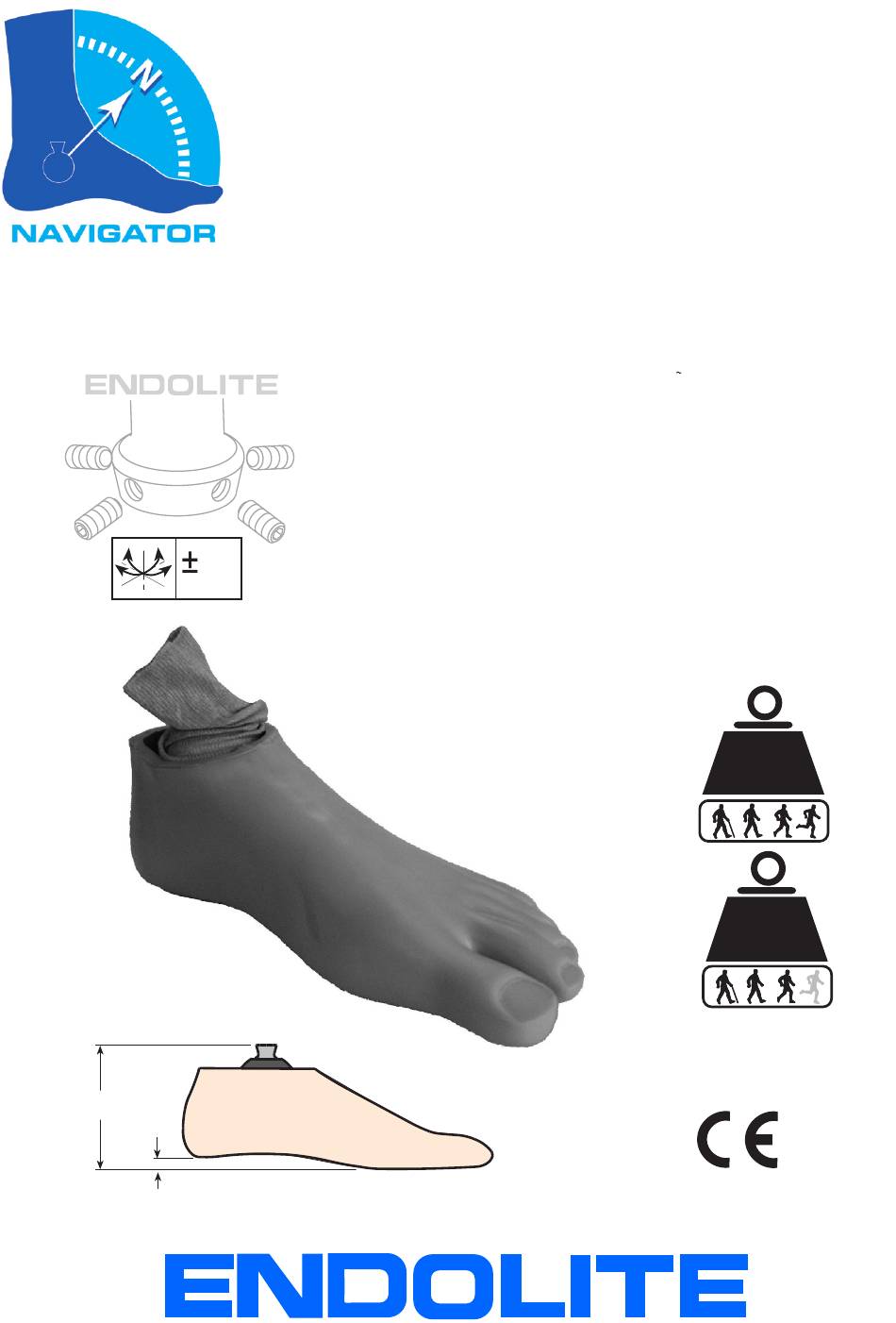

- Page 1 Navigator Foot Sizes 22-30 English - page 2-6 Pied Multiflex Navigator Tailles 22-30 Français - page 2 & 7-10 Navigator-Fuß Größe 22-30 Deutsch - seite 2 & 11-14 Piede Navigator Misure 22-30 Italiano - pagina 2 & 15-18 Pie Navigator Tallas 22-30 Espanol - pagina 2 &...
- Page 2 Gleitsocke Calzino Calcetín deslizante Foot Shell Enveloppe de Pied Fußkosmetik Cosmetico del piede (For use only with ENDOLITE Navigator Foot Shell) Cubierta del pie (uniquement pour usage avec l’Enveloppe de Pied Navigator ENDOLITE) (Nur zur Verwendung mit der ENDOLITE Navigator-Fuß)
- Page 3 Ball and Snubber Selection Low Activity: Limited to indoor walking. The amputee is able to walk on level surfaces at slow cadence. Moderate Activity: Within a limited outdoor range, the amputee has the ability to walk at low to medium speed and can manage small obstacles such as steps and uneven surfaces.
- Page 4 Assembly Instructions ball and top housing pyramid assembly keel keel clamp screws x4, shown alignment engaged in screw top housing Clean ball and cup with acetone or a similar solvent. Clean inside of housing with acetone or a similar Align pyramid flats along axis of keel and rest ankle solvent.
- Page 5 Assembly Instructions (continued) section through foot shell heel engagement Ensure the heel of the keel is fully engaged in the Slide assembly into foot shell. location feature in the foot shell. cut end from tie wrap and turn secure just glide sock back above adaptor as shown...
-
Page 6: Ordering Information
Ordering Information Replacement Parts: Foot Shells 539020 - 22L 539026 - 25L 539032 - 28L 539021 - 22R 539027 - 25R 539033 - 28R 539022 - 23L 539028 - 26L 539034 - 29L 539023 - 23R 539029 - 26R 539035 - 29R 539024 - 24L 539030 - 27L 539036 - 30L...
