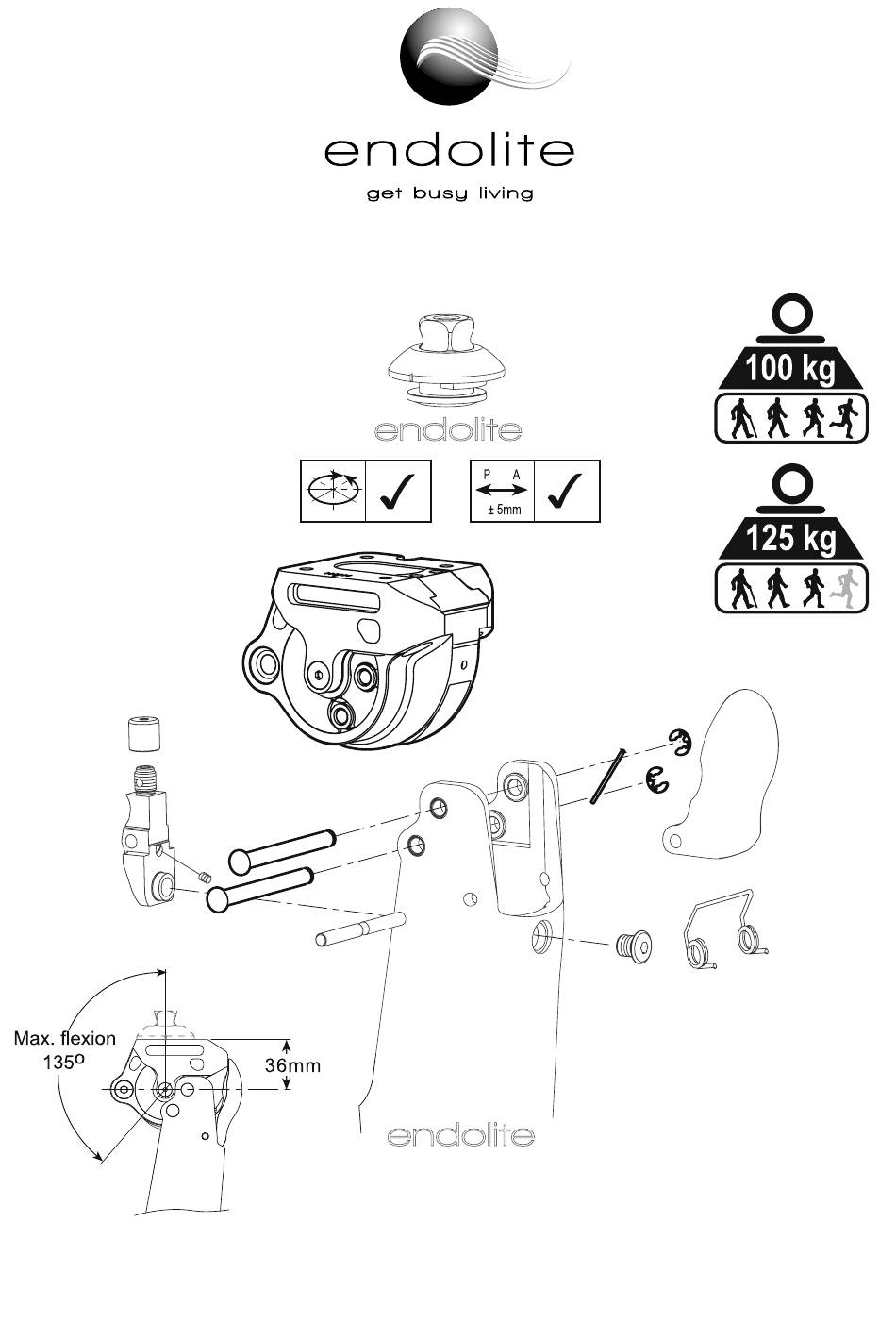

- Page 1 4 Bolt ESK+ 239150...
- Page 2 1 Static Alignment Guide Walking trials Weight Line SPRING STACK ADJUSTER Trochanter underside view of chassis decrease stability increase stability Knee Pivot Fully extend limb to access the adjuster. Rotate the SPRING STACK ADJUSTER to achieve the required stability for the individual user.
- Page 3 2 Front Stop adjustment - Adjustable Trunnion As fitted to the PSPC and Servo PSPC Loosen trunnion clamp screw. Turn piston rod to Fully tighten reveal thread and front stop apply Loctite 243. Reassemble and screw piston rod fully home. The chassis should now be slightly flexed.
- Page 4 3 Maintenance To maintain optimum performance, a periodic inspection for unacceptable noise, play and stability is recommended. The period between inspections is determined by factors such as the activity of the user, frequency of usage and the stability setting of the knee. At these inspections: Check and replace front stop if necessary ( see page 5).
- Page 5 4 Changing front stop buffer When fitting a new front stop, always re-adjust, and if applicable check length of cylinder if fitted with an adjustable trunnion. See page 3 938205WEB-GB/4-0712...
- Page 6 5 Removing ESK+ mechanism Remove all preload and record number of clicks View from below Clean bore with suitable solvent 938205WEB-GB/4-0712...
- Page 7 6 Replacement of ESK+ mechanism Note orientation Re-apply preload with recorded no. of clicks View from below Blatchford Products Ltd. and ENDOLITE are companies and trademarks of Chas. A. Blatchford and Sons Ltd. 938205WEB-GB/4-0712...
- Page 8 Distributor/Distributeur/Händler/Distributore/Distribuidor Head Office endolite Germany Chas A Blatchford & Sons Ltd Endolite Deutschland GmbH Lister Road Holzstr. 5 Basingstoke 95336 Mainleus Hampshire GERMANY RG22 4AH Tel: +49 9229 9737 001 United Kingdom Fax: +49 9229 9737 006 Tel: +44 (0) 1256 316600 Email: info@endolite.de...
