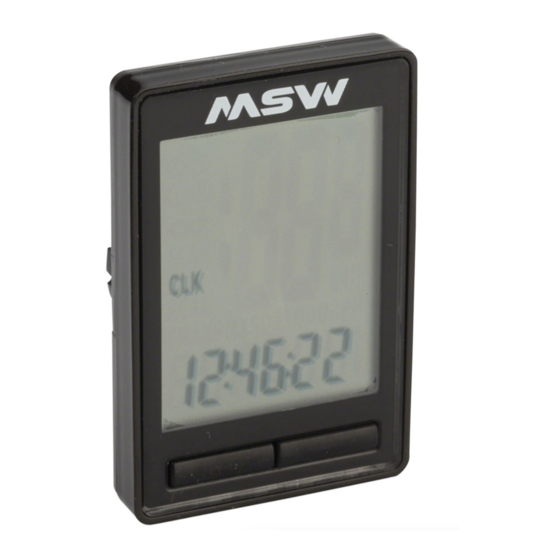

MINIAC WIRELESS CYCLING COMPUTER INSTRUCTIONS
Thank you for your purchase! At MSW
accessories makes a good ride great—whether you're tracking fitness or just
looking for the fastest route to work, we hope this MSW Miniac Wireless
Cycling Computer CC-200 gives you the data you need to achieve your goal.
WARNING: CYCLING CAN BE DANGEROUS. BICYCLE PRODUCTS
SHOULD BE INSTALLED AND SERVICED BY A PROFESSIONAL MECHANIC.
NEVER MODIFY YOUR BICYCLE OR ACCESSORIES. READ AND FOLLOW ALL
PRODUCT INSTRUCTIONS AND WARNINGS INCLUDING INFORMATION ON THE
MANUFACTURER'S WEBSITE. INSPECT YOUR BICYCLE BEFORE EVERY RIDE.
ALWAYS WEAR A HELMET.
WARNING: Chemical Burn Hazard. Keep batteries away from children.
This product contains a lithium button/coin cell battery. If a new or used lithium
button/coin cell battery is swallowed or enters the body, it can cause severe
internal burns and can lead to death in as little as 2 hours. Always completely
secure the battery compartment. If the battery compartment does not close
securely, stop using the product, remove the batteries, and keep it away from
children. If you think batteries might have been swallowed or placed inside any
part of the body, seek immediate medical attention.
For additional product and safety information go to: www.mswbike.com/safety.
COMPATIBILITY AND INTENDED USE
The MSW wireless computer can be used on any bike with wheels from
14" to 700c; from kids bikes to road bikes.
The wireless sensor and computer are not ANT+ or Bluetooth compatible.
Sensors from other manufacturers will not work with MSW computers.
The computer and sensor are water resistant (splash resistant) but should
not be submerged.
INCLUDED PARTS
A
D
Please check that all the following items have been included with the cycle
computer before starting.
A CC-200 cycle computer
B Battery cover
C Sensor
D 4 nylon zip-ties
E Mounting bracket
F Rubber shim
G Wheel magnet
Cycle Computer
Bracket
Rubber
6400 WEST 105TH STREET // BLOOMINGTON, MN 55438 // 1-855-883-6563 // WWW.MSWBIKE.COM
10444 10/16 | 85-000276_INST01_RG
we believe that having essential
®
B
C
E
F
Sensor
Bracket
Screw
INSTALLATION
MOUNTING THE HANDLEBAR BRACKET

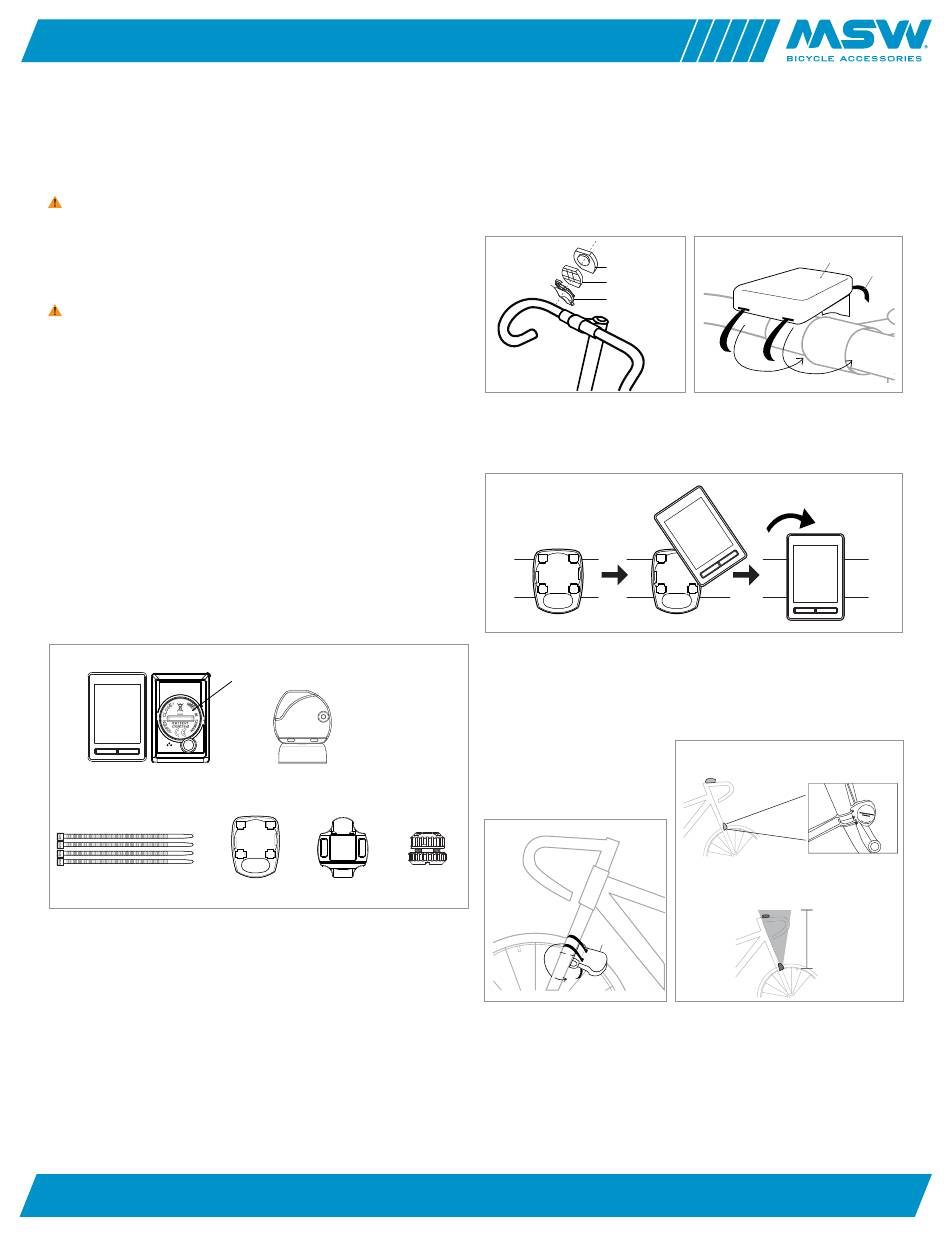

Fit the rubber pad to the back of the handlebar bracket and use the nylon ties
to attach it to the bar. Do not fully tighten the nylon ties until you're certain the
angle of the computer is correct. (figs 1, 2).
Cycle Computer
Bracket
Rubber
Cycle Computer
Bracket
Rubber
Cycle Computer
Bracket
Rubber
Place the cycle computer on the bracket and secure it by turning clockwise
(fig 3).
MOUNTING THE SENSOR
Find a suitable point on the fork to mount the sensor.(fig 4). The distance
between cycle computer and the speed sensor should be within 60cm (fig 5).
Use the nylon ties to secure the sensor, but don't tighten fully yet.
Sensor
Sensor
Sensor
G
Sensor
Screw
Screw
Screw
Magnet
Nylon Ties
Magnet
Magnet
Magnet
Cycle Computer
Bracket
Rubber
Bracket
Nylon Ties
Figure 1
Cycle Computer
Bracket
Rubber
Max. 30°
Figure 4
Sensor Point
Screw
Sensor Zone
Bracket
Bracket
Nylon Ties
Nylon Ties
Bracket
Nylon Ties
Figure 2
Bracket
Nylon Ties
Figure 3
Max. 30°
Max. 30°
Max. 60c
Max. 30°
Max. 60cm
Max. 60cm
Max. 30°
Sensor Point
Sensor Zone
Figure 5
Sensor Poin
Sensor Point
Magnet
Sensor Zone
Sensor Zone
1–5mm
Sen
Magnet
Magnet
1–5mm
Sensor Poi
Sensor Zone
Sensor
Magnet
