MSW TIGER MOTH 20 USB TAILLIGHT Quick Start Manual

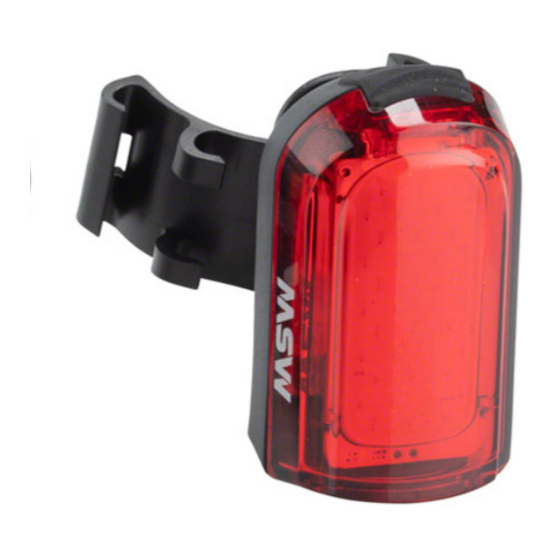

TIGER MOTH 20 USB TAILLIGHT
Thank you for your purchase! At MSW
accessories makes a good bike ride great. Tiger Moth 20 is MSW's handy
USB rechargeable taillight. Keep it on your bike mounted to the seat post
or seatstay, or easily remove it for safe storage in a commuter backpack
or bag. Be seen on your rides!
WARNING: Cycling can be dangerous. Bicycle products should be
installed and serviced by a professional mechanic. Never modify your bicycle
or accessories. Read and follow all product instructions and warnings
including information on the manufacturer's website. Inspect your bicycle
before every ride. Always wear a helmet. For more information, please visit
www.mswbike.com/safety.
COMPATIBILITY AND INTENDED USE
WARNING: Ensure that the Tiger Moth 20 USB Taillight is placed
an adequate distance away from any rotating components of the bicycle
or bicycle wheels and is not obstructed by any components, accessories,
or cargo.
COMPONENTS
Light
Bracket
Pad
Ring
Cable tie x 2
USB cable
INSTALLATION
1. Install the light on the seat post, seatstay by using ring or strap.
Tighten the strap tie
and cut off any excess
with scissors.
2. When the light and bracket are horizontal, install the light on the bracket,
twist it 90° and fasten it.
6400 WEST 105TH STREET // BLOOMINGTON, MN 55438 // 1-855-883-6563 // WWW.MSWBIKE.COM
196351 5/19 | 85-001103_INST_A
we believe having essential
®
90°
TO SWITCH MODES
Press the button for 1.5 seconds to turn ON or OFF, and click to switch modes.
Press
Off Low Beam High Beam Flashing 1
4.5 hrs 1.5 hrs 20 hrs
MODE MEMORY FUNCTION: When you turn the light on, it lights up in the last lighting
mode you used.
NOTE: Upon full discharge, the light will enter Protected Mode and automatically restore to
factory default settings. The light will be in Low Mode when charged and turned back on.
BATTERY LEVEL INDICATOR
Power OFF: Double click to show the remaining capacity.
Constant: 100–50%
Slow flash: 49–25%
Fast flash: 24–0%
LOW BATTERY ALERT
Less than 25% battery remaining
In constant mode: circular flashing
In flashing mode: pulsed constant lighting
CHARGING
1. Open the rubber cover at the bottom of the light.
2. Plug in provided Micro USB cable then plug into USB port.
3. Indicator will show charging status with different colors.
Red: 0–24%
Orange: 25–49%
Green: 50–100%
Light OFF: Fully Charged
Micro USB
SPECIFICATIONS
Size: 49.3 x 286.4 x 20mm
Weight: 18g
20 Lumen LED: 38 chips COB LED
Battery: Rechargeable lithium-ion polymer
Charging: 5V / 0.5A, 2 hrs
Accessories: Micro USB cable
Flashing 2 Flashing 3 Flashing 4 Daytime
5 hrs 7.5 hrs 15 hrs Flashing
8 hrs
