Summary of Contents for Bristan AR SNKPURE C

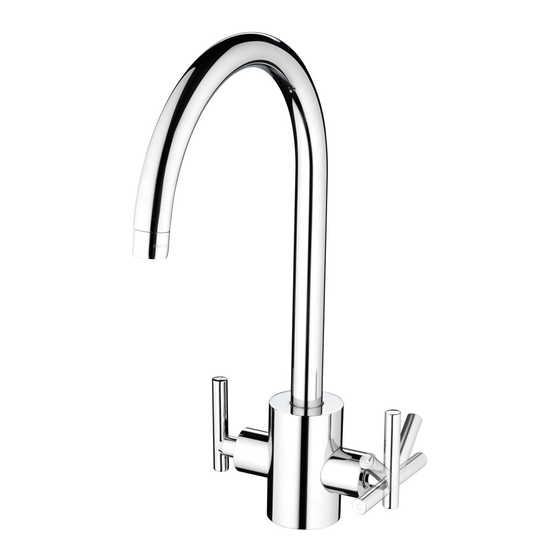

- Page 1 Artisan Filter Mixer Fitting Instruction & Contents List Please keep these instructions for future reference and request of replacement parts...
-
Page 2: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have designed this product with your enjoyment in mind. To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to give us a call on 0330 026 6273. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions • If you are in any doubt about your ability to install this product safely you must employ the services of an experienced qualified plumber. -
Page 4: Operation
Operation The mixer provides filtered water by turning the cold handle backwards. Regular hot and cold water are obtained from the usual motion of turning the handles forward from the upright position. FORWARD BACKWARDS (Anticlockwise) (Clockwise ) For filtered cold For regular cold water water... -
Page 5: Installation
Installation Mixer Tap Installation Diagram... - Page 6 Filter Cartridge...
- Page 7 Installation Important: If the fitting is installed at low pressure (tank fed), then the minimum distance from the underside of the water outlet to the cold water tank should be at least 5 metres to ensure adequate performance. This mixer should be installed in compliance with Water Regulations. For further details please contact your local Water Authority.
- Page 8 7. Place the fibre washer supplied into the connecting adaptor (8) and tighten onto the threaded rod (5). 8. Screw the adaptor (9) onto the connecting adaptor (8) and push the blue tubing firmly into the push fit end of the adaptor (9). 9.
- Page 9 Filter Cartridge Installation Diagram Triangular Washer ‘C’ Shaped Metal Washer Fixing Nut Threaded Rod Connecting Adaptor Adaptor Blue Tubing Push-Fit Pipe Connector Mounting Bracket Filter Cartridge Cold Water Supply Self-Tapping Saddle Valve Push-Fit Pipe Connector Red Tubing...
-
Page 10: Maintenance
Maintenance General Cleaning Your fitting has a high quality finish and should Using a suitable box spanner unscrew the be treated with care to preserve the visible handle shroud. Once removed using a surfaces. All surfaces will wear if not cleaned suitable spanner unscrew the valve from correctly , the only safe way to clean your mixer the mixer body. -
Page 11: Guarantee
Bristan Guarantee At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind. To start your free guarantee, simply scan the QR code and register your product. - Page 12 This booklet covers product code AR SNKPURE C Helpline 0330 026 6273 Bristan Group Limited Birch Coppice Business Park, Dordon, Tamworth, Staffordshire B78 1SG A Masco Company Website: www.bristan.com Telephone: 0330 026 6273 Email: enquire@bristan.com FI (AR SNKPURE C)– REV. D2...
