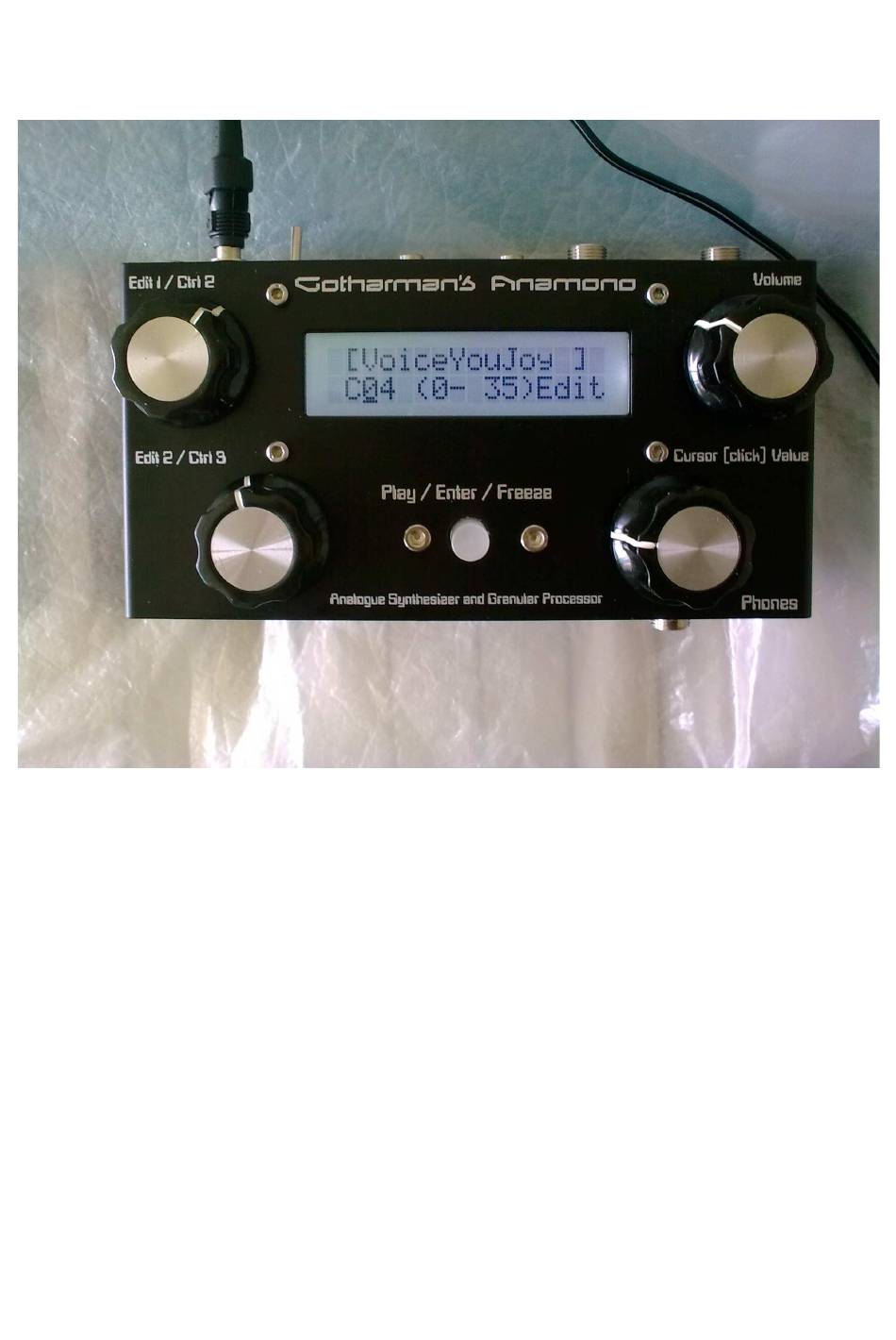

Gotharman's Anamono

Analogue feedback synthesizer with build in granular

processor

Monophonic analogue feedback synthesizer with build in fully programable and controlable granular effects processor,

2 analogue filters, an analogue output stage with VCA and overdrive, a unique newly engineered g-RAY analogue

feedback synthesis system, 2 oscillators, a ringmodulator and many modulation sources, including 2 newly engineered

and very flexible step-modulators. All of this packed in a small and compact box, that can be used everywhere. User-

storage of 256 sound presets is possible.

THE OSCILLATORS

Anamono has 2 oscillators. Their waveforms are continuously variable from sine to triangle to saw to square to noise.

The wave-shaping can be modulated from all of the 16 modulation sources. All waveforms can be pulsewidth and pitch-

modulated. Oscillator 2 can be detuned to create thick sounds, and oscillator 2 can also be synced to oscillator 1.

Oscillator 2 keyboard pitch control can be switched off.

Anamono has 2 analogue filters which are indepedently programable. Filter 1 can be in either lo-pass, band-pass or hi-

pass mode, while filter 2 are always in bandpass mode. The 2 filters are connected in parallel to each other. Cutoff,

resonance and output levels can be modulated from all of the 16 modulation sources.

The digital filter can be in lo-pass, band-pass, hi-pass, sharp band-pass or add mode. Cutoff, resonance and output levels

can be modulated. It has a built in boost circuit, that can create clipping. It can be placed in 4 possible positions: Serial -

In serial connection with the analogue filters, before the analogue filters, Parallel - In parallel connection with the

Table of Contents

Do you have a question about the Gotharman’s Anamono and is the answer not in the manual?

Page 1 Gotharman’s Anamono Analogue feedback synthesizer with build in granular processor Monophonic analogue feedback synthesizer with build in fully programable and controlable granular effects processor, 2 analogue filters, an analogue output stage with VCA and overdrive, a unique newly engineered g-RAY analogue feedback synthesis system, 2 oscillators, a ringmodulator and many modulation sources, including 2 newly engineered and very flexible step-modulators.
Page 2 analogue filters, Feed - Inside the g-RAY feedback loop, Gran - On the granulator/delay output - only the effected signal is filtered, not the clean signal. THE g-RAY FEEDBACK CIRCUIT A new GotharMusic invention! It is actually a traditional feedback loop, with input taken from the analogue filters output or the granulator/delay output, and then fed back into the analogue filters.
Page 3 The encoder selects sound and navigate around in the edit pages plus it adjusts some switch-functions on some edit pages. GotharMusic www.gotharman.dk...
