Polycom RealPresence Group 700 System Installing page 2

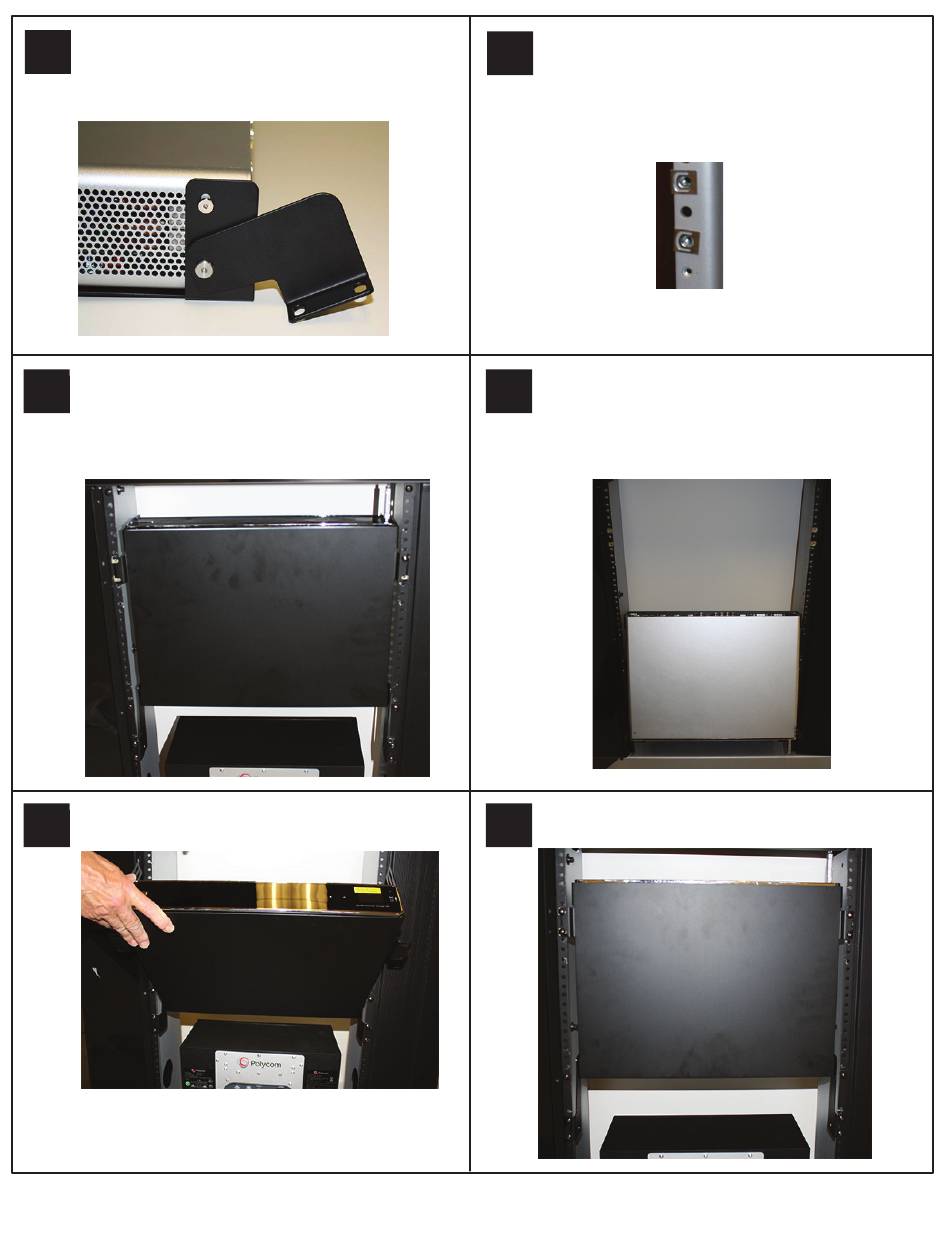

Attach the mounting ear to the lower right screw
19d
location using the washer and shoulder screw.
Repeat on the other side. Note that the design of
the mounting ear shown below has changed.
Attach the top left and top right mounting tabs
19e
temporarily in place using one screw on each
side. The lower pivot mounts will fall into position
over the appropriate rack clip locations. Secure
with two screws on each side.
After the cables are installed, pivot the Group
19g
700 system to an upright position.
Installing a Polycom® RealPresence® Group 700 System in the
Polycom® RealPresence® Group Series Media Center
Install four clip-on rack nut fasteners in holes 7
19e
and 9 from the top of the upper set of holes and
in holes 2 and 4 from the top of the lower set of
holes, on the left vertical support. Repeat with the
right vertical support.
Remove the two screws temporarily installed
19f
at the top. Pivot the codec down to access
the I/O and to cable the unit. Refer to Setting Up
the Polycom RealPresence Group 700 System
for cabling details.
Attach the upper tray ears to the upper rack nut
19h
fasteners using two screws on each side.
2
