UTA MultiBox
NEW DESIGN
®
UTA MultiBox
Instruction manual
has a new design. The corresponding manual can be found at the beginning of this
®
®
UTA MultiBox
Predecessor
®
Advertisement
Chapters
Table of Contents
Summary of Contents for Edenred UTA MultiBox

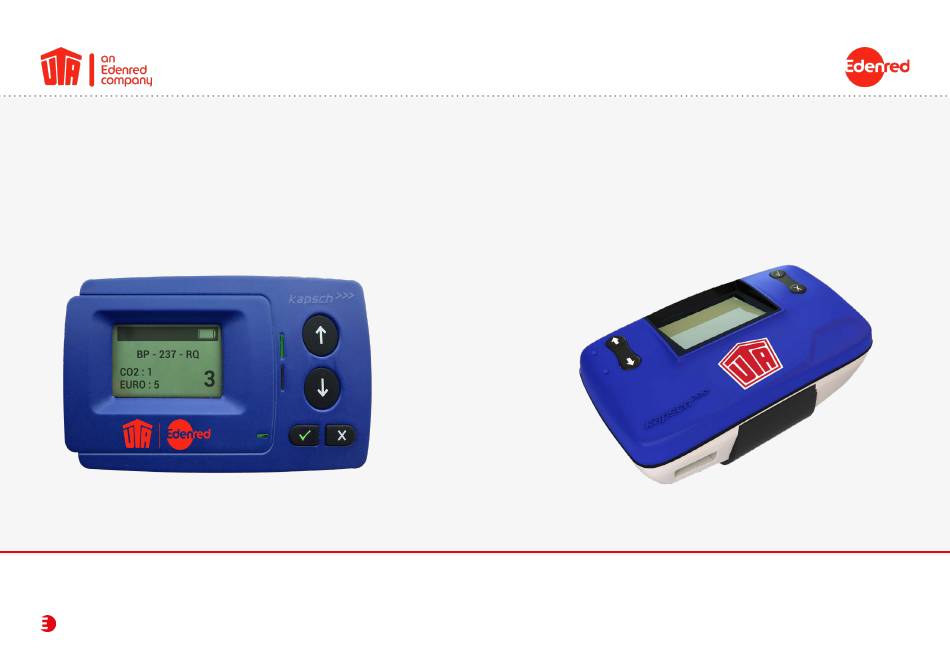

- Page 1 UTA MultiBox Manual ® Since August 2020 the UTA MultiBox has a new design. The corresponding manual can be found at the beginning of this ® document. The manual of our predecessor follows from page 27 onwards. For questions and suggestions please contact the UTA Toll Service will be happy to assist you.
- Page 2 UTA MultiBox ® Instruction manual...
-
Page 3: Table Of Contents
Content PREFACE 1. Introduction 2. Installation of the OBU 2.1 Installation of the UTA MultiBox on an existing battery cable ® 2.2 There is no battery related cable 2.3 Position the UTA MultiBox on the Windscreen ® 3. Connecting the Power Cable 4. -
Page 4: Preface
These instructions explain to you step by step how to install and start up the OBU as well as other important details about its use. To- gether with the manual for drivers you will be perfectly prepared and learn all about the important details of the UTA MultiBox . -
Page 5: Introduction
• Toll payment in France, Portugal, Spain, Liefkensoektunnel (BEL), Herrentunnel (DE) • Optional Viapass network activation (BEL) • Optional use of the UTA MultiBox Manager Please note that you must connect and activate the UTA MultiBox in order to use all the services you have subscribed to. ®... -
Page 6: Installation Of The Obu
2. Installation of the OBU 2.1 Installation of the UTA MultiBox on an existing battery cable ® Remove the connection cable from the Remove the connection cable cover by docking station. pulling it. UTA MultiBox ® Instruction manual... - Page 7 2.1 Installation of the UTA MultiBox on an existing battery cable ® Use the cable Place the end of the connected to your connection cable in the battery to replace docking station. The arrow on the end cap must show towards you.
- Page 8 2.1 Installation of the UTA MultiBox on an existing battery cable ® The bracket with cable should look like in Stickers for one-time use! the picture. Place the UTA MultiBox on the docking ® station. Check that the OBU is correctly connected.
-
Page 9: There Is No Battery Related Cable
® holder to hand. bis Sie ein „Klick“ hören. Push the cover Stickers for one-time use! in until you hear a Place the UTA MultiBox ® „click“. the docking station. Check that the OBU is correctly connected. To do this, you must see the Information on the screen. -
Page 10: Position The Uta Multibox ® On The Windscreen
2.3 Position the UTA MultiBox on the Windscreen ® Position the OBU at the bottom in the middle of the clean windscreen on the inside (outside the tinted area). There must be a free space of about 10 cm all around the OBU. -
Page 11: Connecting The Power Cable
If the vehicle is already connected to a power supply, this step is not necessary. • Finally, connect all wires to the previously identified connection points (vehicle supply, ignition and ground). The UTA MultiBox must be installed by a specialist company. Failure to comply with these instructions means that UTA assumes ®... -
Page 12: Connection Of The Uta Multibox To The Power Supply
• Connect the OBU to the connecting cable and then to the power supply. Press firmly until you hear a click sound. • This connection must be made for the UTA MultiBox to work ®... -
Page 13: Switching On The Uta Multibox
5. Switching on the UTA MultiBox ® 1. Double click to see the menu. 2. You navigate the menu using the arrows. 3. Press this button to exit the menu. The buttons do not work at speeds above 10 km/h. -
Page 14: Settings & Initial Activation
• Polish • German • English • Italian • Portuguese • French • Czech • Spanish • Dutch • Registration number check: Make sure the registration number on the display matches your vehicle’s registration number. UTA MultiBox ® Instruction manual... - Page 15 Example: Your vehicle combination consists of a truck and trailer with a total of 5 axles: 0=0-0=0:5+. • Confirm the weight with the check mark. By default, the weight saved in the OBU corresponds to the permissible total weight. UTA MultiBox ® Instruction manual...
- Page 16 Registration number • Euro emission class • Permissible total weight of the vehicle • Number of axles of the tractor unit Please note: any false information results in a penalty or forfeiting of the discount. UTA MultiBox ® Instruction manual...
-
Page 17: Led Display
Look in your messages at the next stop. To do so, click on the check mark. On the toll networks in France, Spain, Portugal, Liefkenshoek (Belgium) and Herrentunnel (Germany), the onboard unit emits a beep (1 or 2 beeps) as soon as it is detected while passing through a station. UTA MultiBox ® Instruction manual... -
Page 18: Other Possibilities
Vehicle device. If the problem persists, please contact your UTA contact person. If your vehicle device did not emit a beep or emits 4 in succession, the transaction was not confirmed. You are not travelling in accordance with the regulations. Please refer to chapter 10. UTA MultiBox ® Instruction manual... -
Page 19: Error Code
10006 Your unit is not operational. get in touch with your contact person. In the event of a problem, you can reach us at the following telephone numbers: UTA MultiBox ® UTA Toll Service In the Belgian “Viapass” network +49 6027 509-617... -
Page 20: Toll Contexts
To check in which countries your OBU can be used and is activated for, go to the “networks” tab in the menu. Press X to exit the menu. LIEFKENSH. Belgium VIAPASS Belgium HERRENTUN. Germany VIA-T Spain TIS-PL France VIA VERDE Portugal UTA MultiBox ® Instruction manual... -
Page 21: Paying At The Toll Station
The lanes are fitted with a vehicle device detection system in both directions. Lanes are Belgium reserved for electronic toll collection and marked by this sign. Herrentunnel It is advisable to use the right-hand lane. Germany Viapass Lanes without toll station. Belgium UTA MultiBox ® Instruction manual... -
Page 22: Drive Through At The Toll Station
• Slow down and respect the minimum distance of 4 m between vehicles. • Follow the signs. • Wait until the light is green and the barrier is raised before starting. When driving on toll networks, the unit must always be in position on its support. UTA MultiBox ® Instruction manual... -
Page 23: Emergency Plan In Case Of Malfunction
• When entering a toll section: take a ticket. • When leaving a toll section: enter a lane, use the intercom and wait for help to arrive. Get your UTA MultiBox ID scanned manually or pay with cash or credit card. - Page 24 • Keep your vehicle device in the aluminium-coated bag you were provided with to avoid being charged more than once. • You can now use this temporary Satellic OBU on the Belgian toll road network. UTA MultiBox ® Instruction manual...
-
Page 25: Useful Information
11. Useful information • Do not operate your UTA MultiBox while driving! ® • Don’t forget to connect the device to the power supply again later to avoid paying a fine! • If you require spare parts, please contact UTA. -
Page 26: Checklist
12. Checklist Continuous power supply? LED lights up green? Required toll contexts displayed? Registration number correct? Current number of axles correct? Emission class correct? UTA MultiBox ® Instruction manual... -
Page 27: Contact Details
Your Toll Service team are happy to help: Contact details in the event of problems during the journey in Belgium (Viapass) Toll Service +33 (0)4 26 29 75 80 +49 6027 509-617 24h available for you! support@uta.com www.uta.com UTA MultiBox ® Instruction manual... - Page 28 UTA MultiBox ® Bedienungsanleitung Instruction manual...
- Page 29 Bracket ® 2.2 Position the UTA MultiBox on the Windscreen ® 3. Connecting the Power Cable 4. Connection of the UTA MultiBox to the Power Supply ® 5. Switching on the UTA MultiBox ® 5.1 Settings & initial activation 6.
-
Page 30: Preface
PREFACE Dear user, Please read this instruction manual carefully. This is the only way to ensure that the UTA MultiBox can be made full use of in ® accordance with the terms of use. We would like to draw your attention to the fact that the UTA MultiBox has to be connected to a power supply at all ®... -
Page 31: Introduction
Optional use of the UTA MultiBox Manager Please note that you must connect and activate the UTA MultiBox® in order to use all the services you have subscribed to. The information stored on the box must be consistent with the data of the vehicle in which it is installed. -
Page 32: Installing The Obu
2. Installing the OBU 2.1. Fix the UTA MultiBox to the Bracket ® Remove the foil from the adhesive surface. Attach the holder to the back of the OBU. (Disposable sticker) UTA MultiBox ® Instruction manual... -
Page 33: Position The Uta Multibox ® On The Windscreen
2.2. Position the UTA MultiBox on the Windscreen ® Position the OBU at the bottom in the middle of the clean windscreen on the inside (outside the tinted area). There must be a free space of about 10 cm all around the OBU. -
Page 34: Connecting The Power Cable
If the vehicle is already connected to a power supply, this step is not necessary. • Finally, connect all wires to the previously identified connection points (vehicle supply, ignition and ground). The UTA MultiBox must be installed by a specialist company. Failure to comply with these instructions means that UTA assumes ®... -
Page 35: Connection Of The Uta Multibox To The Power Supply
• Connect the OBU to the connecting cable and then to the power supply. Press firmly until you hear a click sound. • This connection must be made for the UTA MultiBox to work ®... -
Page 36: Switching On The Uta Multibox
5. Switching on the UTA MultiBox ® 1. Double click to see the menu. 2. You navigate the menu using the arrows. 3. Press this button to exit the menu. The buttons do not work at speeds above 10 km/h. -
Page 37: Settings & Initial Activation
• Polish • German • English • Italian • Portuguese • French • Czech • Spanish • Dutch • Registration number check: Make sure the registration number on the display matches your vehicle’s registration number. UTA MultiBox ® Instruction manual... - Page 38 Example: Your vehicle combination consists of one tractor unit and one trailer with a total of 5 axles: 0=0-0=0:5+ • Confirm the weight with the tick. By default, the weight stored in the OBU is equivalent to the permissible total weight of the vehicle combination. UTA MultiBox ® Instruction manual...
- Page 39 Registration number • Number of axles of the tractor unit • Euro emission class • Permissible total weight of the vehicle combination Please note: any false information results in a penalty or forfeiting of the discount. UTA MultiBox ® Instruction manual...
-
Page 40: Control Displays
To check in which countries your OBU can be used and is activated for, go to the “networks” tab in the menu. Press X to exit the menu. VIA-T (ES) = Spain VIA VERDE (PT) = Portugal TIS-PL (FR) = France HERRENTUN. (DE) = Germany VIAPASS (BE) = Belgium LIEFKENSH. (BE) = Belgium UTA MultiBox ® Instruction manual... -
Page 41: Messages
The blue LED turns off as soon as you have clicked on the tick after reading the message. The last message will always be saved and you can retrieve it at any time via “last message”. UTA MultiBox ® Instruction manual... -
Page 42: Paying At The Toll Station
The lanes are fitted with a vehicle device detec- Belgium tion system in both directions. Lanes are reserved for electronic toll collection and marked by this sign. Herrentunnel It is advisable to use the right-hand lane. Germany Viapass Lanes without toll station Belgium UTA MultiBox ® Instruction manual... -
Page 43: Error Message
See Chapter 9 - emergency plan. If there is no beep coming from your vehicle device or you hear 4 beeps in succession, the transaction was not confirmed. You are not driving in compliance with the rules. UTA MultiBox ® Instruction manual... -
Page 44: Emergency Plan In Case Of Malfunction
9. Emergency Plan in Case of Malfunction France, Spain, Portugal, Herrentunnel (Germany), Liefkenshoektunnel (Belgium) Get your UTA MultiBox ID scanned manually or pay with cash or credit card. ® UTA MultiBox ® Instruction manual... - Page 45 • Keep your vehicle device in the aluminium-coated bag you were provided with to avoid being charged more than once. • You can now use this temporary vehicle device on the Belgian toll road network. UTA MultiBox ® Instruction manual...
-
Page 46: Useful Information
10. Useful information • Do not operate your UTA MultiBox while driving! ® • Don’t forget to connect the device to the power supply again later to avoid paying a fine! • If you require spare parts, please contact UTA. -
Page 47: Checklist
11. Checklist Continuous power supply? LED lights up green? Required toll contexts displayed? Registration number correct? Current number of axles correct? Emission class correct? UTA MultiBox ® Instruction manual... -
Page 48: Contact Details
UTA SUPPORT technical service on: Your Toll Service team are happy to help: In the Belgian “Viapass” network: Toll Service +33 (0)4 26 29 75 80 Available around the clock! +49 6027 509-617 support@uta.com www.uta.com UTA MultiBox ® Instruction manual...
