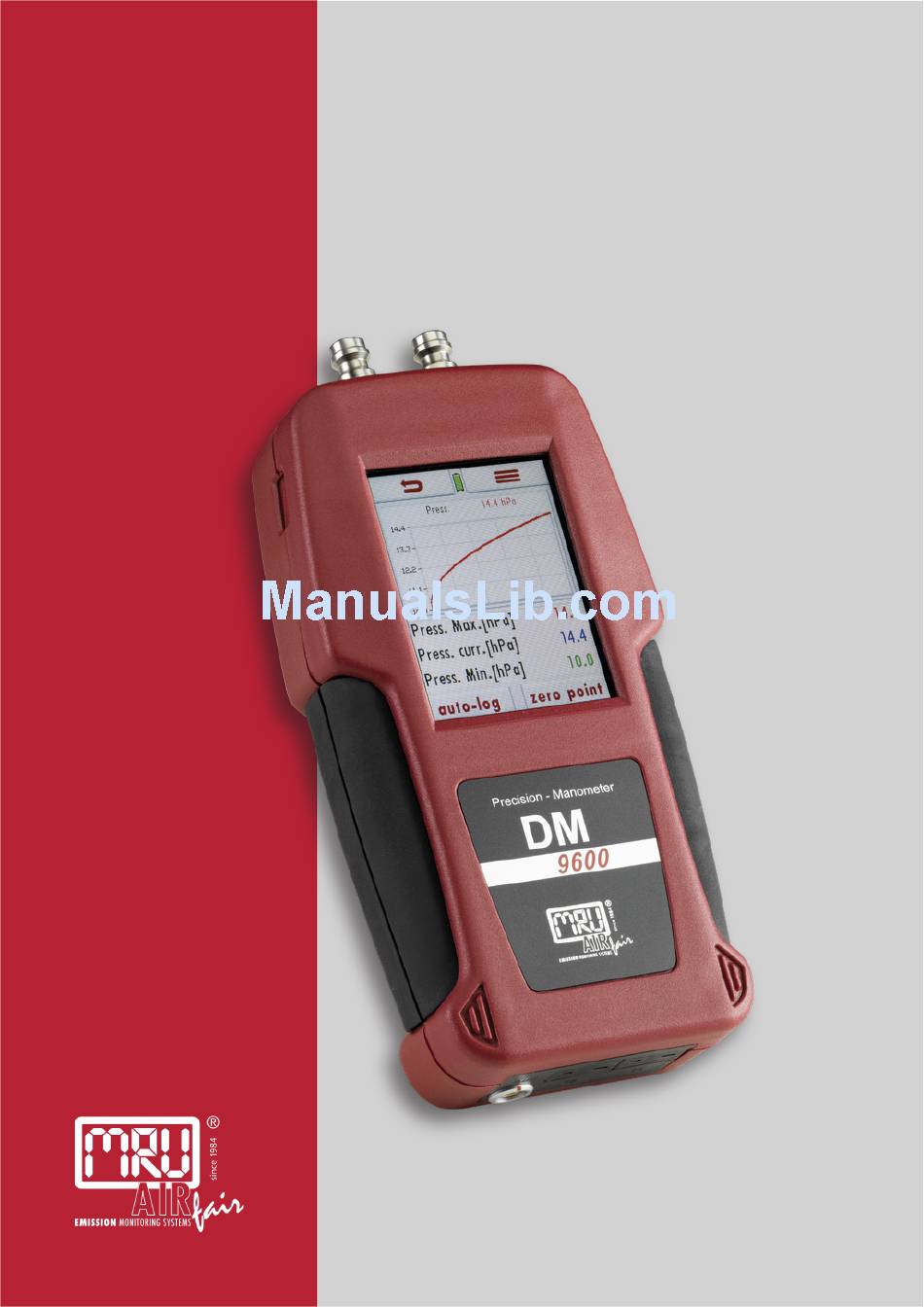

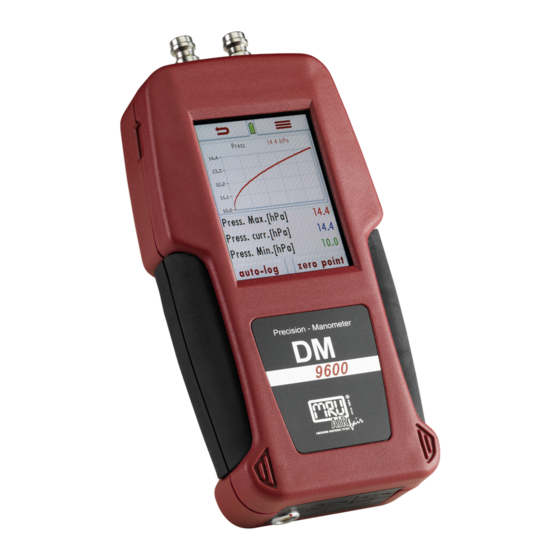

- Page 1 USER MANUAL 9600 9122EN-CHP...
- Page 2 Legal notices / Intellectual property rights comments Original user manual © 2018 by MRU No part of this manual my be published in any form (print, fotocopy, electronic media or any other publication form) without a written approval by the publisher.
-
Page 3: Table Of Contents
6.3.2 Zeroing ............................. 18 6.3.3 Context menu ........................18 Temperature measurement ....................... 19 6.4.1 Performing a measurement ....................19 6.4.2 Kontextmenü ......................... 19 7 Maintenance and care ......................20 Maintenance ............................ 20 Care ..............................20 DM 9600 CHP Version 01 3 / 32... - Page 4 10.2.1 How to install a new firmware to the device .............. 29 10.2.2 Performing and verification of an update ..............29 10.2.3 Performing the Updates ..................... 29 11 Declaration of conformity ......................31 DM 9600 CHP 4 / 32 Version 01...
-
Page 5: Introduction
Introduction Introduction y This manual enables you to understand and safely operate this MRU precision digital manometer DM9600 CHP. y Please read this manual with great vigilant and get familiar with the product before using it. y This analyzer may only be operated by competent personnel and for its intended use. -
Page 6: About Us
Introduction About us The Analyzer is produced by the MRU GmbH in Neckarsulm, Germany (founded in 1984), a medium sized company that specializes in develop- ing, producing and marketing high quality emission monitoring analyz- ers. MRU GmbH produces a wide range of instruments, from standard analyzers up to tailor made industrial analyzers Plant 1: Sales, Service, R&D... -
Page 7: Information For Product And Safety
Information for product and safety Information for product and safety Safety manual All general information and safety precautions of MRU products are listed in the supplied separate safety manual. Therefore this manual must be read and observed before the first use of the instrument. -
Page 8: Description
AUX port IR interface for ext. printer Reset button Micro-SD card slot The Measuring instrument is supplied with hose set with quick coupling on device side and male thread on motor side. DM 9600 CHP 8 / 32 Version 01... -
Page 9: Menu Structure
Yellow symbol - only read (SD-card locked) No symbol - no card in reader Main menu bars Function key, such as return Battery charging condition (Lithium-Ion Battery) Menu structure The measuring instrument has 3 available main menus:: DM 9600 CHP Version 01 9 / 32... - Page 10 This screen will only display installed and available options. Menu Storage: All available storage options will be displayed here. Menu Extras: All other options are displayed here, for example setting to adapt your device. DM 9600 CHP 10 / 32 Version 01...
-
Page 11: Operation
Touch the display Ö Power up? appears. ⏻ f Push the Button. Ö The MRU start screen appears. Ö The start menu appears. Ö The device is ready for use. Switch off 4.3.1 Switch off f Touch the „Context menu“ on the display. -
Page 12: Settings
P-abs hPa / inHg Select the units for temperature Pressure P1 Positive / Negative Logo ON / OFF Druckertyp MRU / HP Bluetooth Android / Ext. Sensor Configuration of extern. sensor DM 9600 CHP 12 / 32 Version 01... -
Page 13: Date And Time
The Bluetooth mode can be viewed and selected in the Bluetooth menu. Please use BT-CL for connections to Android and BT-LE for connections to IOS.. MRU4u The full version of the MRU Bluebottle-Software for free use is available in the Apple App. Store and Google Play Store. DM 9600 CHP... -
Page 14: Measurement Operation
The device is not operable when not within the temperature parameters. After powering up the device will give acoustic signals during warm up. DM 9600 CHP 14 / 32 Version 01... -
Page 15: Performing A Measurement
Interval means, after each interval duration a measurement is made. f Press the button interval to select how frequently you want to save the results. Ö Upon the measuring time the measurements were stored. Measurement time Interval Measurements Storage point DM 9600 CHP Version 01 15 / 32... - Page 16 Please make sure that there is enough storage space available. f Press the start button to start the Auto-Log, it will end automatically after the defined measurement time has elapsed. DM 9600 CHP 16 / 32 Version 01...
-
Page 17: Pressure Measurement
You can place measuring programs ao the empty fields. f Select „Mod name“ and the empty field. f Edit the text with the arrow keys. f And this way procedure with the name of the existing programs. DM 9600 CHP Version 01 17 / 32... -
Page 18: Performing A Measurement
Graphically display starts again Ext. Sensor Configuration of external sensor page + Turn to next page page - Turn to previous page select Physical dimension for Measur- ing (Pressure / Temperature) DM 9600 CHP 18 / 32 Version 01... -
Page 19: Temperature Measurement
– the temperatures T1 and T2 will be displayed as well the temperature difference.. NOTE The measurement accuracy can only be granted with original MRU tem- perature sensors. 6.4.1 Performing a measurement f Connect the temperature sensor on temperature port T1. -
Page 20: Maintenance And Care
The Analyzer needs only low maintenance effort for long value preserva- tion If the analyzer is not being used over a period it is recommended to charge the battery before storing it and then recharge the battery every 4 weeks. DM 9600 CHP 20 / 32 Version 01... -
Page 21: Data Storage
New sites can be generated. Modifications and additions can be trans- ferred using the PC program MRU Win. y Attention: Sites that have been created in the DM9600 will NOT be transferred back to the PC. Only measurement results will be trans- ferred from the DM9600 to the PC which will be identified by the site number. -
Page 22: Sites
Ö The site will be displayed in red and is now editable. f Select the site and edit the text with the arrow keys. f And this way procedure with the other lines DM 9600 CHP 22 / 32 Version 01... -
Page 23: View Sites
You can delete single sites in the menu „Sites administration“ by selecting delete in the context menu, or you can delete all sites at once You will be asked to confirm your intention to delete all sites. DM 9600 CHP Version 01 23 / 32... -
Page 24: Data Transfer Using The Sd-Card (Csv)
(see also 3. + 4. Export of measurements) The DM9600 will mark duplicate site numbers after import. If the same file is imported to the same DM9600 an indication will be displayed in red letters. DM 9600 CHP 24 / 32 Version 01... -
Page 25: Export Csv
In the „menu storage „you select „Memory info” to get information about the available storage capacity of the unit. You will see the number of stored sites (max 500) and the number of stored measurements (max 10.000). DM 9600 CHP Version 01 25 / 32... -
Page 26: Extras
The service values of all installed sensors are displayed here. Please contact your local MRU service partner in case you have a mal- function of your device. It’s always handy to have the device next to you when make a service call, most likely the technician will ask you for these values and the serial number of the device. -
Page 27: Appendix
±0.2 m/s (2<v<10m/s) ±0.5% (v>10m/s) absolute pressure measurement • (requires abs. pressure sensor above Gas sniffer Measuring range CH 5 - 20.000 ppm Overload 100.000 ppm Resolution 1 ppm Response time T90 < 5s DM 9600 CHP Version 01 27 / 32... -
Page 28: Data Communication
A beep every 5 sec- to the room tem- onds perature! Device can’t be Battery discharged. fConnect the device turned on or doesn’t to the battery char- react once powered ger and charge the battery. DM 9600 CHP 28 / 32 Version 01... -
Page 29: Firmware Update
Copy the 1128.fwb file onto the root directory of the SC card f Insert the SD card into the card reader of the device. The SD card con- tact pins must face towards you when you insert them into the device DM 9600 CHP Version 01 29 / 32... - Page 30 What can I do if the old firmware version number is still displayed? Ö Repeat the update procedure. Who can help me if I can’t perform an update? On the MRU-Homepage www.mru.eu you can find the Contact of your local sales office. DM 9600 CHP 30 / 32 Version 01...
-
Page 31: Declaration Of Conformity
Declaration of conformity 11 Declaration of conformity DM 9600 CHP Version 01 31 / 32...
