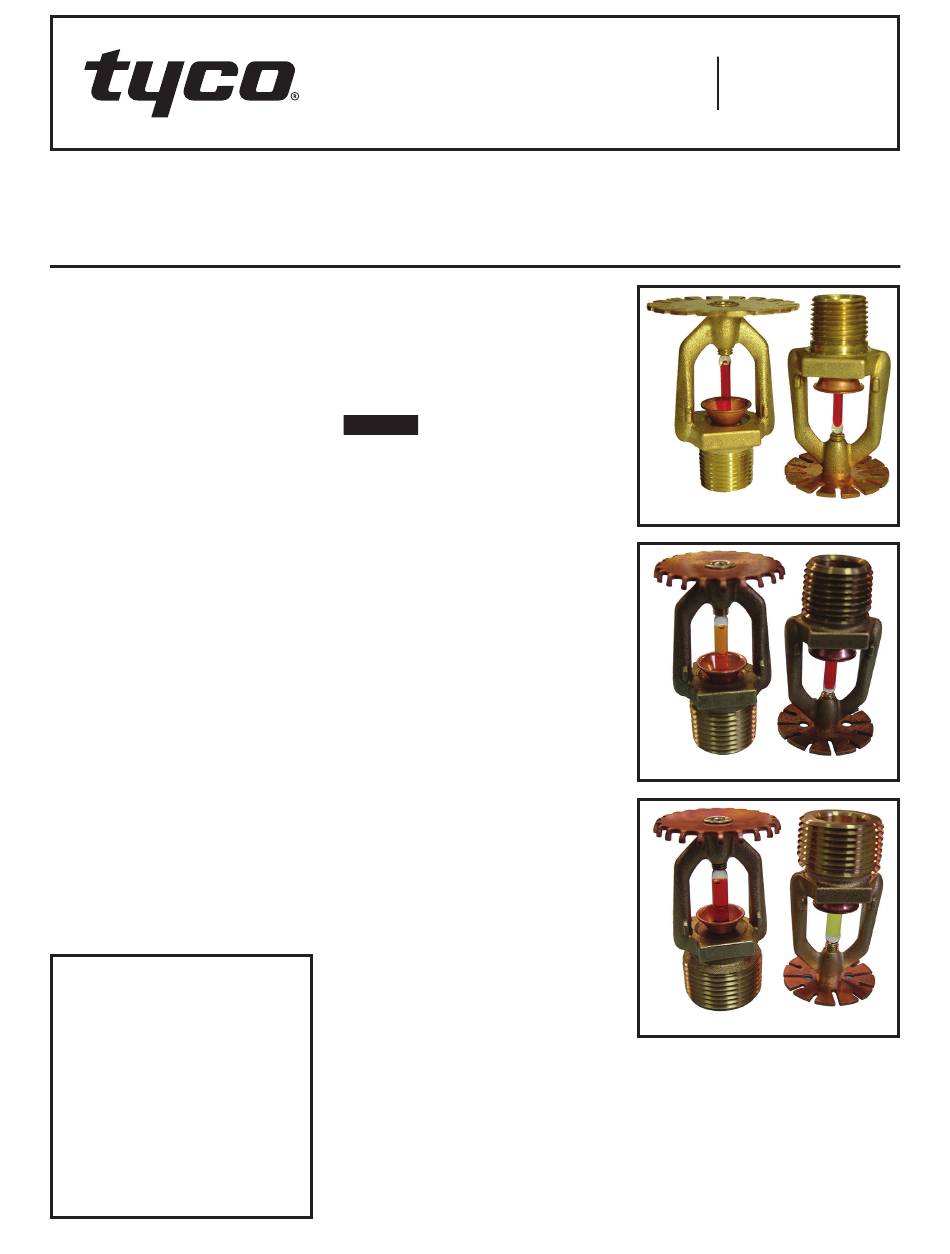

Tyco TY-FRFS Series Manual

Model TY-FRFS, TY-FS Special, and TY-FS
57, 80, and 115 K-factor Upright and Pendent
Flat Spray Sprinklers
General
Description

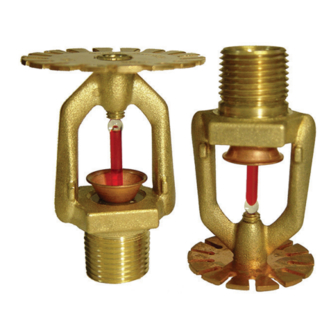

The Model TY-FRFS, TY-FS Special,
and TY-FS, Upright and Pendent, Flat
Spray Sprinklers are intended for instal-
lation in accordance with CEA 4001
Sprinkler Systems Planning and Instal-
lation or EN12845 Automatic Sprin-
kler Systems – Design, Installation
and Maintenance, as applicable. They
produce a flatter spray pattern than
standard spray sprinklers, enabling
them to be used with lower clearance
above the suspended open ceilings
and in racks.
As necessary the K80 and K115, Flat
Spray Sprinklers may be outfitted
with guards, shields, or guards with
shields. The guards may be used in
areas that make the sprinklers suscep-
tible to mechanical or physical damage,
whereas the shields may be used to
help prevent the sprinklers from being
wetted (cold soldered) from water
spray of higher elevation sprinklers.
Table A provides a detailed matrix of
the allowable combinations.
The Model TY-FRFS with its 3 mm
diameter heat sensitive bulb element is
rated quick response, the Model TYFS
Special with its 4 mm diameter heat-
sensitive bulb element is rated special
response, and the Model TY-FS with
its 5 mm diameter heat sensitive bulb
element is rated standard response
"A."
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 8
CEA 4001 Sprinkler Systems Plan-
ning and Installation and EN12845
Automatic Sprinkler Systems –
Design, Installation and Maintenance
permits flat spray sprinklers to be used
in concealed spaces, suspended open
ceilings, and in racks.
NOTICE
Model TY-FRFS, TY-FS Special, and
TY-FS Sprinklers, as well as guard/
shield accessories, described herein
must be installed and maintained in
compliance with this document,as
well as with the applicable standards
recognized by the approval agency, in
addition to the standards of any other
authorities having jurisdiction. Failure
to do so may impair the performance
of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Numbers (SINs)
Model TY-FRFS (3 mm Bulb)
TY1136 – Upright K57
TY1236 – Pendant K57
TY3136 – Upright K80
TY3236 – Pendent K80
TY4136 – Upright K115
TY4236 – Pendent K115
Model TY-FS Special (4 mm Bulb)
TY1146 – Upright K57
TY1246 – Pendent K57
TY3146 – Upright K80
TY3246 – Pendent K80
TY4146 – Upright K115
TY4246 – Pendent K115
Model TY-FS (5 mm Bulb)
TY1156 – Upright K57
TY1256 – Pendent K57
TY3156 – Upright K80
TY3256 – Pendent K80
TY4156 – Upright K115
TY4256 – Pendent K115
MARCH 2020
Worldwide
www.tyco-fire.com
Contacts
Model TY-FRFS
Model TY-FS Special
Model TY-FS
Operation
The glass bulb contains a fluid which
expands when exposed to heat. When
the rated temperature is reached, the
fluid expands sufficiently to shatter the
glass bulb, allowing the sprinkler to
activate and water to flow.
