Tyco TY3133 Manual

Series TY-FRB – 5.6 and 8.0 K-factor
Upright and Pendent Intermediate Level Sprinklers
Quick Response
General
Description

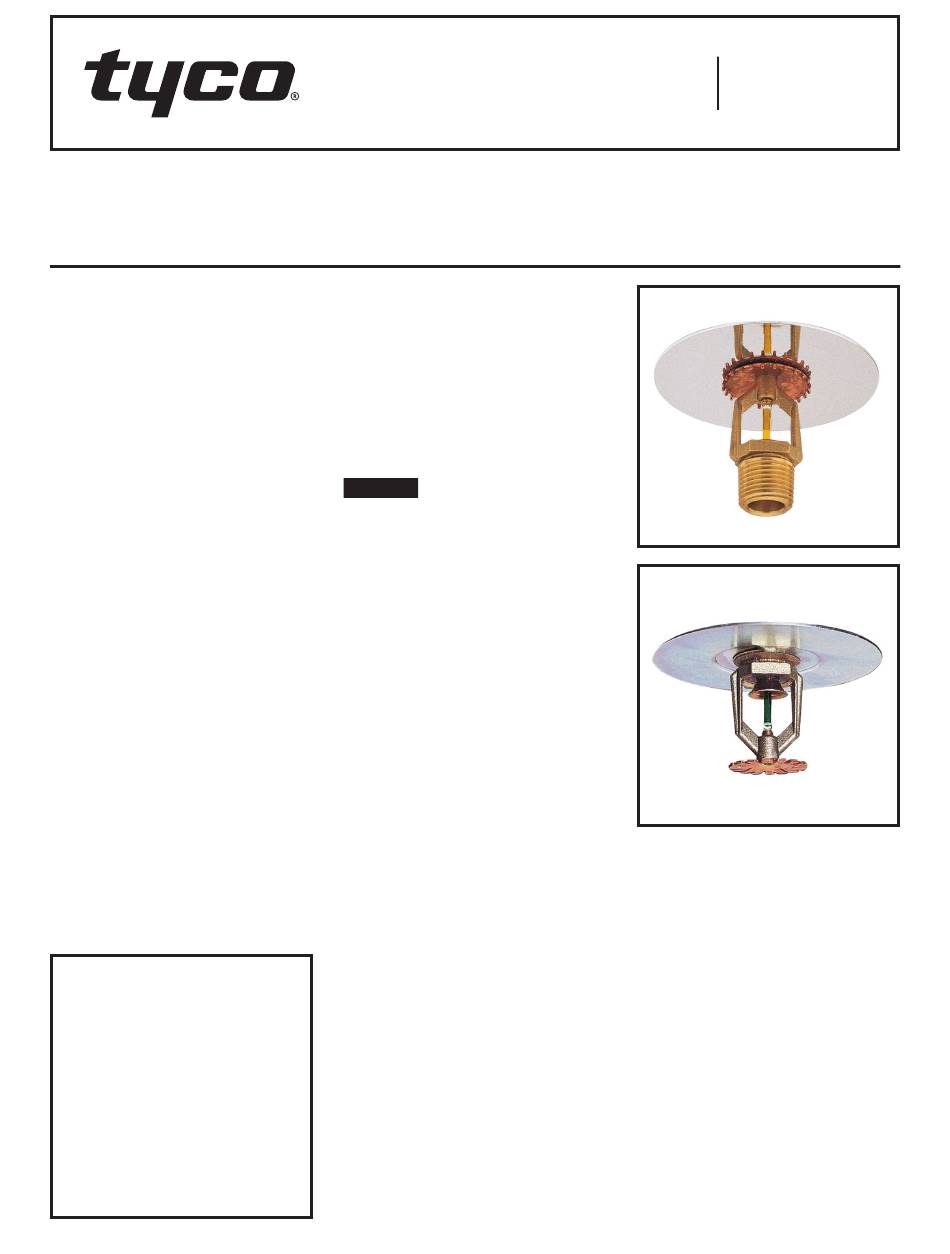

TYCO Series TY-FRB 5.6K and 8.0K
Quick Response Upright and Pendent
Intermediate Level Sprinklers are auto-
matic sprinklers of the quick response
3 mm frangible bulb type. They are
standard spray sprinklers intended for
use in fire sprinkler systems designed
in accordance with the standard instal-
lation rules recognized by the appli-
cable listing or approval agency (e.g.,
UL Listing is based on NFPA require-
ments). Both the pendent and upright
sprinklers produce a hemispherical
water distribution pattern below the
deflector.
Intermediate level sprinklers are pri-
marily designed for use in rack storage
sprinkler systems where their thermally
sensitive elements must be shielded
from the water spray of higher ele-
vation sprinklers that could operate
earlier during a fire. Intermediate level
sprinklers are also used in other appli-
cations such as beneath open gridded
catwalks.
Corrosion-resistant coatings, where
applicable, are utilized to extend the life
of copper alloy sprinklers beyond that
which would otherwise be obtained
when exposed to corrosive atmo-
spheres. Although corrosion-resistant
coated sprinklers have passed the
standard corrosion tests of the appli-
cable approval agencies, the testing is
not representative of all possible cor-
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 6
rosive atmospheres. Consequently,
it is recommended that the end user
be consulted with respect to the suit-
ability of these coatings for any given
corrosive environment. The effects of
ambient temperature, concentration of
chemicals, and gas/chemical velocity,
should be considered, as a minimum,
along with the corrosive nature of the
chemical to which the sprinklers will be
exposed.
NOTICE
The Series T Y-FRB
described herein must be installed
and maintained in compliance with this
document, as well as with the applica-
ble standards of the National Fire Pro-
tection Association (NFPA), in addition
to the standards of any other authori-
ties having jurisdiction. Failure to do so
may impair the performance of these
devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Numbers (SINs)
TY3133 – Upright, 5.6K, 1/2 in. NPT
TY3231 – Pendent, 5.6K, 1/2 in. NPT
TY4133 – Upright, 8.0K, 3/4 in. NPT
TY4231 – Pendent, 8.0K, 3/4 in. NPT
AUGUST 2018
Worldwide
Contacts
Sprinklers
www.tyco-fire.com
TFP356
